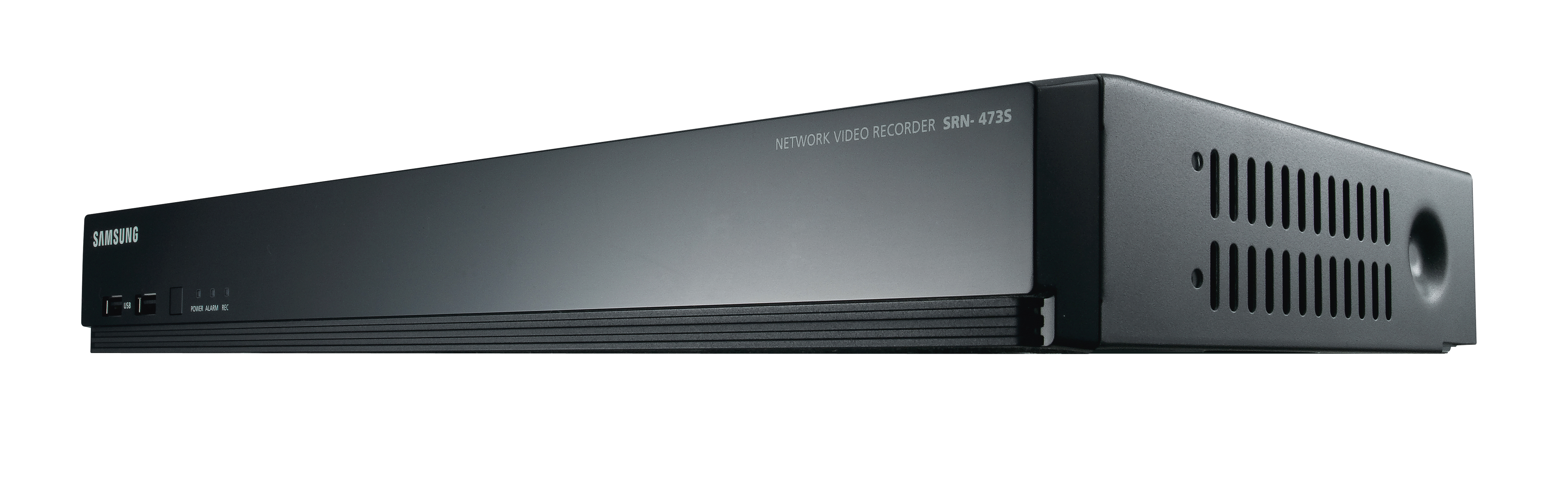

Hanwha Vision SRN-473S-2TB 4 Channel NVR with PoE Switch 2TB
SKU
SRN-473S-2TB
Model No
SRN-473S-2TB
$482.89
Product Highlights
- Up to 4CH 8M supported
- 32Mbps network camera recording
- Plug & play by 4 PoE/PoE+ ports
- Max. 1 HDD
- HDMI / VGA local monitor
Speak to an expert
The SRN-473S is an easy to use Plug & Play 4-channel NVR. The built in PoE/PoE+ network switch allows cameras to be connected directly to the NVR eliminating the need for additional hardware. Equipped with one 1-4Tb hard drive allows for long term recording. An HDMI/ VGA monitor can be connected and controlled with USB mouse/IR remote for easy setup and monitoring.
Hanwha Vision SRN-473S-2TB NVR Features
- Up to 4CH 8M supported: Supports high-resolution recording for clear, detailed video footage.
- 32Mbps network camera recording: Provides ample bandwidth for smooth and reliable video streaming.
- Plug & play by 4 PoE/PoE+ ports: Simplifies installation by allowing direct connection of cameras to the NVR without extra equipment.
- Max. 1 HDD: Supports a single hard drive for efficient storage management.
- HDMI / VGA local monitor: Easy setup and monitoring with direct connections to your display devices.
Hanwha Vision SRN-473S-2TB Detailed Specifications
| Model | Hanwha Vision SRN-473S-2TB |
| Channels Supported | 4 Channels |
| Resolution Supported | Up to 8MP |
| Recording Bandwidth | 32 Mbps |
| Power over Ethernet (PoE) | Yes, through 4 PoE/PoE+ ports |
| HDD Support | 1 x 1-4TB HDD |
| Local Monitor Output | HDMI/VGA |
SKU  | SRN-473S-2TB |
|---|---|
| Manufacturer | Hanwha Vision |
| IP Channels | 4 Channels |
| Harddrive Size | 2TB |
| Protocols | Onvif Protocols |
| Features | Alarm Notification by E-mail, DDNS Functionality, H.264 Compression, MJPEG Compression, Remote PTZ operation supports PTZ reaction presets, Supports PTZ Control, Two-way Audio |
Compression  | H.264, MJPEG |
| Bandwidth | 32Mbps |
| Operating temperature | +0°C ~ +40°C (+32°F ~ +104°F) |
| Dimensions | 360.0 x 44.0 x 159.9mm (14.17" x 1.73" x 6.3") (1U) |
| Voltage | 54V DC / 1.67A |
| Power Consumption | Max. 77W (1 HDD, PoE on), 16W (1 HDD, PoE off) |
| USB | 2ea (Front 2ea) |
| Audio | Out 1ea (RCA, Line) |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Remote PTZ operation supports PTZ reaction presets | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
SRN-473S-Series-Specsheet SRN-473S-Series-Manual
