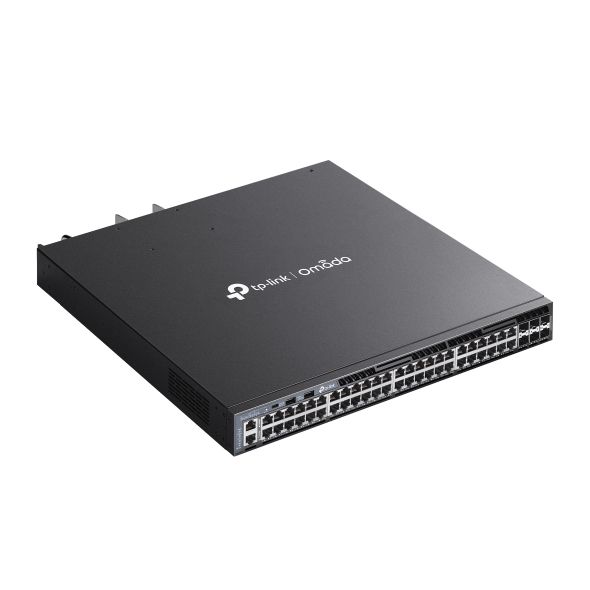

TP-Link SG6654XHP Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots

The SG6654XHP from TP-Link is an advanced L3 managed PoE+ switch, crafted for convergence layer requirements with features like L3 routing, rapid 10 Gbps wired connectivity, stacking, and redundant power supplies. It offers an impressive 1440 W PoE budget,* 48× gigabit RJ45 PoE+ ports, 6× 10 Gbps SFP+ slots, and physical stacking. Combined with centralized management, strong security, and comprehensive management features, SG6654XHP is an ideal, reliable network solution for SMBs, enterprises, and ISPs.

TP-Link SG6654XHP PoE Features

• IEEE 802.3at/af-compliant Power over Ethernet: 48× IEEE 802.3at/af-compliant PoE ports supply up to 1440 W total power to devices, enabling quick setup of wireless access points, surveillance cameras, and IP phones without the need for additional power cabling.
• High-speed Connectivity and Powerful Stacking: 48 gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity, allowing for robust performance and redundancy with up to 8 units stacked.
• Abundant Layer 3 Capabilities: Supports multiple Layer 3 routing protocols including Static Routing, RIP, OSPF, and VRRP, ensuring scalability and efficient routing within a network.
• Highly Available: Optional hot-swappable redundant power supplies and VRRP ensure uninterrupted network operation, while ERPS provides rapid protection and recovery in ring topologies.
• Enhanced Security Functions: Comprehensive security features including ACL support, Dynamic ARP Inspection, and IEEE 802.1X protect against various network threats.
• Omada SDN: Integration with the Omada SDN platform offers centralized cloud management and simplified device management through a single interface, enhancing the overall efficiency of network management.

TP-Link SG6654XHP Detailed Specifications
