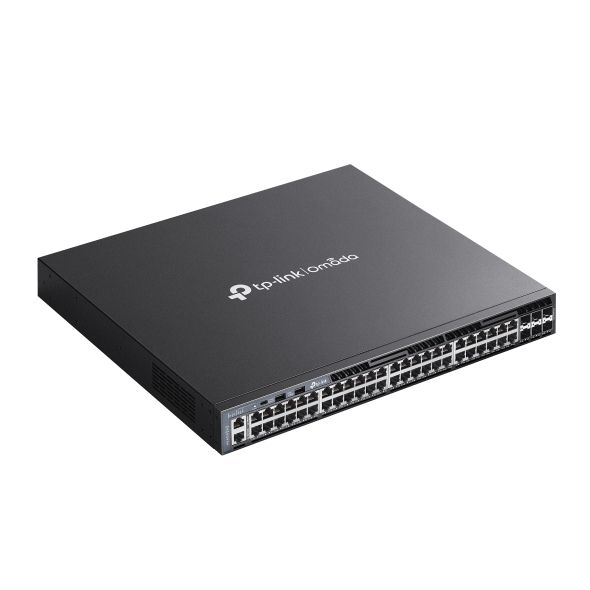

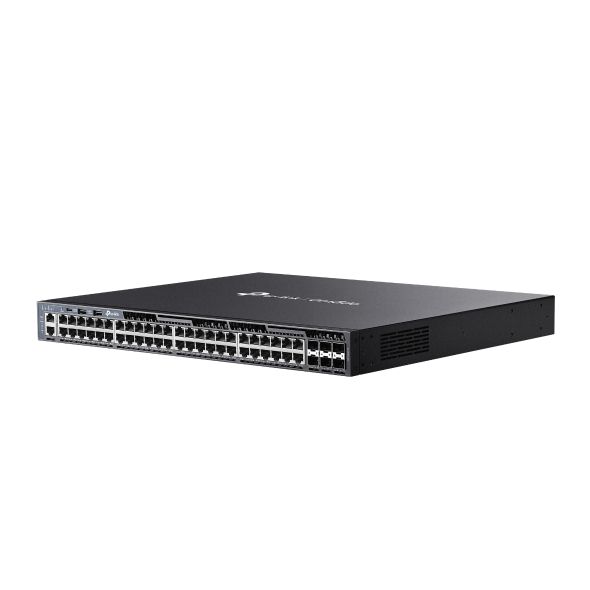

TP-Link SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
SKU
SG6654X
Model No
SG6654X
$1,342.69
Product Highlights
- 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
Speak to an expert
The TP-Link SG6654X is a robust L3 managed switch tailored for high-performance networking, providing exceptional speed, advanced routing capabilities, and enhanced security features. With 48 Gigabit RJ45 ports, 6 SFP+ slots, and versatile management options, this switch is perfect for SMB, enterprise, and ISP environments, ensuring reliability and ease of management.
TP-Link SG6654X High-speed Connectivity and Powerful Stacking
- Ports: 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots - Offers extensive connectivity options for diverse network requirements.
- Switching Capacity: 216 Gbps switching capacity per unit - Ensures high-speed data transmission to meet demanding network needs.
- Physical Stacking: Allows up to 4 units to be stacked, resulting in built-in redundancy and increased performance capacity of up to 864 Gbps.
TP-Link SG6654X Abundant Layer 3 Capabilities
- Routing Protocols: Comprehensive L3 routing protocols - Supports Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and Relay, enabling a highly scalable network.
- Multicast Routing: PIM-DM multicast routing protocol - Facilitates efficient multicast group routing to optimize bandwidth usage.
TP-Link SG6654X Highly Available
- Redundant Power Supplies: Internal fixed redundant power supplies - Guarantees uninterrupted operation and reliability for critical networking functions.
- Network Resilience: VRRP and ERPS support - Ensures rapid protection and recovery, enhancing network resilience in ring topologies.
TP-Link SG6654X Enhanced Security Functions
- ACL Support: Advanced ACL support (IPv4 & IPv6) - Protects against unauthorized access by regulating network traffic.
- Security Measures: Dynamic ARP Inspection and IEEE 802.1X - Strengthens security by preventing various network attacks such as ARP spoofing.
TP-Link SG6654X Omada SDN Integration
- Centralized Management: Centralized cloud management via the Omada system - Streamlines management processes and provides visibility across the entire network.
- Zero-Touch Provisioning: Support for Zero-Touch Provisioning (ZTP) - Simplifies device setup and deployment significantly.
TP-Link SG6654X Detailed Specifications
| Ports | 48× Gigabit RJ45, 6× 10 Gbps SFP+ |
| Switching Capacity | 216 Gbps per unit, 864 Gbps with stacking |
| Layer 3 Features | Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay |
| Redundancy | Fixed dual power supplies, VRRP, ERPS |
| Security | ACL (IPv4 & IPv6), Dynamic ARP Inspection, 802.1X |
| Management | Omada SDN, Web GUI, CLI, SNMP, RMON |
SKU  | SG6654X |
|---|---|
| Manufacturer | TP-Link |
| # of Ports | 48 PORT |
| Data Rate | 10/100/1000 Mbps |
| Management | Managed |
| Form Factor | Rackmount |
| PoE | No |
| Features | ACL, Bandwidth Control, Broadcast Storm, IGMP Snooping, Port Mirroring, QoS, SNMP, VLAN |
