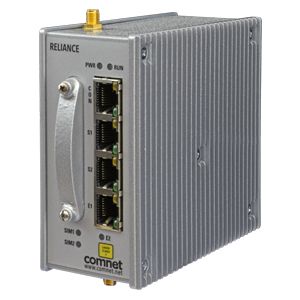

Comnet RL1000GW/12/E/S22 RL1000GW with 2 x RS-232 and 1 x 10/100 Tx, 12/24V DC

The Comnet RL1000GW/12/E/S22 is a substation-rated and industrially hardened layer 3 router/gateway designed for mission-critical applications. Its robust SCADA-aware security firewall ensures high-level cyber-security in environments with significant electromagnetic interference and voltage surges. This compact, DIN-rail mountable solution is ideal for limited spaces, providing secure communications for remote electrical utility sites and various industrial applications.

Comnet RL1000GW/12/E/S22 Unique Features

• Compliance Standards: Fully compliant with IEC 61850-3 and IEEE 1613 Class 2, ensuring reliability in electrical utility substations and traffic signal control equipment.
• Cyber-Security Protection: Designed for NERC-CIP-5 and NERC-CIP-014 compliance, offering advanced protection for all network applications.
• Compact Size: Perfect for installations where space is restricted, enhancing flexibility and installation options.
• Optional Cellular Modem: Features an internal 2G/3G/4G LTE modem with dual SIM slots for improved network reliability and availability.
• Flexible Serial Interface: Supports 2 RS-232 ports or combines RS-232 with 4-wire RS-485 serial data for versatile communication options.
• SFP Uplink Port: An optional high-speed 100/1000 Mbps SFP port allows for seamless connectivity to your network.
• Advanced Security Suite: Features a Per Port Deep Packet Inspection firewall that is SCADA-aware and supports essential protocols for compliance with NERC-CIP-5.
• Network Learning Capability: Enables users to easily create effective SCADA firewall rules for enhanced security.
• IEEE 802.1X Control: Port-based network access control for enhanced security management.
• Granular Access Control: L-2/3/4 ACLs and layer 2/3 VPN with IPsec provide stringent control over user access and communication.
• Secure VPN Connection: Utilizes IPsec VPN with X.509 certificates over cellular or fiber-optic networks for secure communications.
• Integrated IP Routing: Ethernet layer 3 IP routing with built-in VPN functionality for seamless network integration.
• Fault Notification: Syslog and SNMP traps provide detailed fault and event notifications for proactive management.
• Environmental Resilience: Operates in extreme temperatures ranging from -40? C to +85? C, with optional conformal coating for humidity resistance.
• Rugged Design: Built with a sturdy metal housing, DIN-rail mountable, and rated IP-30 for ingress protection.
• Maintenance-Free Cooling: Active cooling is eliminated through natural convection, reducing maintenance issues.

Comnet RL1000GW/12/E/S22 Detailed Specifications
