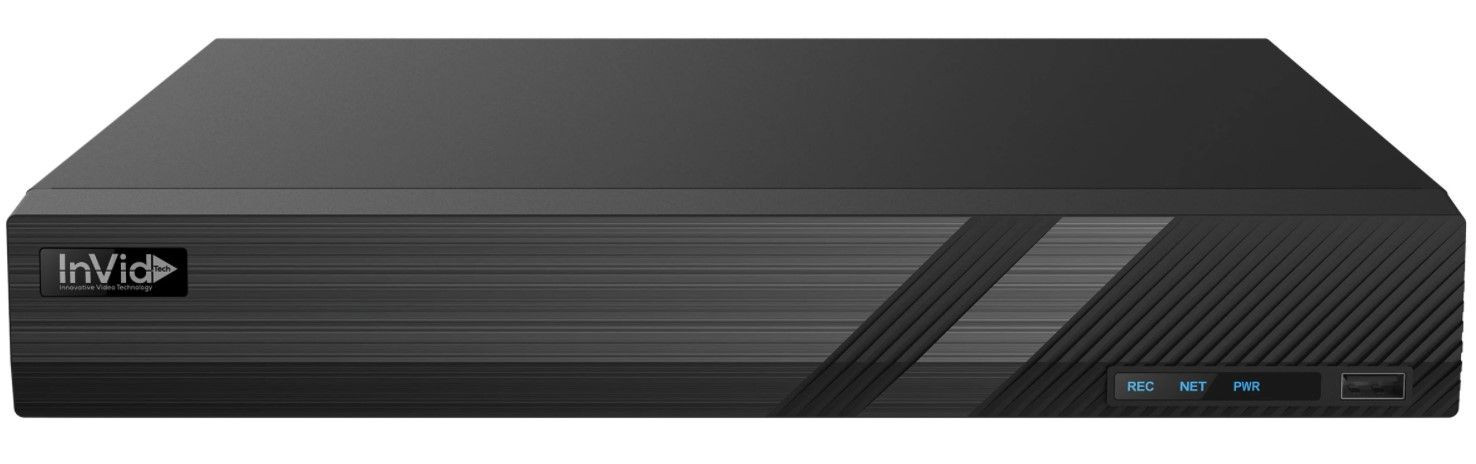

InVid PN1B-4X4NH 4 Channel NVR with 4 Plug & Play Ports, No HDD
SKU
PN1B-4X4NH
Model No
PN1B-4X4NH
$213.00
Product Highlights
- Up to 8 Megapixel Resolution Recording
- 40 Mbps Bit Rate Input
- Supports up to 4 channel Simultaneous playback
- Smart Analytic Support
- Local HDMI main monitor output with 4K support
Speak to an expert
The PN1B-4X4NH from InVid is a cutting-edge 4 channel network video recorder designed to provide superior performance with 4 plug & play ports. Featuring impressive recording capabilities, high bit rate input, and versatile playback options, this NVR is perfect for both personal and professional surveillance needs.
InVid PN1B-4X4NH Key Features
- Resolution: Up to 8 Megapixel recording for crystal clear video quality.
- Bit Rate: 40 Mbps input ensures high-quality video streams without lags.
- Playback: Supports 4 channel simultaneous playback, allowing for efficient multitasking.
- Smart Analytic Support: Enhances surveillance efficiency with intelligent video analysis.
- HDMI Output: Local HDMI output with 4K support for stunning visual display.
- VGA Output: Local VGA output supports up to 1080p resolution for compatibility.
- True P2P Connectivity: QR Code connect feature simplifies remote access and management.
- Video Search Options: Smart Search functionality enables quick retrieval of specific footage.
- Codec Support: Compatible with H.265S/ H.265+/ H.265/ H.264 codecs for streamlined video compression.
- Drive Bay: 1 hard drive bay provides ample storage capability (HDD not included).
- Central Management Software: Free CMS facilitates easy management of multiple devices.
- Mobile Apps: Free iOS & Android apps allow remote viewing from smartphones & tablets.
- MAC Client: Free software available for MAC users for enhanced accessibility.
InVid PN1B-4X4NH Specifications
| Model | PN1B-4X4NH |
| Type | 4 Channel NVR |
| Max Resolution | 8 Megapixel |
| Bit Rate | 40 Mbps |
| Playback Channels | 4 Channels Simultaneous |
| HDD Bays | 1 (No HDD included) |
| HDMI Output | 4K support |
| VGA Output | Up to 1080p |
| Codec Compatibility | H.265S/ H.265+/ H.265/ H.264 |
| Smart Search | Yes |
| Remote Access | True P2P with QR Code |
| CMS | Free Central Management Software |
| Mobile App | Free for iOS & Android |
| MAC Client | Free available |
SKU  | PN1B-4X4NH |
|---|---|
| Manufacturer | InVid |
| NDAA | Compliant |
| IP Channels | 4 Channels |
| Harddrive Size | No HDD |
| Protocols | InVid Protocols, ONVIF protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, Supports the Full HD Output (HDMI), Two-way Audio |
Resolution  | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
| Compression | H.265S /H.265+ / H.265 / H.264 |
| Bandwidth | Incoming/Outgoing Bandwidth: 40/40 (Mbps) |
| Operating temperature | 14°F ~122°F (-10 ~ 50 ℃)10% ~ 90% humidity |
| Dimensions | 11.8 x 9.8 x 1.7 In (300 × 249 × 45 mm) |
| Voltage | DC 48V/1.25A |
| Power Consumption | ≤ 10W ( without HDD ) |
| Network | RJ 45 × 1 (10/100/1000Mbps) |
| USB | USB 2.0 × 2 |
| Audio | RCA × 1 |
| Compression Supported | Yes |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
