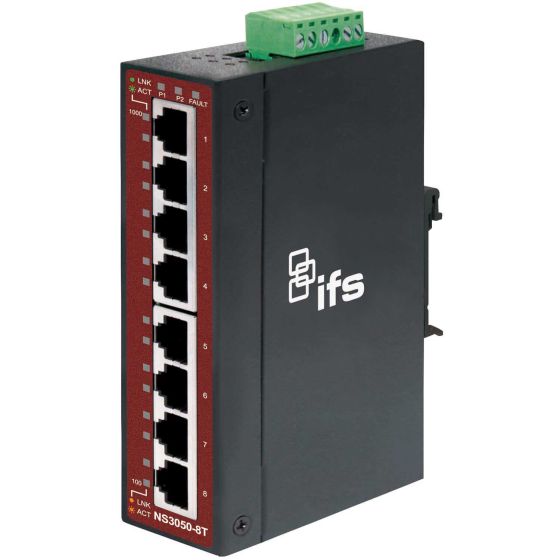

GE Security Interlogix NS3050-8T Industrial 8-Port 10/100/1000BASE-T Unmanaged Ethernet Switch

The GE Security Interlogix NS3050-8T is an advanced 8-Port Unmanaged Industrial Ethernet Switch designed for seamless integration into small IP systems. With high-performance 10/100/1000Mbps Ethernet ports and plug-and-play functionality, it ensures reliable and efficient networking with minimal setup. The compact and rugged IP-30 rated metal case supports both DIN-rail and wall mounting, making it versatile for various applications. This switch also features a robust architecture that minimizes packet loss and delivers superb data transfer performance, ensuring a dependable network connection.

GE Security Interlogix NS3050-8T Switch Features

• 8-Port 10/100/1000Base-TX: High-speed connectivity for efficient data transmission across your network.
• Auto MDI/MDI-X: Automatically detects and configures the connection type, simplifying installation.
• Auto-negotiation: Ensures optimal speed and performance without manual configuration.
• Unmanaged plug and play installation: No programming needed, making setup quick and hassle-free.
• Store-and-Forward switching architecture: Provides wire-speed filtering and forwarding for faster network performance.
• Packet loss reduction: Features back pressure for half-duplex and IEEE 802.3x PAUSE frame-flow control for full-duplex.
• Integrated address-lookup engine: Supports up to 2K absolute MAC addresses for efficient data handling.
• CSMA/CD Protocol: Ensures streamlined data transmission and collision detection.
• Automatic source-address learning and aging: Enhances network efficiency by managing MAC address entries automatically.
• Up to 9K bytes packet size (Jumbo Frames) support: Allows the switching of larger packets for improved network performance.
• Slim IP-30 metal enclosure: Provides durable protection in challenging environments.
• DIN-rail or wall-mounting: Offers flexible installation options to suit various needs.
• 24~48VDC or 24VAC Operation: Flexible power options for diverse operating scenarios.
• Redundant power with reverse-polarity protection: Ensures reliability and safety in power supply management.
• Alarm relay output for power-failure alert: Provides immediate notifications of power issues for proactive management.
• EEE Green Network Eco-Power Technology: Eco-friendly design helps reduce energy consumption.
• Voltage/surge suppression: 6000VDC protection for both power lines and Ethernet safeguards against voltage spikes.
• Complies with IEC60068-2-xx standards: Ensures resilience against free-fall, shock, and vibration, making it ideal for rugged applications.
• Wide operating temperature range of -40ºC ~ +75ºC: Ensures operational stability in extreme environmental conditions.
