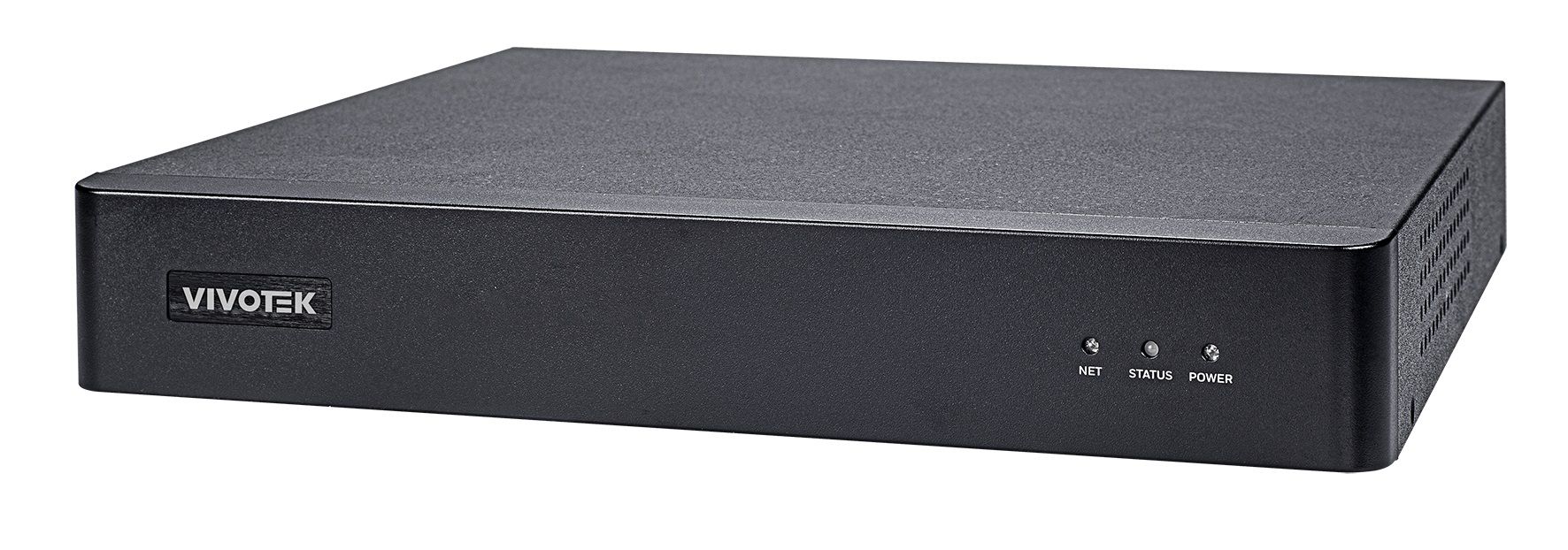

Vivotek ND9213P 4 Channels Embedded PoE NVR
- H.265, up to 8MP Camera Supported
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- 802.3at/af PoE with PoE Management
- 4K Video Output Display for Clear and Detailed Monitoring
- New Web UI Available for Plug-in Free Browser (Chrome)
VIVOTEK’s ND9213P is a H.265 Linux-based standalone NVR that supports up to 4K IP camera video decoding and local 4K video display. With advanced H.265 compression technology, users are able to experience Full HD quality video while expending less HDD capacity than H.264.
The NVR features embedded 4x 802.3 at/af PoE ports to provide users easy and convenient IP camera installation, and also supports remote and mobile access via VIVOCloud and iViewer apps for both iOS and Android devices. The VIVOCloud app provides instant push notification and direct video playback functions when triggered by an alarm notification and provides users a flexible and intelligent NVR for seamless use in small to medium sized video surveillance applications.
Features
- H.265, up to 8MP Camera Supported
- VIVOTEK Smart VCA Camera Supported for Event Search & Recording
- 802.3at/af PoE with PoE Management
- 4K Video Output Display for Clear and Detailed Monitoring
- New Web UI Available for Plug-in Free Browser (Chrome)
- Trend Micro IoT Security & Cybersecurity Management
- Crowd Control Solution
- VIVOCloud App & VAST 2
- Made in Taiwan
SKU  |
ND9213P |
|---|---|
| Manufacturer |
Vivotek |
| NDAA | Compliant |
| IP Channels |
4 Channels |
| Harddrive Size |
No HDD |
| Protocols |
Vivotek Protocols, ONVIF Protocols |
| Features |
Audio, H.264 Compression, H.265 Compression, HD Resolution, MJPEG Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Watermark Capability |
Resolution  |
3840x2160, 1920x1080, 1280x720 |
| Compression |
H.265, H.264, MJPEG |
| Operating temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Dimensions |
263.6 (W) x 247 (D) x 43.3 (H) mm |
| Voltage |
DC 48V/2A |
| Power Consumption |
Max. 96 W |
| Network | 10/100Mbps Ethernet (RJ-45) x1 |
| USB |
Back: USB 3.0 x1, USB 2.0 x1 |
| Post-alarm Recording | Post-Record: 20 (Max. 300) |
| Pre-alarm Recording | Pre-Record: 5 (Max. 10) |
| Audio |
3.5 Phone jack audio output x1, 3.5 Phone jack audio input (reserv ed) x1 |
| HD Resolution |
Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Watermark Capability | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| MJPEG Compression | Yes |
