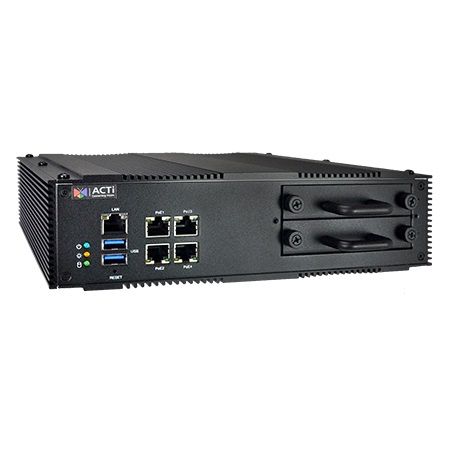

ACTi MNR-110P 4-Channel 2-Bay Desktop Standalone NVR with 4-port PoE Connectors

SKU
MNR-110P
Model No
MNR-110P
$1,502.55
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2-bay Desktop Standalone NVR
  • Maximum Number of Video Devices: 4
  • Free License: 4
  • Built-in PoE Connectors (4 ports)
  • Event trigger, response and notification

The MNR-110P from ACTi is a robust 4-Channel 2-Bay Desktop Standalone NVR designed for seamless video management. With features like 4-port PoE Connectors and a high recording throughput of 300 Mbps, it ensures efficient operation and reliable performance. This NVR includes advanced capabilities such as shock detection, remote access, and synchronized playback, making it an ideal choice for comprehensive security solutions.

ACTi MNR-110P Camera Features

  • 2-Bay Desktop Standalone NVR: Facilitates easy setup and installation, allowing for storage expansion as needed.
  • Maximum Number of Video Devices: 4: Supports up to four cameras, providing versatile monitoring options for various environments.
  • Free License: 4: Includes four free licenses for cameras, reducing additional costs for users.
  • Built-in PoE Connectors (4 ports): Simplifies installation by powering devices directly through the network cable.
  • Event trigger, response and notification: Enhances security and situational awareness by enabling real-time alerts based on defined events.
  • Web Client, Mobile Client: Offers remote access to video feeds, providing convenience and flexibility for users on-the-go.
  • Video export formats: RAW, AVI: Supports multiple video formats for easy sharing and integration with other systems.
  • Location-based management with e-Map: Enables efficient management of multiple cameras through a visual geographic interface.
  • Hi3536, 4GB: Powerful processing capabilities ensure smooth operation and high-quality video playback.

ACTi MNR-110P Detailed Specifications

FeatureDetails
Channels4
Storage Type2-Bay
Recording Throughput300 Mbps
PoE Ports4
Shock DetectionBuilt-in G-sensor
Video OutputHDMI and VGA
Remote AccessYes
Video ExportUSB, formats: RAW, AVI
Synchronized Playback4-Channel
Free Licenses4
External Storage SupportiSCSI
Plug & PlayWith Built-in DHCP Server
DC Voltage8-36V
CertificationEN50155
Audio SupportYes
Wireless CapabilityOptional
SKU  MNR-110P
Manufacturer  ACTi
IP Channels  4 Channels
Harddrive Size  No HDD
Protocols  ACTi Protocols, Onvif Protocols
Features  Audio, Centralized E-map, Compression Supported, DDNS Functionality, Export to AVI or ASF File Format, H.264 Compression, H.265 Compression, HDMI Output (720p/1080p), MJPEG Compression, Remote PTZ operation supports PTZ reaction presets, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio
Resolution    1080p
Compression    H.265, H.264, MJPEG
Operating temperature   0°C ~ 40°C (32°F ~ 104°F)
Dimensions  (W x H x D): 135.4mm x 115.3mm x 251.8mm (5.3" x 4.5" x 9.9")
Voltage  DC 48V
Power Consumption  Maximum 30 Watts per port
USB    2-Port USB 2.0, 1-Port USB 3.0
Supported Resolutions    HDMI: 1080p, 4K2K
Audio    2-way, Line-in, Line-out
Compression Supported    Yes
Centralized E-mapYes
DDNS FunctionalityYes
Export to AVI or ASF File FormatYes
HDMI Output (720p/1080p)Yes
Remote PTZ operation supports PTZ reaction presetsYes
Supports the Full HD Output (HDMI)Yes
Two Way Audio  Yes
Supports PTZ ControlYes
H.264 CompressionYes
H.265 CompressionYes
MJPEG CompressionYes
