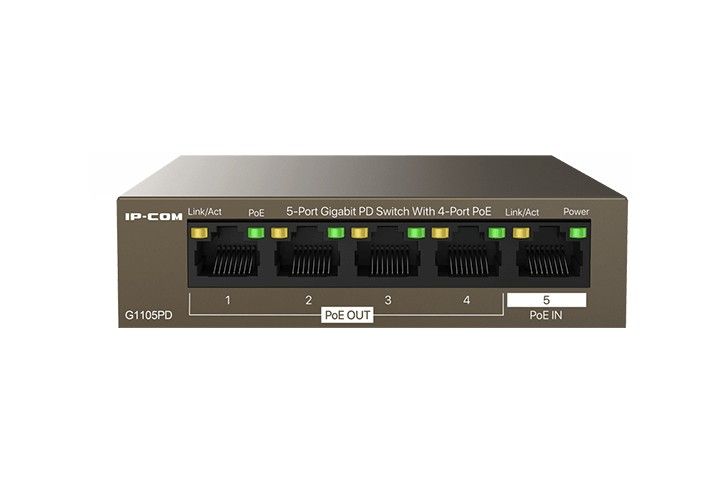

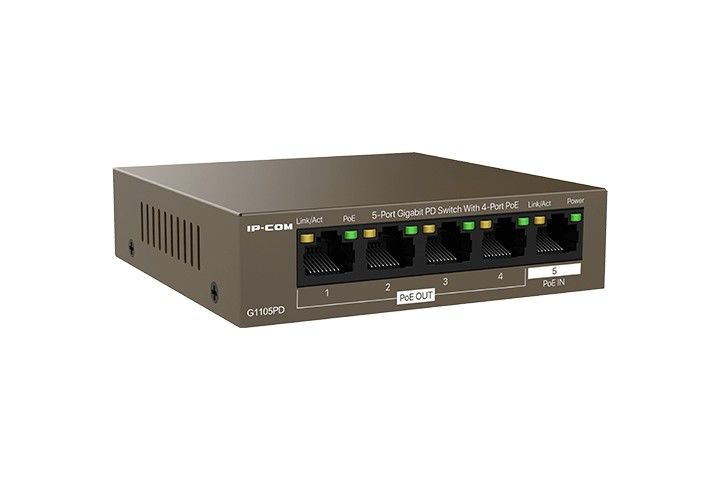

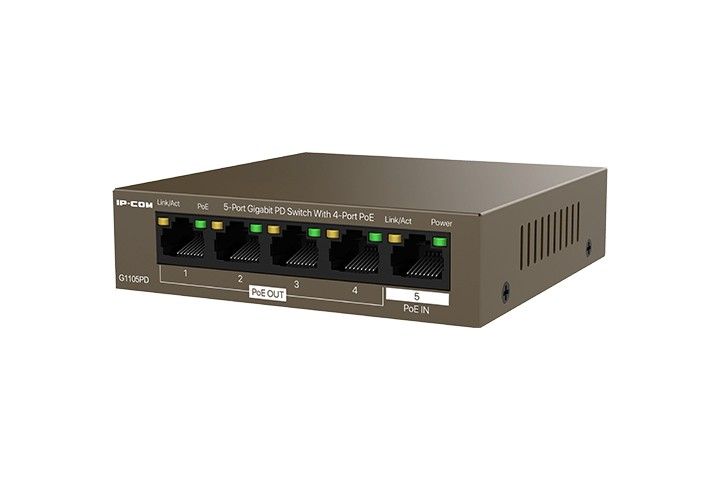

IP-COM G1105PD 5-Port Gigabit PD Switch With 4-Port PoE

Featuring low cost, high performance and plug & play, the PoE switch G1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.

IP-COM G1105PD PoE Switch Features

• Five 10/100/1000 Mbps auto-negotiation ports: Achieve fast and reliable network connectivity for various devices.
• Port 5 supports power supply by a PSE compliant with IEEE 802.3af/at: Provides flexible power options, making setup easier for PoE devices.
• Ports 1 - 4 support power supply to low-power PDs compliant with IEEE 802.3af: Efficiently powers devices such as IP cameras and APs, reducing installation complications.
• The switch supports auto MDI/MDIX: Simplifies the network structure and maintenance with automatic cable detection.
• The non-blocking wire-speed forwarding function: Guarantees the smooth operation of network applications without data loss.
• Full-duplex flow control and half-duplex back pressure control: Prevents frame loss caused by port blocking during heavy loads.
• The switch supports the store-and-forward transfer mode: Manages data traffic efficiently with a 2 K MAC address table for better network performance.
• The switch supports 9K jumbo frame: Enhances the forwarding rate of large files, ideal for high-bandwidth applications.
• The switch supports IP camera connection: Ensures smoothness and clearness of monitoring videos for effective surveillance.

IP-COM G1105PD Detailed Specifications
