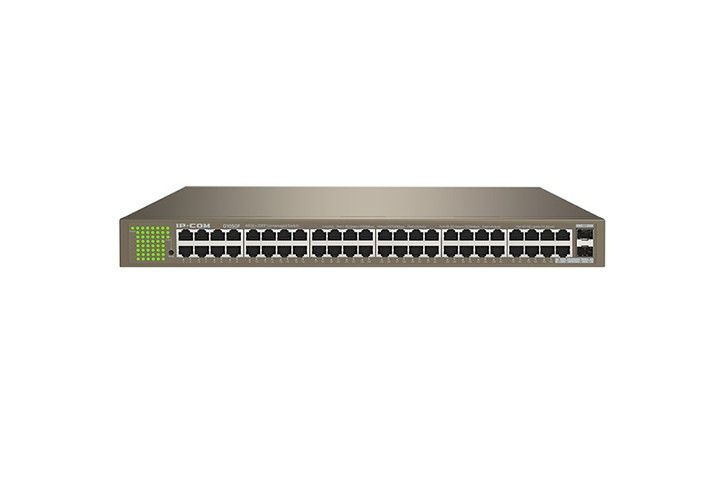

IP-COM G1050F 48GE+2SFP Unmanaged Switch
- Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards
- Provide 48 10/100/1000 Mbps Base-T Ethernet ports and support auto MDI/MDIX
- Provide 2 independent 1000 Mbps Base-X SFP ports and support 20 km long-distance networking
- Support 16K MAC address table and MAC address auto-learning
- Support full duplex IEEE 802.3x flow control and half duplex back pressure flow control
Developed by IP-COM, G1050F is a Gigabit unmanaged Ethernet switch designed for establishing wired networks of high density and high speed in such scenarios as enterprises, parks, schools, and internet cafes, providing a simple, easy, cost-effective, and rapid internet access solution for video surveillance and SMBs' networking. With 48 10/100/1000 Mbps RJ45 ports, and 2 independent Gigabit SFP slots that can be paired with IP-COM's SFP modules, this switch can be used to deploy a long-distance network up to 20 km. Its full-duplex transmission rate can reach 2000 Mbps, ensuring the timely transmission of large files and smoothness of videos. Its one-key VLAN function can isolate broadcast storms. Its integrated professional lightning protection circuit offers 6 kV lightning protection for the built-in power supply and all Ethernet ports, ensuring the stability and reliability of the switch. The switch supports desktop mounting, rack mounting and wall mounting, and features a 1U 19-inch standard rack-mount shell design and plug & play function. With these advantages, it is an ideal choice for deploying a cost-effective and high-speed network.
IP-COM G1050F Camera Features
Features
- Comply with Standards: Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x for universal compatibility.
- Port Availability: Provides 48 10/100/1000 Mbps Base-T Ethernet ports and supports auto MDI/MDIX, making connections flexible and straightforward.
- Long-Distance Networking: Features 2 independent 1000 Mbps Base-X SFP ports supporting networking distances up to 20 km, ideal for expansive setups.
- High MAC Address Support: Supports a 16K MAC address table and automatic MAC address learning for efficient device management.
- Flow Control: Supports full duplex IEEE 802.3x flow control and half duplex back pressure flow control, enhancing transmission reliability.
- Unblocked Wire Speed Forwarding: Offers unblocked wire speed forwarding for all ports, ensuring optimal performance across devices.
- Large Buffer Queue: Comes with a 12Mb large buffer queue for smooth data transmission.
- Lightning Protection: Integrated professional lightning protection circuit provides 6 kV protection for the built-in power supply and Ethernet ports, enhancing longevity.
- One-Key VLAN Function: Simplifies network management by effectively isolating broadcast storms with a single button push.
- Rack-Mount Design: Features a 19-inch/1U standard rack-mount shell design, providing versatile mounting options suitable for various environments.
IP-COM G1050F Detailed Specifications
| Feature | Details |
|---|---|
| Standards Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Ports | 48 x 10/100/1000 Mbps Base-T Ethernet, 2 x 1000 Mbps Base-X SFP |
| Long-Distance Support | Up to 20 km via SFP |
| MAC Address Table | 16K, with auto-learning |
| Flow Control | Full duplex IEEE 802.3x, half duplex back pressure |
| Performance | Unblocked wire speed forwarding |
| Buffer Queue | 12Mb |
| Lightning Protection | 6 kV for built-in power supply and ports |
| VLAN Support | One-key function for broadcast storm isolation |
| Mounting Type | Rack mount, desktop, or wall mount (19-inch/1U design) |
SKU  | G1050F |
|---|---|
| Manufacturer | IP-COM |
| # of Ports | 48 PORT |
| Data Rate | 10/100/1000 Mbps |
| Management | Unmanaged |
| Form Factor | Rackmount |
| Features | Bandwidth Control, Broadcast Storm |
