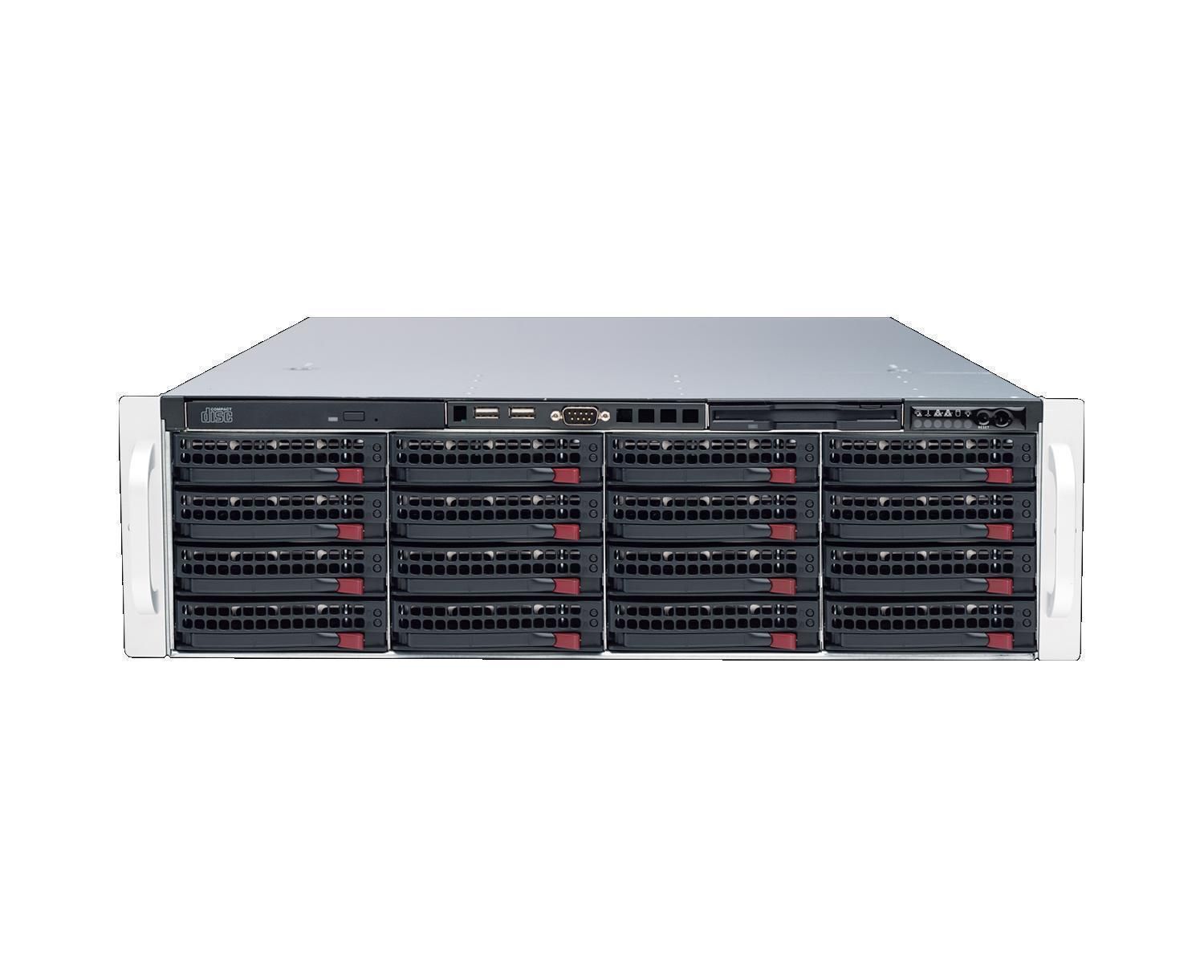

Digital Watchdog DW-BJER3U60T-LX 128 Channels Blackjack E-Rack Linux 3U NVR, 60TB
SKU
DW-BJER3U60T-LX
Model No
DW-BJER3U60T-LX
was $13,482.15 Special Price $12,011.37
Product Highlights
- Storage Options: 4 - 144TB Internal Storage
- Record up to 128 IP Cameras with Total Throughput of 600Mbps
- Hot-Swappable HDDs
- Data Redundancy RAID-5, Redundant Power Supply
- Local Monitoring Outputs Ports
Speak to an expert
The Digital Watchdog DW-BJER3U60T-LX Blackjack E-Rack NVR is a powerful, enterprise-grade solution designed to manage large surveillance operations with ease. Capable of recording up to 128 2.1mp 1080P cameras at 30fps, it provides a robust 600 Mbps throughput and extensive storage capabilities of up to 144TB. With advanced features like RAID 5 data protection, dual stream recording, and cross-platform connectivity, this NVR ensures reliable performance, security, and flexibility for any surveillance needs.
Digital Watchdog DW-BJER3U60T-LX Unique Features
- Storage Options: 4–144TB Internal Storage for extensive video retention.
- Record Capacity: Capable of recording up to 128 IP Cameras with a total throughput of 600Mbps, ensuring high quality without compromises.
- Hot-Swappable HDDs: Allows for easy replacement without downtime, enhancing operational efficiency.
- Data Redundancy: Provides RAID-5 data protection and a redundant power supply to keep data safe.
- Local Monitoring Outputs: Equipped with various output ports for easy local monitoring.
- Dual Network Ports: Ensures network reliability and offers redundancy.
- Linux® OS: Runs on a dedicated SSD, ensuring fast and secure operation.
- DW Spectrum™ Integration: Hosts powerful software for setup, configuration, monitoring, and recording.
- Flexible Licensing: One-time recording license charge, fully transferable between cameras and encoders without annual fees.
- Scalability: Simple enterprise scalability allows for easy expansion to meet growing demands.
- Auto Device Discovery: Streamlines setup and reduces installation time.
- Dual Stream Recording: Offers flexible recording options to optimize bandwidth and storage use.
Digital Watchdog DW-BJER3U60T-LX Detailed Specifications
| Model | DW-BJER3U60T-LX |
| Camera Support | Up to 128 Cameras |
| Video Resolution | 2.1mp 1080P |
| Recording Frame Rate | 30fps |
| Throughput | 600 Mbps |
| Storage Capacity | 4–144TB HDD |
| Processor | Intel® i7® |
| Memory | 8GB |
| Operating System | Linux® on SSD |
| Auto Reboot | Scheduled for performance optimization |
| Warranty | Standard manufacturer warranty |
SKU  | DW-BJER3U60T-LX |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 60TB |
| Protocols | Digital Watchdog Protocols, Onvif Protocols |
| Features | Alarm Notification by E-mail, Audio, Centralized E-map, H.264 Compression, HD Resolution, MJPEG Compression, MPEG-4 Compression, Redundant Power |
Resolution  | HD 1080p |
| Compression | MJPEG , MPEG4 , H.264 |
| Operating temperature | 10°C – 35°C (50°F – 95°F) |
| Dimensions | 648mm L x 437mm W x 132mm H (25.5" L x 17.2" W x 5.2" H) |
| Power Consumption | 1000W |
| Network | 1000 Mbps (2x) DUal NIC Card |
| Memory | 16GB (8x2 Dual Channel) |
| Redundant Power | Yes |
| HD Resolution | Yes |
| Alarm Notification by E-mail | Yes |
| Centralized E-map | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
| MPEG-4 Compression | Yes |
