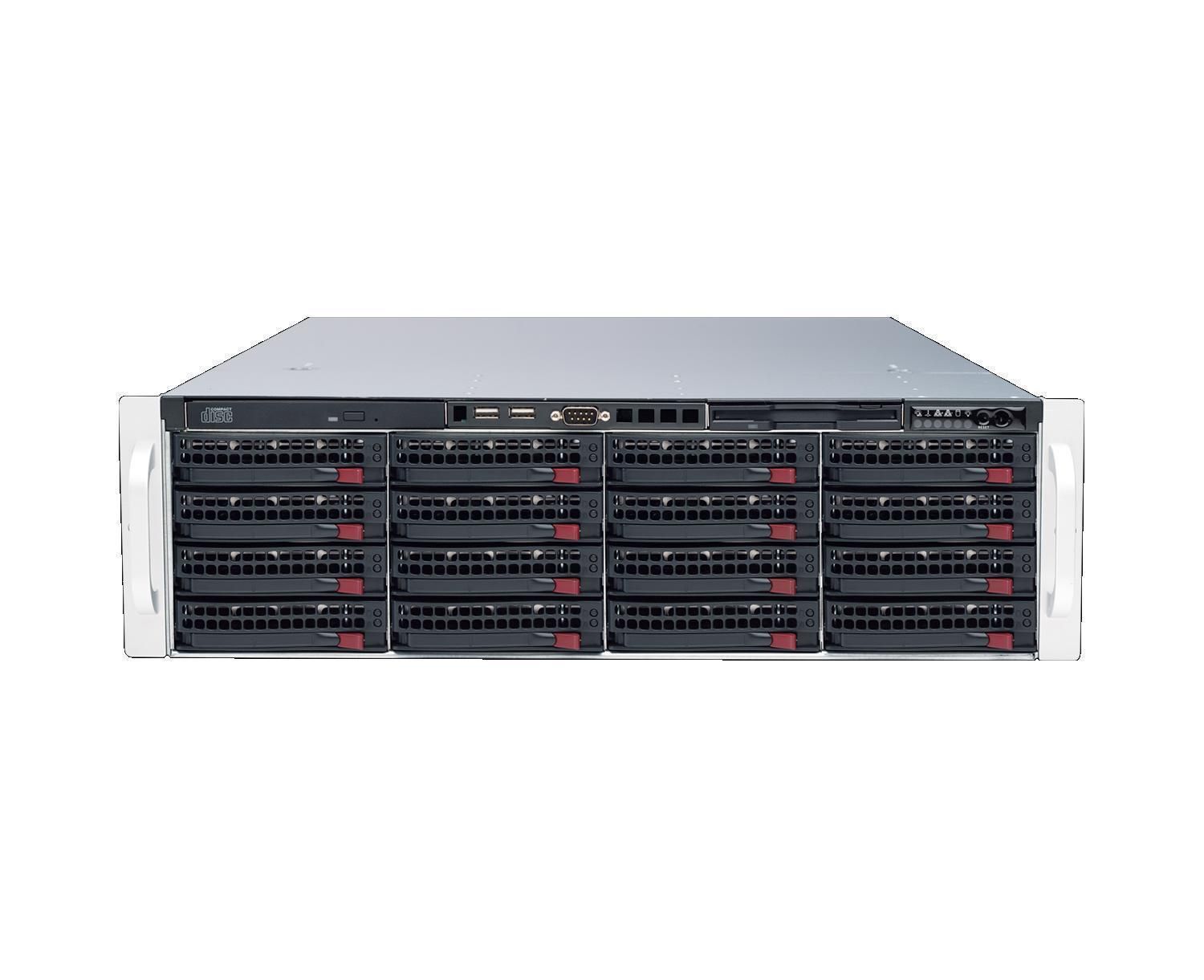

Digital Watchdog DW-BJER3U36T-LX 128 Channels Blackjack E-Rack Linux 3U NVR, 36TB
SKU
DW-BJER3U36T-LX
Model No
DW-BJER3U36T-LX
$17,201.56
Product Highlights
- Storage Options: 4 - 144TB Internal Storage
- Record up to 128 IP Cameras with Total Throughput of 600Mbps
- Hot-Swappable HDDs
- Data Redundancy RAID-5, Redundant Power Supply
- Local Monitoring Outputs Ports
Speak to an expert
The Digital Watchdog DW-BJER3U36T-LX 128 Channels Blackjack E-Rack Linux 3U NVR is an advanced network video recorder that excels in performance and versatility. It supports up to 128 IP cameras, provides exceptional recording quality at 1080P, and features RAID 5 for data security. With its robust architecture and user-friendly DW Spectrum IPVMS software, monitoring and managing your surveillance system is both efficient and customizable, making it ideal for enterprise-level scalability.
Digital Watchdog DW-BJER3U36T-LX Key Features
- Storage Options: Choose between 4–144TB Internal Storage, providing flexibility based on your surveillance needs.
- Camera Support: Record up to 128 IP Cameras simultaneously with a total throughput of 600Mbps for seamless video performance.
- Hot-Swappable HDDs: Easily replace hard drives without downtime, ensuring your system remains operational at all times.
- Data Redundancy: RAID-5 and redundant power supply enhance reliability and protect against data loss.
- Local Monitoring Outputs: Multiple output ports allow for versatile local viewing configurations.
- Dual Network Ports: Ensure network redundancy and improved bandwidth management.
- Linux® OS: Operates on a separate SSD, optimizing performance and stability.
- DW Spectrum™ Integration: Hosting this powerful software simplifies setup, configuration, monitoring, and recording.
- One-Time Licensing: Enjoy a one-time recording license charge, fully transferable between cameras and encoders with no annual maintenance fees.
- Scalability: Easily expand your surveillance capabilities without complicated upgrades.
- Auto Device Discovery: Simplifies the initial setup process by automatically detecting connected devices.
- Dual Stream Recording: Allows for efficient use of bandwidth by recording in two different resolutions simultaneously.
Digital Watchdog DW-BJER3U36T-LX Specifications
| Feature | Details |
|---|---|
| Product Type | 128 Channels NVR |
| Video Resolution | 2.1MP 1080P |
| Throughput | 600 Mbps |
| Processor | Intel® i7® |
| Memory | 8GB |
| Operating System | Linux® on SSD |
| Ports | VGA / HDMI X 2 / DP X 4 |
| Redundancy | RAID 5, Redundant Power Supply |
| Connectivity | Cross-platform for Windows® and Mac® |
| HDD Options | 4–144TB |
SKU  | DW-BJER3U36T-LX |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 36TB |
| Protocols | Digital Watchdog Protocols, Onvif Protocols |
| Features | Alarm Notification by E-mail, Audio, Centralized E-map, H.264 Compression, HD Resolution, MJPEG Compression, MPEG-4 Compression, Redundant Power |
Resolution  | HD 1080p |
| Compression | MJPEG , MPEG4 , H.264 |
| Operating temperature | 10°C – 35°C (50°F – 95°F) |
| Dimensions | 648mm L x 437mm W x 132mm H (25.5" L x 17.2" W x 5.2" H) |
| Power Consumption | 1000W |
| Network | 1000 Mbps (2x) DUal NIC Card |
| Memory | 16GB (8x2 Dual Channel) |
| Redundant Power | Yes |
| HD Resolution | Yes |
| Alarm Notification by E-mail | Yes |
| Centralized E-map | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
| MPEG-4 Compression | Yes |
