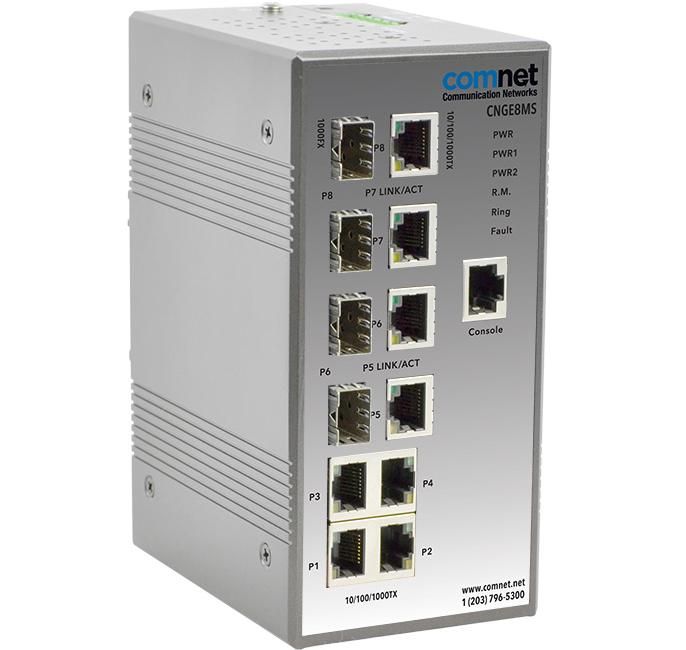

Comnet CNGE8MS Hardened 8 Port 1000Mbps Managed Switch

The ComNet™ CNGE8MS is an 8-port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications. It features four (4) 1000BASE-TX and four (4) gigabit combo ports. The four combo ports are 10/100/1000Mbps configurable for either Cat5-e copper, or multimode or singlemode optical fiber by the use of optional ComNet SFPs* for connector type and distance. Exclusive to ComNet is C-Ring, a feature that protects the network from interruptions or temporary malfunctions with fast recovery technology. Legacy ring allows the switch to be used in an existing ring of ComNet X-Ring enabled switches. Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure. The electrical ports support the 10/100/1000Mbps Ethernet IEEE802.3 protocol, and auto-negotiating an d auto-MDi/MDiX features are provided. These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device. The CNGE8MS is DIN-rail or wall-mountable.

Features

• 16Gbps Switching bandwidth: 4 Combo Gigabit Ports & 4 10/100/1000T(X) Ports
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
• STP/RSTP/MSTP supported
• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
• Compatible and fully functional when used in a Moxa® Turbo ring topology
• Operating Temperature: -40˚ C to +75˚ C (-40˚ F to +167˚ F). Functional to +85˚ C (185º F)
• Fastest Redundant Ethernet Ring: ComNet C-Ring. Recovery time <30ms, with > 250 switches within the ring
• Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
• Supports LLDP (Link Layer Discovery Protocol)
• Event notification through Syslog, E-mail, SNMP trap, and Relay Output
• Port lock to prevent access from unauthorized MAC address
• SNMP v1/v2c/v3 for secure network management
• PTP Client (Precision Time Protocol) for clock synchronization
• C-RSTP supports network applications with complex topology
• Rigid aluminum housing design provides for DIN-Rail or wall mounting
