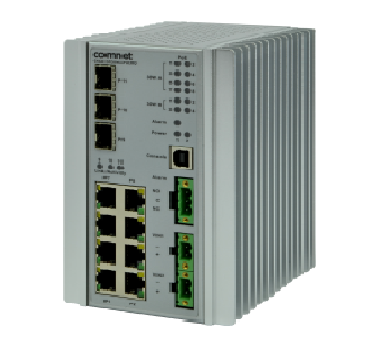

Comnet CNGE3FE8MSPoE-24 Industrially Hardened 11 Port Managed Ethernet Switch, 12-24 VDC Input

The Comnet CNGE3FE8MSPoE-24 is an industrially hardened managed Ethernet switch that offers superior performance and security for demanding applications. With three robust 100/1000Base-FX SFP ports and eight 10/100Base-TX ports, it supports high-speed communication options and powerful PoE capabilities. Its advanced IP-based management, combined with innovative security features like Port Guardian, ensures optimal network performance and robust protection against cyber threats. Ideal for mission-critical environments, this switch delivers reliability and versatility.

Comnet CNGE3FE8MSPoE-24 Key Features

• 3 × 100/1000Base-FX SFP, 8 × 10/100Base-TX RJ45: This configuration allows flexibility in connecting various devices and enhances network speed for bandwidth-intensive applications.
• 2 × SFP ports support 2.5 Gbps SFP modules: Offers high-speed communication, crucial for applications requiring quick data transfer rates.
• Low Voltage 12-24VDC PoE booster function: Simplifies installation and power management by reducing the need for additional power sources.
• Fast Redundancy/Recovery: Implements MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS G.8032 protocols to protect against network interruptions, ensuring consistent data flow.
• Layer 3 static routing: Enhances network routing capabilities, optimizing data management among multiple devices.
• Supports IPV6: Future-proofs the network by accommodating the next-generation internet protocol, ensuring wider accessibility.
• HTTPS/SSH protocol: Increases network security through encrypted communication channels for device management.
• Device Binding security function: Protects against unauthorized access by binding devices to specific ports, enhancing overall network security.
• SNMP v1/v2c/v3 & RMON & 802.1Q VLAN: Facilitates comprehensive network management and monitoring to maintain system integrity.
• ACL, 802.1x User Authentication: Provides robust security features to control user access and safeguard sensitive information.
• 9.6K Bytes Jumbo Frame support: Increases frame size for more efficient data processing, boosting network performance.
• Web-based, Telnet and Console (CLI) configuration: Offers multiple interfaces for easy management and monitoring of network operations.
• Designed for wall or DIN rail mount installations: Enhances installation flexibility, making it suitable for various environments.

Comnet CNGE3FE8MSPoE-24 Detailed Specifications
