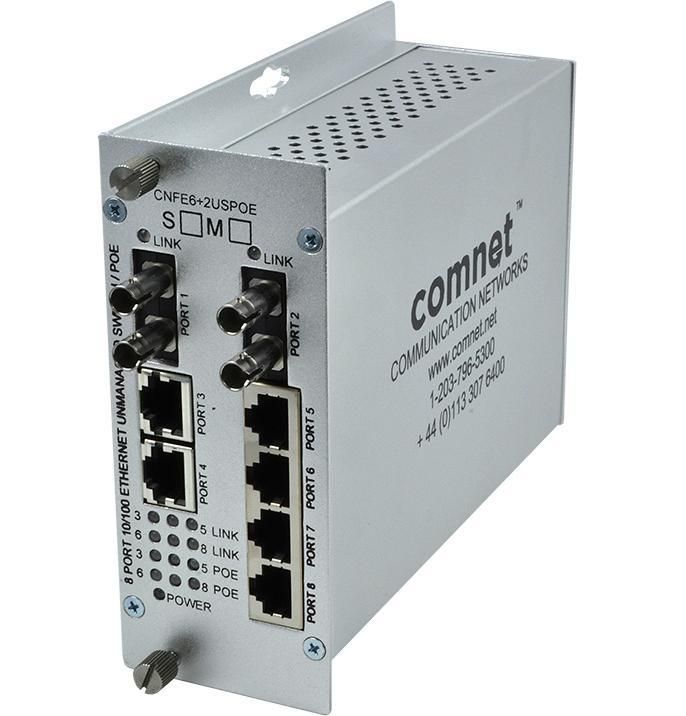

Comnet CNFE6+2USPOE-S 8 Port 10/100 Mbps Ethernet Self-Managed Switch 2FX Single Mode, 6TX (PoE)

The ComNet™ CNFE6+2USPOE-S is an advanced 8-port Ethernet self-managed switch that operates at 10/100 Mbps. It combines six electrical ports into a second optical port, enabling easy data forwarding to additional Ethernet devices while providing Power Over Ethernet (PoE) functionality of up to 30 watts. Designed for seamless integration without programming, this switch caters to diverse networking needs with robust performance and reliability.

ComNet CNFE6+2USPOE-S Key Features

• No Programming Required: Simplifies installation, allowing for immediate deployment without complex setup procedures.
• 10/100 Mbps Ethernet: Supports both speeds, providing flexibility for various device connections.
• 10/100 BASE-T/TX Electrical Port: Ensures compatibility with standard devices, maximizing usability.
• 100 BASE-FX Optical Port: Allows for long-distance connections with minimal data loss.
• Electrical Ports Support Auto-Negotiation: Automatically adjusts to network requirements for optimal performance (10 Mbps or 100 Mbps, full duplex or half duplex).
• Optical Port Supports 100 Mbps Full Duplex Data: Delivers high-speed data transfer, enhancing overall network efficiency.
• IEEE802.3af Class 1 – 3 Power Over Ethernet (PoE) 30W: Powers remote devices, eliminating the need for additional power sources.
• Automatic MDI/MDI-X Crossover: Eliminates the need for crossover cables, simplifying connectivity.
• Compliance with NEMA TS-1/TS-2: Meets environmental standards for robust performance in demanding conditions.
• Voltage Transient Protection: Guards against power surges, ensuring device longevity and reliability.
• No In-Field Optical Adjustments Required: Reduces maintenance needs, ensuring consistent performance.
• LED Indicators: Provides clear visibility into power, activity, and PoE status for real-time monitoring.
• Hot-Swappable Rack Modules: Facilitates upgrades and maintenance without disrupting service.
• Multiple Mounting Options: Can be wall, rack, or DIN-rail mounted, offering installation flexibility.
• IEEE 802.3 Compliant: Ensures compatibility with a wide range of Ethernet devices and networks.

ComNet CNFE6+2USPOE-S Detailed Specifications
