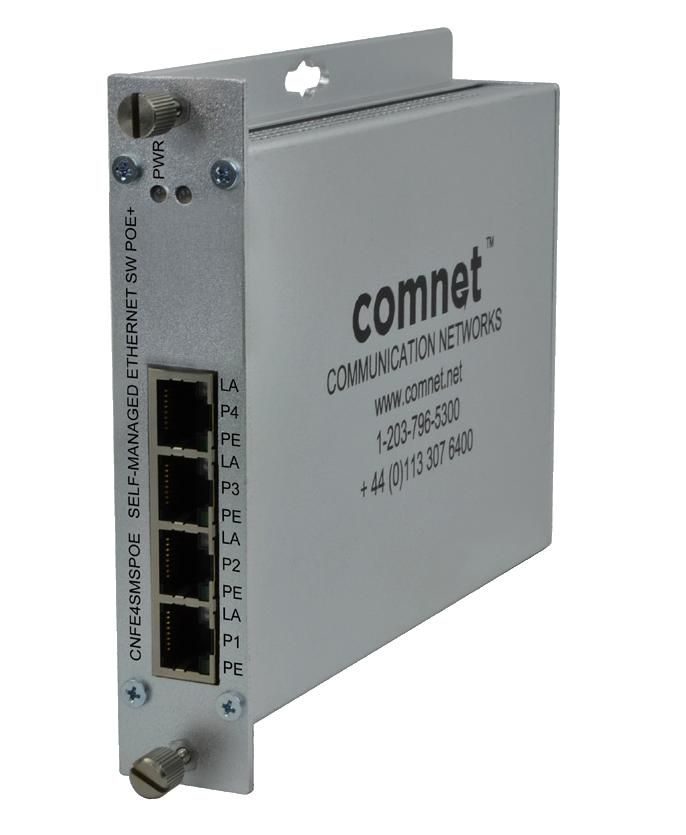

Comnet CNFE4SMSPOE 4-Port Ethernet Self-Managed Switch (PoE+)

SKU
CNFE4SMSPOE
Comnet CNFE4SMSPOE 4-Port Ethernet Self-Managed Switch (PoE+) CNFE4SMSPOE by Comnet
Comnet CNFE4SMSPOE 4-Port Ethernet Self-Managed Switch (PoE+) CNFE4SMSPOE by Comnet
Model No
CNFE4SMSPOE
$675.99
Qty:
Product Highlights
    • No Programming Required
    • 10/100 Mbps Ethernet
    • 4 × 10/100 BASE-T(X) electrical ports supporting PoE+
    • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
    • Pre-programmed Port for uplink

The ComNet™ CNFE4SMSPOE is a four-port self-managed Ethernet switch with uplink management functionality. It provides 4 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the three electrical ports into a fourth electrical port and forward that data to the next network device. There is no programming required to use this product. The ComNet CNFE4SMSPOE comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch. All four ports can supply up to thirty (30) watts of power (“Power over Ethernet”) and incorporate PoE+ features based on the IEEE 802.3at standard. It is “Plug-and-Play” easy to use. The ComNet CNFE4SMSPOE may be either wall mounted, rack mounted (“ComFit” packaging) or DIN-rail mounted with the use of the ComNet DINBKT1 adapter.

Features

  • No Programming Required
  • 10/100 Mbps Ethernet
  • 4 × 10/100 BASE-T(X) electrical ports supporting PoE+
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Pre-programmed Port for uplink
  • Automatic MDI/MDI-X crossover
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • Power and Activity status LED indicators
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • IEEE 802.3 compliant
SKU  CNFE4SMSPOE
Manufacturer  Comnet
# of Ports  4 PORT
Data Rate  10/100 Mbps
Management  Managed
Form Factor  Rackmount, Surface
PoE  Yes
Features  Rugged / Hardened
There are no related videos.
Downloads & Manuals
SKU
CNFE4SMSPOE
Availability: In stock
