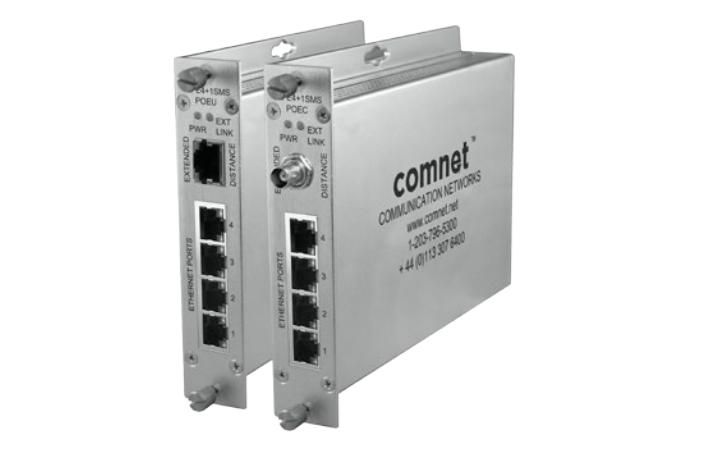

Comnet CLFE4+1SMSC 4 Port 10/100 Mbps Ethernet Self-managed Switch

The CLFE4+1SMSC from ComNet is a versatile five-port Ethernet switch designed to optimize network connections with ease. Featuring four copper ports operating at 10/100Mbps, it allows for seamless integration of multiple devices into a single Ethernet network using user-friendly uplink management. This self-managed switch requires no programming, making it ideal for a range of applications including video streaming and surveillance systems.

ComNet CLFE4+1SMSC Key Features

• No Programming Required: Simple plug-and-play functionality enables easy installation and configuration.
• 10/100 Mbps Ethernet: Supports the latest Ethernet standards for reliable high-speed connectivity.
• 4 - 10/100 BASE-T/TX Ports with optional PoE+: Enhance your network with power over Ethernet for connected devices.
• 1 - 10/1000Mbps CopperLine Electrical Uplink: Provides high-speed uplink capabilities for efficient data transmission.
• Auto-Negotiation Support: Automatic detection of network speed and duplex mode ensures optimal performance.
• Pre-programmed Port for Uplink: Simplifies setup and prevents network video flooding.
• Full 10/100 Mbps Bandwidth: Maximizes data throughput for all connected devices.
• Supports Multicast, Unicast, and Jumbo Frame: Enhances data handling capabilities for diverse network applications.
• Automatic MDI/MDI-X Crossover: Eliminates the need for crossover cables, simplifying connections.
• Environmental Compliance: Designed to meet NEMA TS-1/TS-2 and Caltrans specifications for robust performance under various conditions.
• Voltage Transient Protection: Safeguards against surges and voltage fluctuations, enhancing reliability.
• Power and Activity Status LED Indicators: Provides real-time feedback on device status and connectivity.
• Hot-swappable Rack Modules: Facilitates easy upgrades or replacements without downtime.
• Versatile Mounting Options: Can be used as a stand-alone unit, rack-mounted, or DIN-rail mounted with an optional kit.
• IEEE 802.3 Compliant: Adheres to international standards for network compatibility.
• Ideal for IP Video Applications: Perfect for CCTV systems in diverse environments like casinos and airports.
• Retrofit Compatibility: Easily integrates existing analog CCTV installations into Ethernet-based systems.

ComNet CLFE4+1SMSC Detailed Specifications
