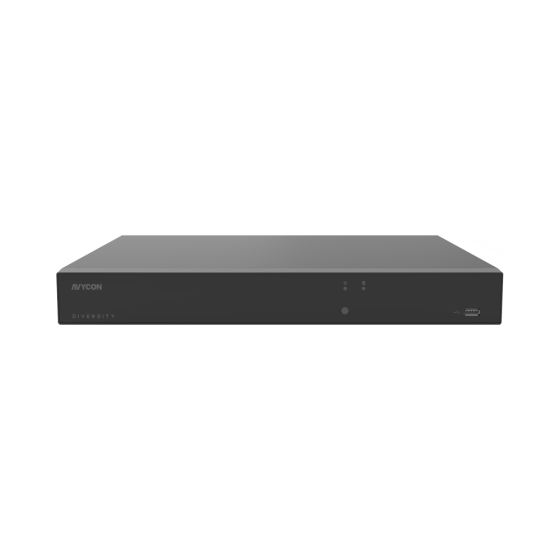

Avycon AVR-HSV16E2N-8T 16 Channels 4K UHD Network Video Recorder, 8TB
SKU
AVR-HSV16E2N-8T
Model No
AVR-HSV16E2N-8T
$2,440.00
Product Highlights
- H.265+ codec decoding
- Max. 320Mbps (16CH) input bandwidth
- Up to 8MP (4K) resolution for preview and playback
- 8TB
- Full function network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
Speak to an expert
The AVR-HSV16E2N-8T from Avycon offers advanced surveillance capabilities with its 16 channels and 4K UHD recording, making it an ideal choice for comprehensive security monitoring. With an 8TB storage capacity and state-of-the-art decoding technology, this network video recorder provides seamless viewing and playback options alongside easy remote access via mobile apps and web browsers.
Features
- H.265+ codec decoding: Achieves high-quality video playback while reducing bandwidth consumption, ensuring efficient storage and transmission.
- Max. 320Mbps (16CH) input bandwidth: Provides ample capacity for simultaneous data streams from multiple cameras, allowing for expansive surveillance setups.
- Up to 8MP (4K) resolution for preview and playback: Delivers visually stunning clarity at high resolutions, ensuring critical details are captured and viewable.
- 8TB storage: Offers extensive space for video recordings, allowing for extended periods of footage storage without interruptions.
- Full function network remote view via Internet: Easily access your surveillance system from anywhere through CMS, web browsers, and compatible devices.
- No limitation on adding devices to CMS: Scalability with a maximum of 128 channels for previewing allows for future expansion.
- Support scan P2P QR code to connect DVR via Mobile app: Quick and hassle-free setup on mobile devices using the AVY Mobile One app.
- Support to save pictures/video to Dropbox storage: Facilitates off-site backup options for security footage to protect against loss.
- Support to save pictures/video to FTP server: Customizable backup solutions to a user-defined FTP server for added security.
- VGA/HDMI output up to 4K resolution: Ensures compatibility with high-definition displays for superior monitoring experiences.
- Support HDD S.M.A.R.T. Monitoring: Includes health monitoring of hard drives, preemptively identifying potential drive failures for data security.
Avycon AVR-HSV16E2N-8T Detailed Specifications
| Feature | Details |
|---|---|
| Channels | 16 |
| Video Codec | H.265+ |
| Input Bandwidth | 320Mbps |
| Video Resolution | Up to 8MP (4K) |
| Storage Capacity | 8TB |
| Remote Access | Via CMS, Internet Browsers, Mobile App |
| Max Channels for Preview | 128 |
| Output Ports | VGA/HDMI up to 4K |
| Backup Options | Dropbox, FTP |
| Drive Monitoring | HDD S.M.A.R.T. Monitoring |
SKU  | AVR-HSV16E2N-8T |
|---|---|
| Manufacturer | Avycon |
| NDAA | Compliant |
| IP Channels | 16 Channels |
| Harddrive Size | 8TB |
| Protocols | Avycon Protocols |
| Features | Audio, Compression Supported, H.264 Compression, H.265 Compression, HD Resolution, Supports the Full HD Output (HDMI) |
Resolution  | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Compression | H.265+/H.265/H.264+/H.264 |
| Bandwidth | Incoming Bandwidth (Mbps): 320Mbps, Outgoing Bandwidth (Mbps): 320Mbps |
| Operating temperature | 32°~104°F (0°~40° Celsius) |
| Dimensions | 14.96" × 13.39" × 1.97" (380mm x 340mm x 50mm) |
| Voltage | DC12V/2A |
| Power Consumption | 6W (Without HDD) |
| Network | 2 RJ45 10/100/1000 Base-T |
| USB | USB 2.0 x 2 (Front & Rear Panel), USB 3.0 x 1 (Rear Panel) |
| Audio | 1 In / 1 Out |
| Compression Supported | Yes |
| HD Resolution | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
