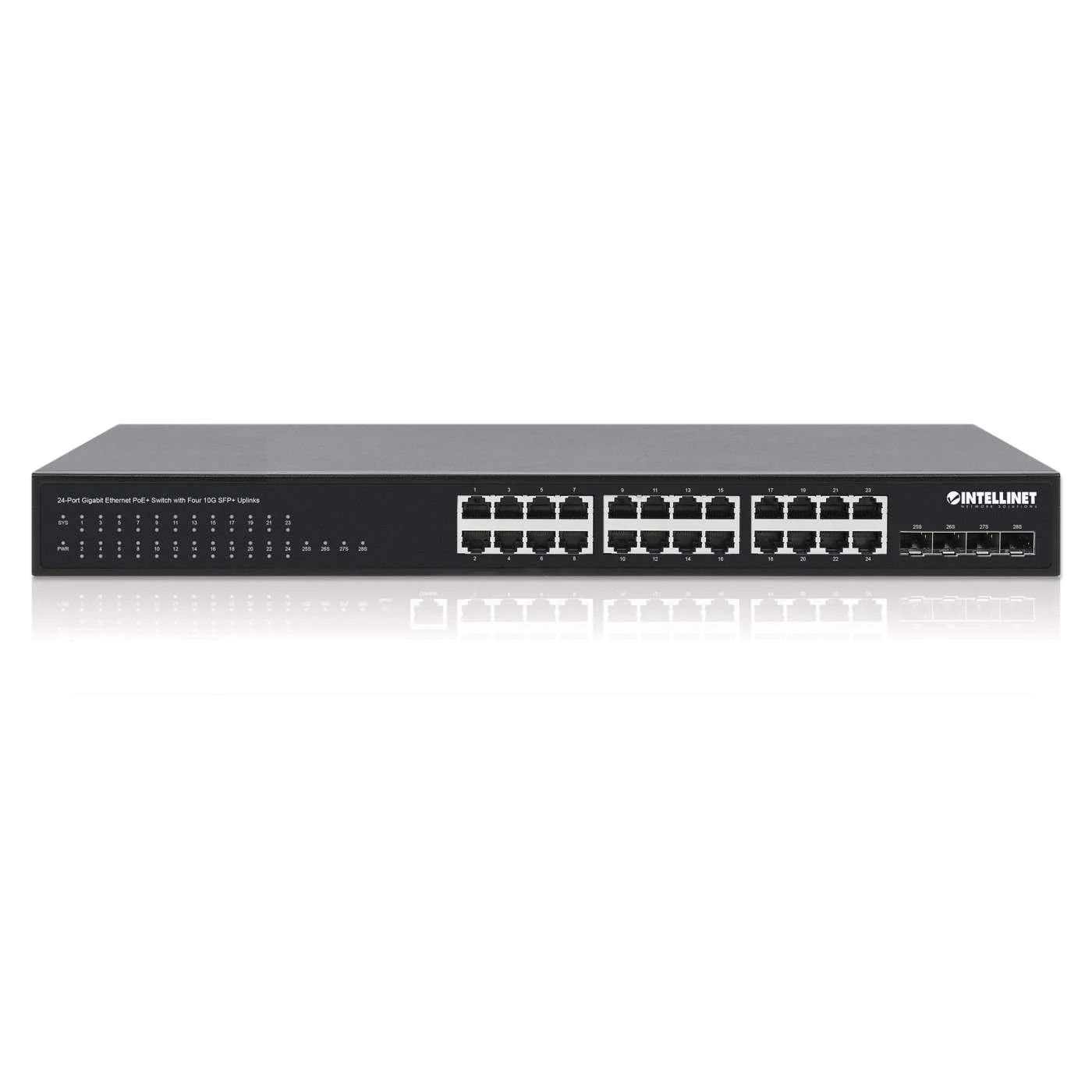

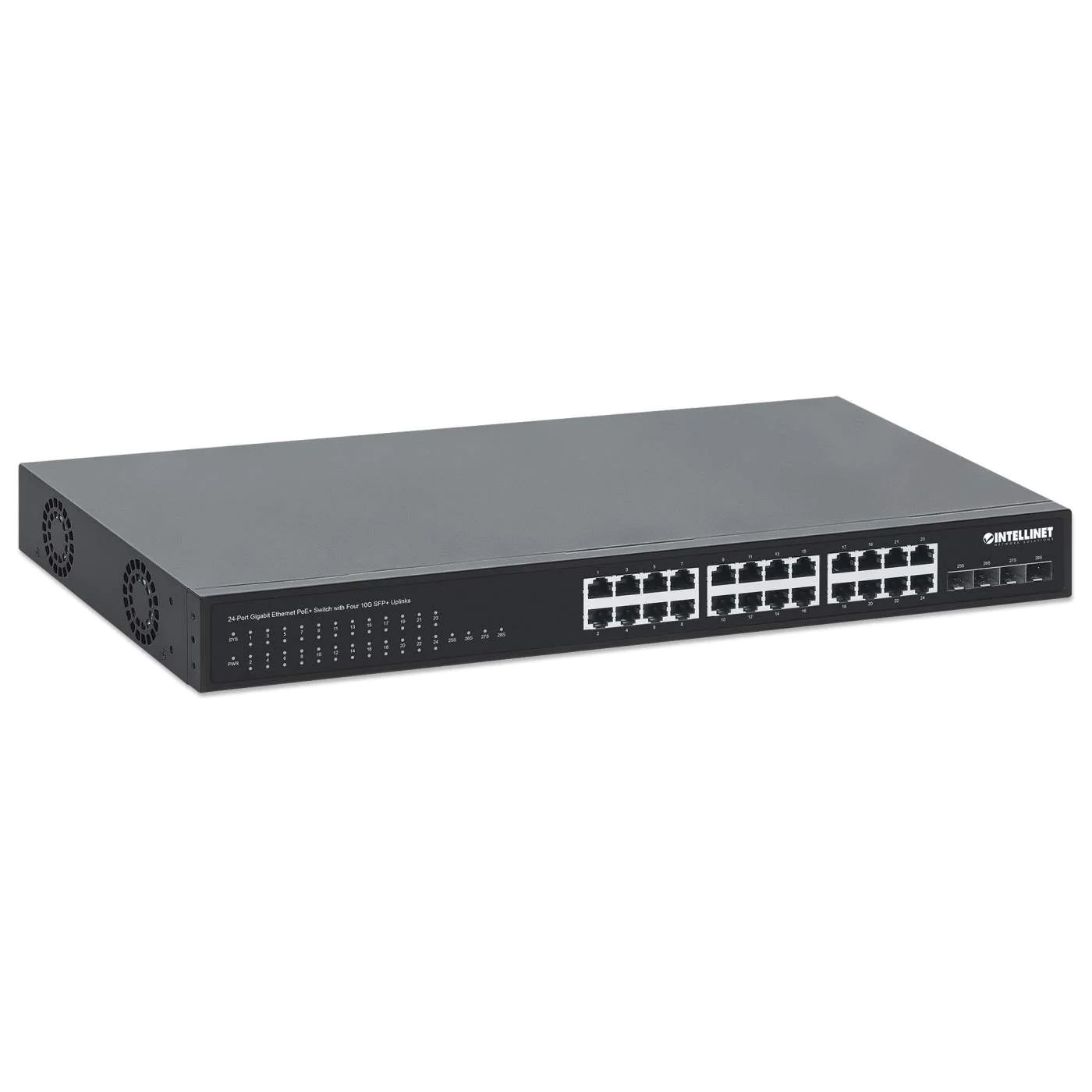

Intellinet 561761 24-Port Gigabit Ethernet PoE+ Switch with Four 10G SFP+ Uplinks

The Intellinet 561761 24-Port Gigabit Ethernet PoE+ Switch with Four 10G SFP+ Uplinks is designed to provide a powerful and efficient network backbone, capable of powering multiple devices while boosting connectivity speed. With a robust power budget of 370 watts, this switch supports high-performance PoE devices such as IP cameras and VoIP phones. Additionally, its 10G SFP+ uplink capability ensures future-proofing your network without compromising on performance.

Intellinet 561761 Switch Features

• Provides data and power: Delivers up to 24 PoE network devices with both power and data, reducing the need for separate power sources.
• 10G SFP+ uplink slots: Four small-form-factor pluggable 10G SFP/SFP+ module slots ensure swift connectivity with support for advanced networking needs.
• Impressive power budget: A total PoE power budget of 370 watts means more devices can be powered simultaneously.
• Per-port power output: Supports up to 30 watts per port, making it compatible with a wide variety of PoE devices.
• Speed detection: The auto-sensing 10/100/1000 Mbps ports optimize network performance, adapting to the needs of connected devices.
• Cost-effective installation: Simplifies setup by delivering data and power over existing network cables, saving installation time and costs.
• Broad device compatibility: Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices, ensuring versatility for various applications.
• Robust safety features: Built-in detection and protection mechanisms against short circuits, overloads, and high voltage ensure safe operational conditions.
• Enhanced network flexibility: Auto-MDIX and NWay auto-negotiation on all RJ45 ports provide seamless connectivity setup.
• Efficient energy management: Complies with IEEE 802.3az Energy Efficient Ethernet specifications to save power on unused ports.
• High performance architecture: Offers a switch fabric with 128 Gbps capacity, ensuring smooth data flow even under heavy loads.
• Jumbo frame support: Allows frame sizes up to 12 kBytes for optimized large data transfers.
• Reliable architecture: Uses a store-and-forward switching method to prevent data loss and improve network resilience.
• Flow control support: IEEE 802.3x flow control provides effective management for full duplex operations.
• Large MAC address capacity: Supports up to 16,000 MAC address entries, catering to extensive networking environments.
• Buffered memory: Equipped with 12 MBytes of buffer memory for enhanced data handling.
• Excellent cooling system: Features two high-volume cooling fans to maintain optimum temperature levels.
• Rackmount ready: Comes with 19" rackmount brackets for easy installation in server racks.
• NDAA compliant: Fully compliant with the National Defense Authorization Act for added security assurance.

Intellinet 561761 Detailed Specifications
