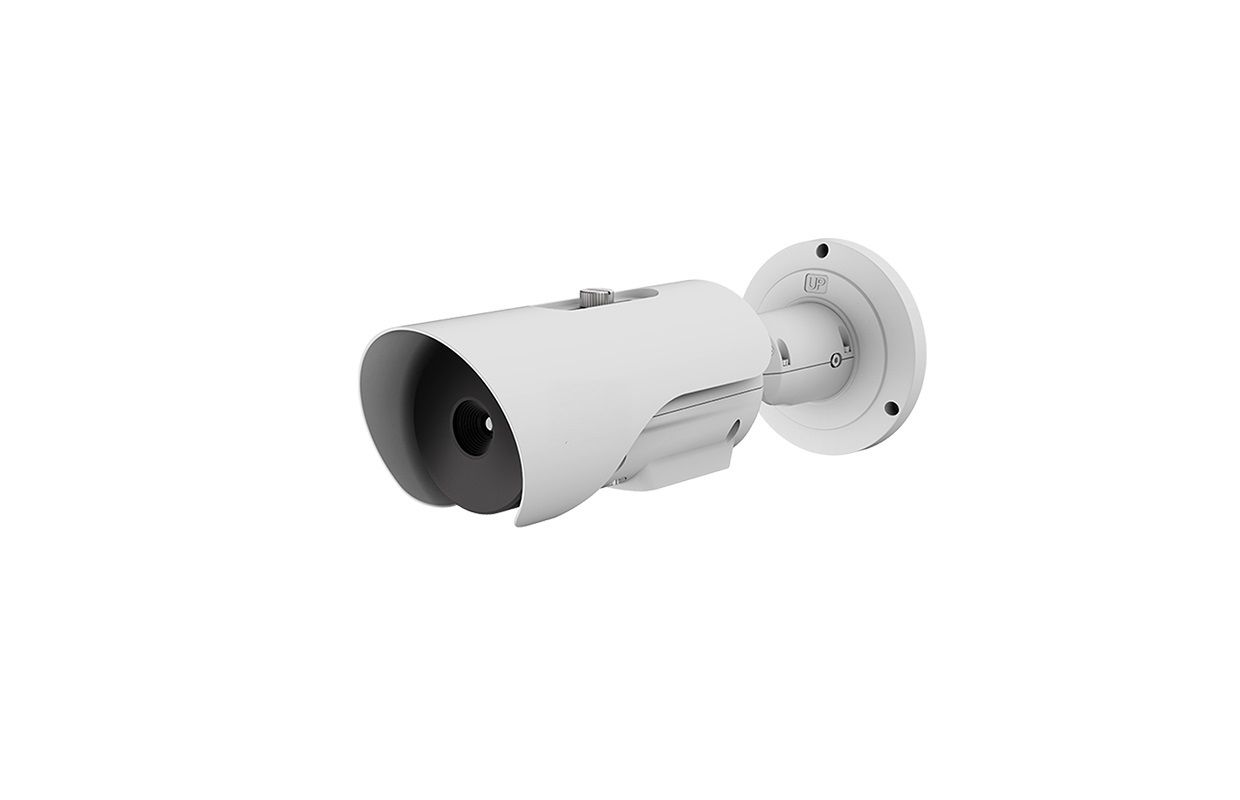

Ganz ZNT8-B1F50-1 400 x 300 Network IP Thermal Bullet Camera with 50mm Lens
SKU
ZNT8-B1F50-1
Model No
ZNT8-B1F50-1
$7,900.00
Product Highlights
- VOx uncooled focal plane detector with 384×288 resolution
- NETD ≤ 40mK
- 9mm, 15mm, 25mm, 35mm, and 50mm fixed lens options (xx)
- Supports human and vehicle detection, as well as smoking and fire point detection
- Intelligent Analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way detection, enter area, leave area, and people counting
Speak to an expert
The ZNT8-B1F50-1 from Ganz the ZNT8-B1F works with the NR8-16F82 to deliver AI analytics.
Features
- VOx uncooled focal plane detector with 384×288 resolution
- NETD ≤ 40mK
- 9mm, 15mm, 25mm, 35mm, and 50mm fixed lens options (xx)
- Supports human and vehicle detection, as well as smoking and fire point detection
- Intelligent Analytics: intrusion, single line crossing, double line crossing, loitering, wrong-way detection, enter area, leave area, and people counting
- Support 3 temperature measurement rule types (spot, line, area)
- Temperature measurement range: -20°C to 150°C or 0°C to 550°C
- Accuracy: ±2°C / ±2%
- Support 12VDC/24VAC/PoE power supply
- IP66
- NDAA Compliant
SKU  | ZNT8-B1F50-1 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | Ganz |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 400 X 300 |
| Lens Type | Fixed |
| Lens Size | 50mm |
| Mount Type | Ceiling, Wall |
| Durability | Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | φ120.5 × 315.9 ~ 352.6 mm (φ4.74" × 12.44" ~ 13.88") |
| Image Device | Vanadium Oxide Uncooled Focal Plane Arrays |
| Operating Humidity | 0 to 90% RH |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Power Consumption | Max 4.5W |
| Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D/3D DNR |
| Mirror | Horizontal / Vertical / Horizontal + Vertical |
| Angle of View | H: 7.4°, V: 5.6° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
