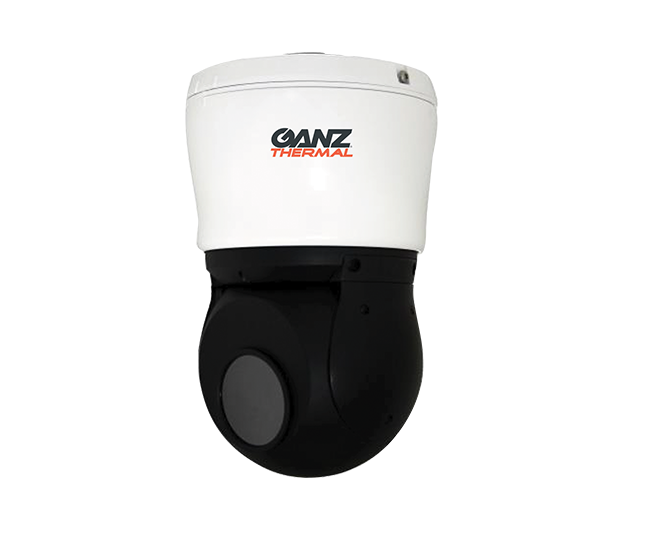

Ganz ZNT1-PBT24G26A Outdoor PT Thermal IP Camera, 50mm Lens

SKU
ZNT1-PBT24G26A
Model No
ZNT1-PBT24G26A
$13,295.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Thermal imaging powered by DRS Technologies
  • Image Contrast Enhancement (ICE) features
  • 30 fps or 9 fps versions for global commercial applications
  • IP and Analog connectivity
  • Continuous 360° High Speed Pan and Wide Tilt angle

The ZNT1-PBT24G26A from Ganz is an advanced outdoor PT thermal IP camera designed for superior surveillance and safety. With a powerful 50mm lens and equipped with state-of-the-art technology, this camera delivers exceptional thermal imaging, video analytics, and robust connectivity, ensuring optimal performance in diverse environments.

Ganz ZNT1-PBT24G26A Camera Features

  • GXi Technology: Powered by VCA, this feature maximizes surveillance capabilities with enhanced video analytics for improved monitoring.
  • Thermal Imaging: Utilizing DRS Technologies, this camera provides clear imaging in low-light and challenging weather conditions.
  • Image Contrast Enhancement (ICE™): This technology enhances image clarity, making it easier to identify objects and activities.
  • Versatile Frame Rates: Choose between 30 fps or 9 fps versions, suitable for global commercial applications, allowing flexibility based on specific needs.
  • Connectivity: Offers both IP and Analog connectivity options for easy integration into existing systems.
  • High-Speed Movement: Continuous 360° high-speed pan and wide tilt angle enable comprehensive coverage of large areas.
  • All-Weather Operation: Designed for 24/7 operation in all weather and lighting conditions, ensuring reliability at all times.
  • IP66 Rating: Suitable for both indoor and outdoor use, offering protection against dust and water.
  • Storage Solutions: Features embedded storage and edge recording for secure data retention.
  • ONVIF Compliance: Conforms to ONVIF Profile S and G, ensuring compatibility with various video management systems.

Detailed Specifications for Ganz ZNT1-PBT24G26A

ModelZNT1-PBT24G26A
Lens50mm
Thermal Imaging TechnologyDRS Technologies
Image ProcessingImage Contrast Enhancement (ICE™)
Frame Rates30 fps / 9 fps
ConnectivityIP & Analog
Pan Capability360° Continuous
Tilt CapabilityWide Tilt Angle
Weather ResistanceIP66
StorageEmbedded storage & edge recording
ComplianceONVIF Profile S & G
SKU  ZNT1-PBT24G26A
Features  Audio, Auto Gain Control, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    640 X 480
Lens Type    Fixed
Lens Size    50mm
Mount Type  Ceiling
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Automatic
Dimensions (W x H)  9.5” x 5.9” (240 x 150 mm)
Operating Humidity    up to 90% RH (non-condensing)
Operating Temperature    -40°F ~ 122°F (-40°C ~ 50°C)
OSD Menu    4 configurable regions
Power Consumption  max 10W@12VDC, PoE
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, FTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMP v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLS, SRTP, RTMP, IEEE802.1X
Scanning System    Progressive
Signal System    NTSC/PAL
Weatherproof    IP66
Angle of View    Horizontal: 12°
Motion Detection Tracking    Supported
AudioYes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Mirror    Yes
ONVIF  Yes
