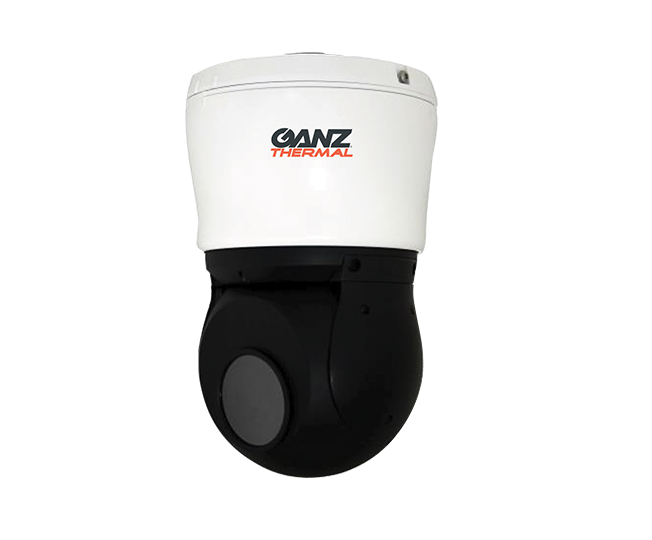

Ganz ZNT1-PBT24G25A Outdoor PT Thermal IP Camera, 35mm Lens
SKU
ZNT1-PBT24G25A
Model No
ZNT1-PBT24G25A
$8,072.00
Product Highlights
- Thermal imaging powered by DRS Technologies
- Image Contrast Enhancement (ICE) features
- 30 fps or 9 fps versions for global commercial applications
- IP and Analog connectivity
- Continuous 360° High Speed Pan and Wide Tilt angle
Speak to an expert
The ZNT1-PBT24G25A from Ganz is an advanced outdoor PT thermal IP camera equipped with a high-performance 35mm lens. It offers exceptional surveillance capabilities through its cutting-edge video analytics technology and thermal imaging, making it ideal for a variety of outdoor environments.
Ganz ZNT1-PBT24G25A Camera Features
- GXi Technology: Maximizes surveillance capabilities with advanced video analytics for proactive monitoring.
- Thermal Imaging: Powered by DRS Technologies, providing reliable performance in low visibility conditions.
- Image Contrast Enhancement (ICE™): Improves image clarity, ensuring accurate detection and recognition.
- Versatile Frame Rates: Supports 30 fps or 9 fps for adaptable use in global commercial applications.
- Flexible Connectivity: Offers both IP and Analog connectivity options for versatile integration.
- Continuous 360° Pan and Wide Tilt: Ensures comprehensive coverage with high-speed pan and tilt capabilities.
- All-Weather Operation: Designed for 24/7 functionality in various weather and lighting conditions.
- Indoor/Outdoor Capability: IP66 rated for reliable use outside and in harsh environments.
- Embedded Storage: Features edge recording for added security and data reliability.
- ONVIF Conformance: Fully compliant with ONVIF Profile S and G, ensuring compatibility with various systems.
Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | ZNT1-PBT24G25A |
| Lens | 35mm |
| Technology | GXi Technology, DRS Technologies |
| Frame Rate | 30 fps / 9 fps |
| Connectivity | IP and Analog |
| Pan/Tilt | Continuous 360° Pan, Wide Tilt |
| Weather Rating | IP66 |
| Storage | Embedded storage, edge recording |
| ONVIF Compliance | Profile S and G |
SKU  | ZNT1-PBT24G25A |
|---|---|
| Features | Audio, Auto Gain Control, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 640 X 480 |
| Lens Type | Fixed |
| Lens Size | 35mm |
| Mount Type | Ceiling |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Automatic |
| Dimensions (W x H) | 9.5” x 5.9” (240 x 150 mm) |
| Operating Humidity | up to 90% RH (non-condensing) |
| Operating Temperature | -40°F ~ 122°F (-40°C ~ 50°C) |
| OSD Menu | 4 configurable regions |
| Power Consumption | max 10W@12VDC, PoE |
| Protocols | QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, FTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMP v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLS, SRTP, RTMP, IEEE802.1X |
| Scanning System | Progressive |
| Signal System | NTSC/PAL |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 18° |
| Motion Detection Tracking | Supported |
| Audio | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Mirror | Yes |
| ONVIF | Yes |
