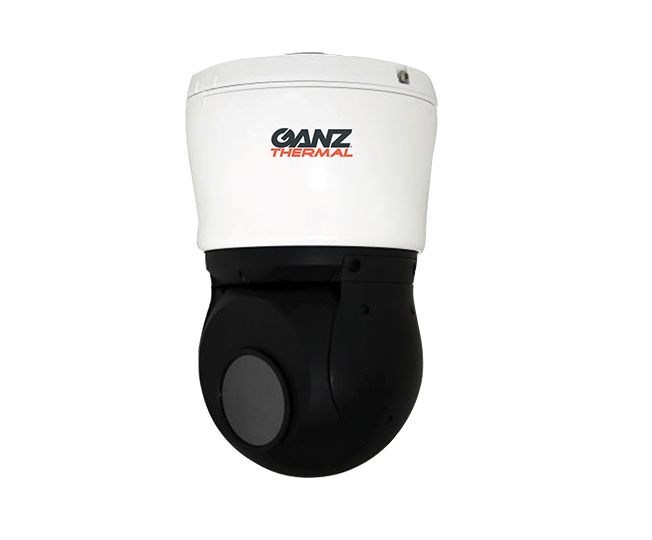

Ganz ZNT1-PBT14G25A Outdoor PT Thermal IP Camera, 35mm Lens

SKU
ZNT1-PBT14G25A
Model No
ZNT1-PBT14G25A
$8,500.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Thermal imaging powered by DRS Technologies
  • Image Contrast Enhancement (ICE) features
  • 30 fps or 9 fps versions for global commercial applications
  • IP and Analog connectivity
  • Continuous 360° High Speed Pan and Wide Tilt angle

The ZNT1-PBT14G25A from Ganz is an advanced outdoor PT thermal IP camera designed for superior surveillance performance, featuring a 35mm lens. This camera incorporates cutting-edge technologies to enhance visibility and reliability in various weather conditions, making it ideal for commercial applications.

Ganz ZNT1-PBT14G25A Camera Features

  • GXi Technology: Powered by VCA, it maximizes surveillance capabilities with robust video analytics, ensuring comprehensive monitoring.
  • Thermal Imaging: Utilizes DRS Technologies to deliver high-quality thermal images, providing clear visuals in low-light and challenging environments.
  • Image Contrast Enhancement (ICE™): This feature enhances image quality, allowing for better detection and recognition of subjects.
  • Frame Rate Options: Offers 30 fps or 9 fps configurations, suitable for various global commercial applications based on specific needs.
  • Connectivity: Supports both IP and Analog connections, offering flexibility in installation and integration with existing systems.
  • High-Speed Pan and Tilt: Continuous 360° pan and wide tilt angles provide extensive coverage for tracking movements in large areas.
  • All-Weather Operation: Designed for 24/7 operation in any weather and lighting conditions, ensuring uninterrupted surveillance.
  • IP66 Rating: Suitable for indoor and outdoor use, providing protection against dust and water ingress.
  • Embedded Storage: Features edge recording capabilities, allowing for reliable data storage and retrieval during network interruptions.
  • ONVIF Conformance: Compliant with ONVIF Profile S and G standards, ensuring compatibility with a wide range of video management systems.

Detailed Specifications for Ganz ZNT1-PBT14G25A

Camera TypeOutdoor PT Thermal IP Camera
Lens35mm
Frame Rate30 fps or 9 fps
ConnectivityIP and Analog
Panning CapabilityContinuous 360°
Tilt AngleWide tilt angle
IP RatingIP66
StorageEmbedded storage and edge recording
ONVIF ComplianceProfile S and G
SKU  ZNT1-PBT14G25A
Features  Audio, Auto Gain Control, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    320 X 240
Lens Type    Fixed
Lens Size    35mm
Mount Type  Ceiling
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Automatic
Dimensions (W x H)  9.5” x 5.9” (240 x 150 mm)
Operating Humidity    up to 90% RH (non-condensing)
Operating Temperature    -40°F ~ 122°F (-40°C ~ 50°C)
OSD Menu    4 configurable regions
Power Consumption  max 10W@12VDC, PoE
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, FTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMP v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLS, SRTP, RTMP, IEEE802.1X
Scanning System    Progressive
Signal System    NTSC/PAL
Weatherproof    IP66
Angle of View    Horizontal: 9°
Motion Detection Tracking    Supported
AudioYes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Mirror    Yes
ONVIF  Yes
