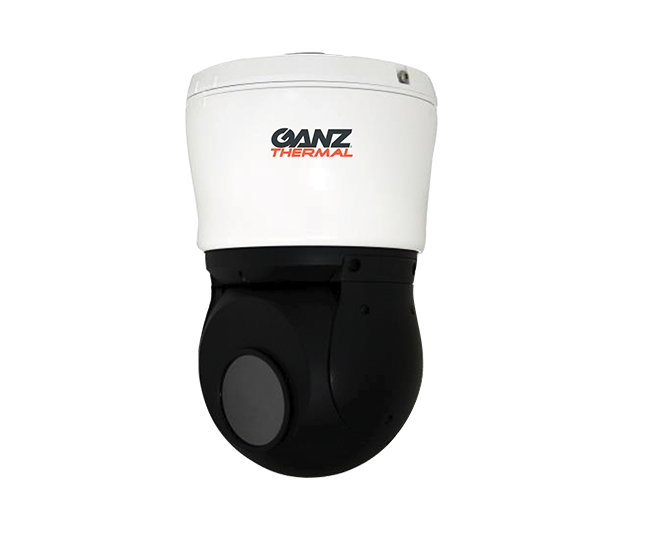

Ganz ZNT1-PAT24G26A Outdoor PT Thermal IP Camera, 52mm Lens

SKU
ZNT1-PAT24G26A
Model No
ZNT1-PAT24G26A
$13,295.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Thermal imaging powered by DRS Technologies
  • Image Contrast Enhancement (ICE) features
  • 30 fps or 9 fps versions for global commercial applications
  • IP and Analog connectivity
  • Continuous 360° High Speed Pan and Wide Tilt angle

The ZNT1-PAT24G26A from Ganz is an outdoor PT thermal IP camera featuring a 52mm lens designed for superior surveillance. This state-of-the-art camera combines advanced thermal imaging technology with robust analytics capabilities, ensuring high performance in various conditions and providing reliable monitoring day or night.

Ganz ZNT1-PAT24G26A Camera Features

  • GXi Technology: Powered by VCA, this technology maximizes surveillance capabilities, offering enhanced video analytics for improved threat detection.
  • Thermal Imaging: Utilizes DRS Technologies to provide clear images in total darkness, ensuring 24/7 monitoring.
  • Image Contrast Enhancement (ICE™): Enhances image quality, allowing for better detail recognition in challenging conditions.
  • Frame Rate Options: 30 fps or 9 fps versions cater to various global commercial applications, offering flexibility in performance.
  • Connectivity: Supports both IP and Analog connections for easy integration with existing systems.
  • Continuous Pan and Tilt: Features 360° high-speed pan and wide tilt angle capabilities, allowing for comprehensive area coverage.
  • Weatherproof Design: Operates continuously in all weather and lighting conditions, ensuring reliability in outdoor environments.
  • IP66 Rating: Suitable for both indoor and outdoor use, providing peace of mind in terms of durability.
  • Embedded Storage: Offers edge recording capabilities, ensuring data is safely stored locally if network connections fail.
  • ONVIF Compliance: ONVIF Profile S and G compliant for interoperability with various security systems.

Ganz ZNT1-PAT24G26A Detailed Specifications

Camera TypeOutdoor PT Thermal IP Camera
Lens52mm
TechnologyGXi with Video Content Analytics
Imaging TechnologyThermal Imaging by DRS Technologies
Image Contrast EnhancementICE™
Frame Rate Options30 fps or 9 fps
Connectivity OptionsIP and Analog
Panning CapabilityContinuous 360° High Speed
Tilt AngleWide Tilt Angle
Operational Conditions24/7 in All Weather & Lighting
IP RatingIP66 - Indoor/Outdoor
StorageEmbedded and Edge Recording
ONVIF ComplianceProfile S and G
SKU  ZNT1-PAT24G26A
Features  Audio, Auto Gain Control, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    640 X 480
Lens Type    Fixed
Mount Type  Ceiling
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor, Weather Resistant
Voltage  12vDC, 24vAC, PoE
Automatic Gain Control (AGC)    Automatic
Dimensions (W x H)  9.5” x 5.9” (240 x 150 mm)
Operating Humidity    up to 90% RH (non-condensing)
Operating Temperature    -40°F ~ 122°F (-40°C ~ 50°C)
OSD Menu    4 configurable regions
Power Consumption  max 10W@12VDC, PoE
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, FTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMP v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLS, SRTP, RTMP, IEEE802.1X
Scanning System    Progressive
Signal System    NTSC/PAL
Weatherproof    IP66
Angle of View    Horizontal: 12°
Motion Detection Tracking    Supported
AudioYes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Mirror    Yes
ONVIF  Yes
