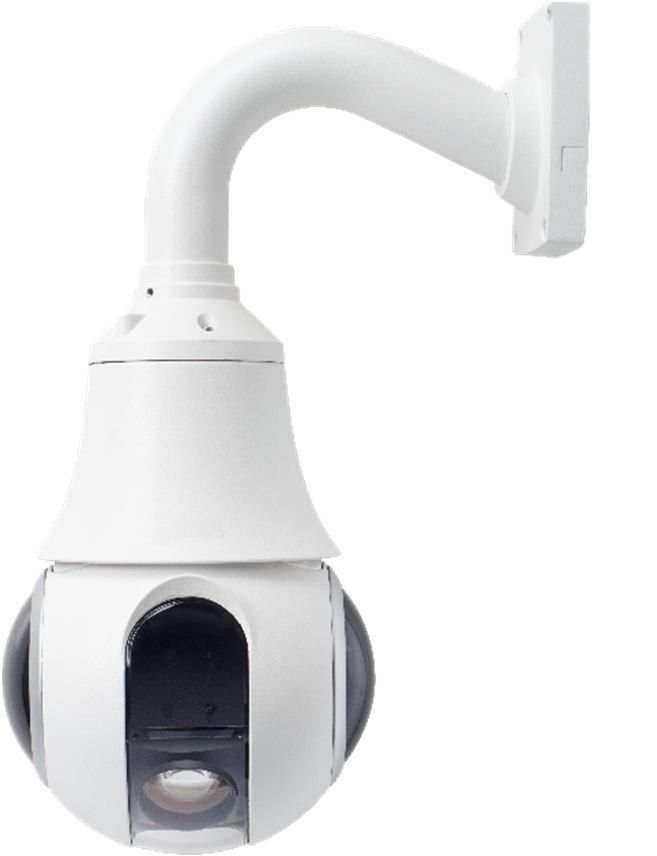

Ganz ZN8-P5NTAF62L 3 Megapixel Network IR Outdoor PTZ Camera, 12x Lens

SKU
ZN8-P5NTAF62L
Model No
ZN8-P5NTAF62L
$1,127.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.8″ Progressive scan
  • 12x Zoom, 16x Digital
  • 2048x1536 @25fps
  • Multiple Stream
  • IP66 Protection Class

The ZN8-P5NTAF62L from Ganz is an equipped with a high intensity zoom lens. PTZ camera delivers unparalleled image quality with its 3MP resolution and built-in 4.7mm - 56.4mm lens, 12x optical zoom, and 16x digital zoom. Unmatched True wide dynamic range (WDR) capability ensures that scenes are faithfully reproduced without excessively dark or bright areas being compromised. The WDR capability also ensures much more accurate color rendition over the entire scene. The camera comes with smart IR LEDs covering a distance of up to 100m range. The combination of very high resolution, superb image quality, and 3D noise reduction ensures that modern DVRs can take advantage of the best possible recorded image quality whilst ensuring the best.

Ganz ZN8-P5NTAF62L Camera Features

  • 1/2.8” Progressive scan: Provides high-quality imaging and extreme clarity in various lighting conditions.
  • 12x Zoom, 16x Digital: Allows for close-ups and detailed views even from a distance, enhancing surveillance capabilities.
  • 2048x1536 @25fps: High frame rate at high resolution ensures smooth video playback and reduces motion blur.
  • Multiple Stream: Enables simultaneous streaming for different applications, increasing flexibility in video management.
  • IP66 Protection Class: Ensures durability and protection against dust and water, making it ideal for outdoor use.
  • Smart IR up to 100m: Provides clear nocturnal imagery with illuminated video footage in complete darkness.
  • Low Bitrate: Saves on storage and bandwidth without compromising video quality.
  • 3D DNR, dWDR, ICR, Defog: Advanced processing technologies improve image quality under challenging conditions.

Ganz ZN8-P5NTAF62L Detailed Specifications

Camera Sensor1/2.8" Progressive Scan
Optical Zoom12x
Digital Zoom16x
Resolution2048x1536 @ 25fps
Protection ClassIP66
IR RangeUp to 100m
Special Features3D DNR, dWDR, ICR, Defog
Video StreamingMultiple Stream Support
SKU  ZN8-P5NTAF62L
Features  Weather Resistant, Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    3 Megapixel
Lens Type    Motorized Zoom
Lens Size    12X
Mount Type  Wall
Compression Method    M-JPEG
Durability    Weather Resistant
Voltage  PoE
Dimensions (W x H)  321mm (H) x 146mm (Ø)
Image Device    1/2.8” CMOS
Minimum Scene Illumination  0.01 Lux (color), 0.001 Lux (b/w), 0 Lux (IR on)
Operating Temperature    -40°C - +65°C
Power Consumption  25W
Protocols  HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPoE, Unicast, Multicast, ONVIF 2.2 S
Weatherproof    IP66
Digital Noise Reduction    3D DNR
IR Distance  100m/328 ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
