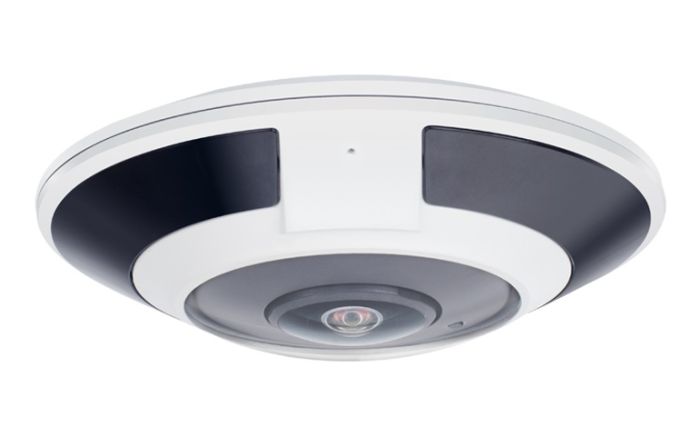

Ganz ZN8-F12F18NL 12 Megapixel 360° Fisheye Dome Camera, 1.8mm lens
SKU
ZN8-F12F18NL
Model No
ZN8-F12F18NL
$559.01
Product Highlights
- 1/1.7″ Progressive Scan CMOS
- 360° Panoramic
- 12 Megapixel Resolution
- 3D DNR, dWDR, ICR, BLC, ROI, Defog, EIS
- 6 SMART IR LEDs (49' range)
Speak to an expert
The Ganz ZN8-F12F18NL 12 Megapixel 360° Fisheye Dome Camera offers exceptional surveillance capabilities with its 360° panoramic view and high-resolution imaging. Equipped with advanced features like dewarping, infrared night vision, and a robust design, this camera is ideal for various monitoring applications, ensuring clarity and coverage regardless of the lighting conditions.
Ganz ZN8-F12F18NL Camera Features
- 1/1.7” Progressive Scan CMOS: Provides high-quality, detailed imaging for precise monitoring.
- 360° Panoramic: Ensures complete coverage of areas without blind spots, making it perfect for surveillance.
- 12 Megapixel Resolution: Delivers sharp and clear images, allowing for enhanced recognition of objects and faces.
- 3D DNR, dWDR, ICR, BLC, ROI, Defog, EIS: Incorporates advanced image processing technologies for superior performance in different environments.
- 6 SMART IR LEDs (49’ range): Guarantees visibility in low-light conditions up to 49 feet, enhancing security at night.
- Multiple Dewarping Modes: Allows for flexible viewing options, providing a non-distorted, clear view of the entire scene.
- IP66 Rated: Designed to withstand harsh weather conditions, ensuring durability and reliability.
- PoE / 12VDC: Offers flexible power supply options for easy installation and setup.
Detailed Camera Specifications for Ganz ZN8-F12F18NL
| Camera Type | Fisheye Dome Camera |
| Max Resolution | 12 Megapixels |
| Lens | 1.8mm fixed lens |
| IR Range | Up to 49 feet |
| Weather Rating | IP66 |
| Power Options | PoE / 12VDC |
| Image Processing | 3D DNR, dWDR, ICR, BLC, ROI, Defog, EIS |
| Viewing Angle | 360° |
SKU  | ZN8-F12F18NL |
|---|---|
| Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 12 Megapixel |
| Mount Type | Pole, Wall |
| Compression Method | M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 5.1”(Ø) x 1.5”(H) / 130mm(Ø) x 38.3mm(H) |
| Electronic Shutter | 1/5 - 1/20000 |
| Image Device | 1/1.7” Progressive Scan CMOS |
| IR LEDs | 6 IR LEDs |
| Minimum Scene Illumination | Color: 0.009 Lux@ (F1.2,AGC ON), B/W: 0 Lux@ (IR LED ON) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -40°F ~ 140°F |
| OSD Menu | English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
| Power Consumption | 5W (IR LED Off) / 9W IR LED (On) |
| Protocols | IPv4, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP , IGMP, Unicast & Multicast |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D / 3D |
| Angle of View | 360° (180° x 180°) |
| IR Distance | 14.9352m/49ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
