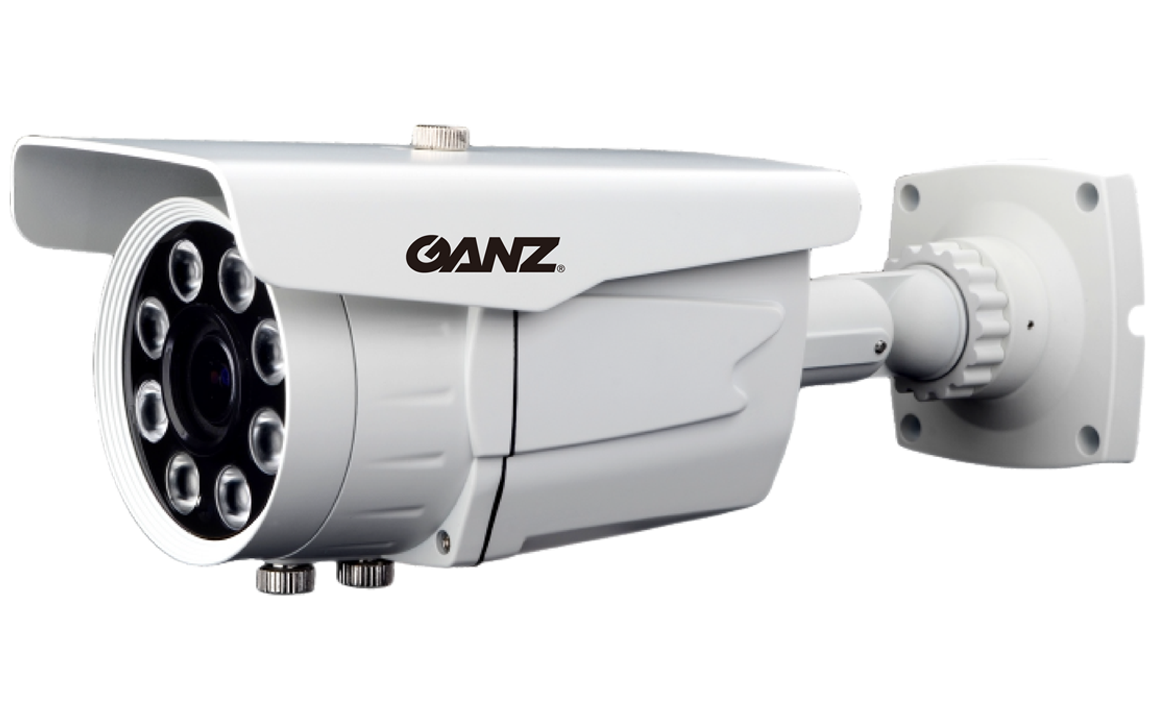

Ganz ZN8-B4NVF56 2 Megapixel HD Outdoor IR Bullet Camera with 2.8-12mm Lens
SKU
ZN8-B4NVF56
Model No
ZN8-B4NVF56
$185.94
Product Highlights
- 1080p HD Resolution
- 1/3" Progressive Scan CMOS
- 2.8-12mm Fixed Lens
- True Day/Night
- Smart IR
Speak to an expert
The ZN8-B4NVF56 from Ganz is a 1080p HD outdoor IR bullet camera with a versatile 2.8-12mm lens, designed for superior surveillance in various lighting conditions. This high-performance camera is equipped with advanced features like True Day/Night functionality, Smart IR technology, and robust IP66 weatherproofing to ensure reliable monitoring day and night.
Ganz ZN8-B4NVF56 Camera Features
- 1080p HD Resolution: Provides crystal-clear video quality, ensuring that critical details are captured clearly.
- 1/3" Progressive Scan CMOS: Offers improved image quality and performance in low-light situations.
- 2.8-12mm Fixed Lens: Allows for adjustable focal length to meet various surveillance needs.
- True Day/Night: Automatically switches between day and night modes for optimal performance in all lighting conditions.
- Smart IR: Enhances night vision capabilities, providing clear images even in complete darkness.
- Digital WDR: Improves visibility in high-contrast lighting situations, ensuring no detail is lost.
- 3D Digital Noise Reduction: Reduces image noise, resulting in cleaner, clearer recordings.
- 8 IR LEDs for 131' - 164' Range: Enhances night vision with strong infrared illumination for extended distance.
- PoE / 12VDC: Flexible power options simplify installation and setup.
- IP66 Rating: Ensures excellent weather resistance, making it suitable for outdoor use.
Detailed Camera Specifications for Ganz ZN8-B4NVF56
| Model | ZN8-B4NVF56 |
| Resolution | 1080p HD |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Lens Type | 2.8-12mm Fixed Lens |
| Night Vision | True Day/Night with Smart IR |
| Weather Rating | IP66 |
| Infrared Range | 131' - 164' |
| Power Supply | PoE / 12VDC |
| Digital WDR | Yes |
| Noise Reduction | 3D Digital Noise Reduction |
SKU  | ZN8-B4NVF56 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 11.7“(L) x 4.0“(W) × 3.8“(H) / 297.2mm(L) x 101.6mm(W) x 96.5mm(H) |
| Electronic Shutter | 1/5 - 1/20000 |
| Image Device | 1/3" CMOS |
| Image Pixels-Effective | 1920 (H) x 1080 (V) |
| IR LEDs | 8 |
| Minimum Scene Illumination | 0.2 Lux (Color, AGC on), 0 Lux (IR on) |
| Operating Humidity | Less than 90% RH (non-condensing) |
| Operating Temperature | -4°F ~ 131°F / -20°C ~ 55°C |
| Power Consumption | 2.5W (IR LED OFF) 5W IR LED ON |
| Protocols | HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPoE, Unicast / Multicast, ONVIF |
| Digital Noise Reduction | 2D / 3D |
| Angle of View | 89° - 35° |
| Automatic White Balance | Auto |
| IR Distance | 49.98m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
