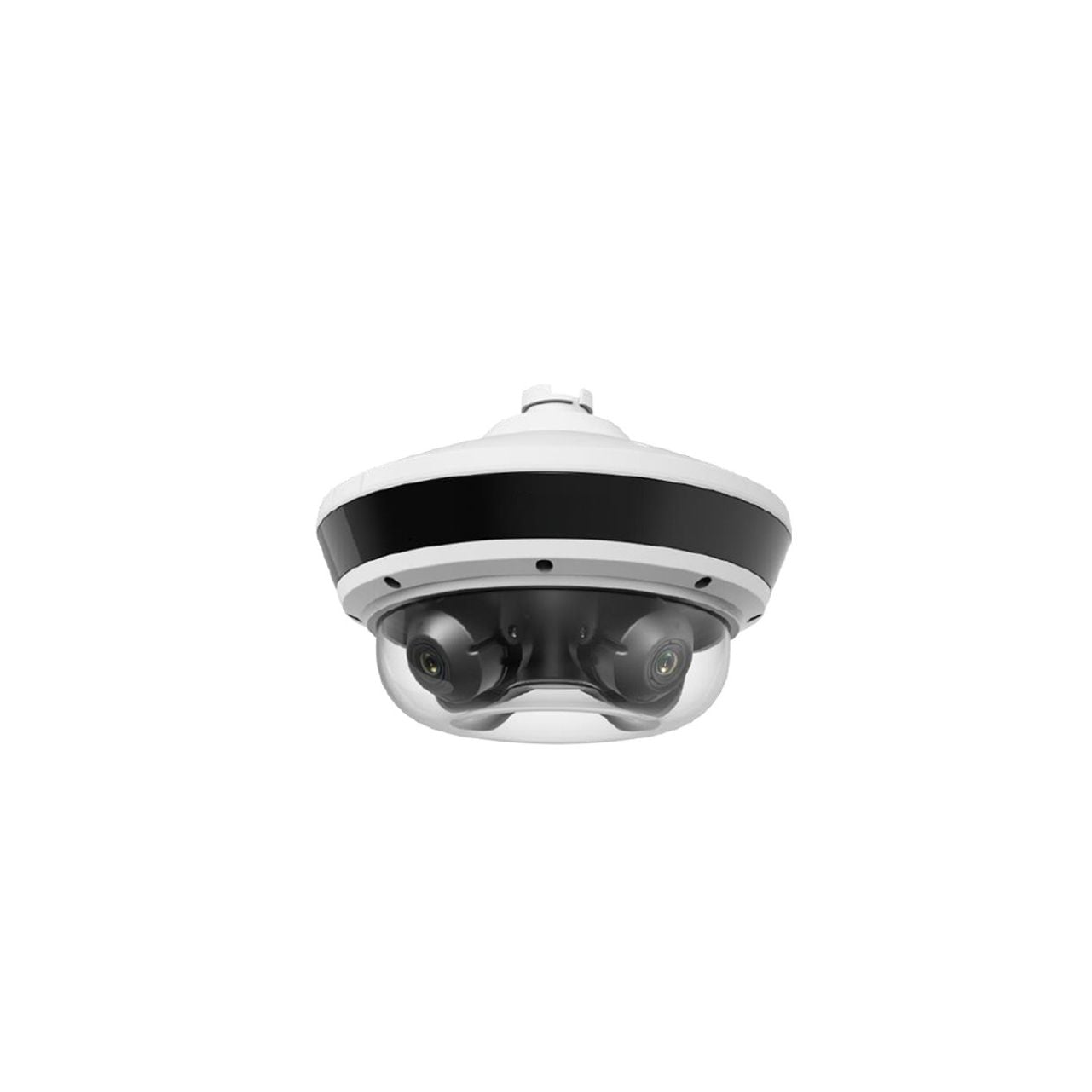

Ganz ZN8-4D6DTMZ71 4 x 5 Megapixel Network IP 4-Directional Multi-Sensor Camera with 2.7-13.5mm Lens
SKU
ZN8-4D6DTMZ71
Model No
ZN8-4D6DTMZ71
$3,500.00
Product Highlights
- Four (4) 5MP 1/2.8" STARVIS CMOS image sensors
- Four (4) adjustable lenses in one camera, each lens up to 5 MP (2592 × 1944) @25/30 fps
- 2.7 to 13.5mm motorized lens
- True WDR, 3D DNR, ROI, HLC, BLC, Defog
- Support face, human, vehicle detection and capture
Speak to an expert
The Ganz ZN8-4D6DTMZ71 is a cutting-edge 4-directional multi-sensor camera designed to provide exceptional surveillance capabilities. Equipped with four 5MP STARVIS CMOS image sensors and an adjustable motorized lens, this camera ensures high-quality imaging and advanced detection features for superior security performance.
Ganz ZN8-4D6DTMZ71 Camera Features
- High-Resolution Sensors: Four (4) 5MP 1/2.8" STARVIS CMOS image sensors deliver stunning detail and clarity, ensuring accurate identification of subjects.
- Multi-Lens Configuration: Four (4) adjustable lenses enable versatile monitoring options, capturing high-quality images at up to 5 MP (2592 × 1944) @25/30 fps.
- Motorized Lens: The 2.7 to 13.5mm motorized lens allows for flexible zooming and focusing, adapting to various surveillance scenarios with ease.
- Advanced Image Processing: True WDR, 3D DNR, ROI, HLC, BLC, and Defog features ensure optimal image quality in diverse lighting conditions and environmental challenges.
- Intelligent Detection: Supports face, human, and vehicle detection and capture, enhancing security by providing relevant alerts and reducing false alarms.
Detailed Camera Specifications for Ganz ZN8-4D6DTMZ71
| Image Sensor | 4 x 5MP 1/2.8" STARVIS CMOS |
| Lens Type | Motorized, 2.7 to 13.5mm |
| Max Resolution | 2592 × 1944 |
| Frame Rate | 25/30 fps |
| Features | True WDR, 3D DNR, ROI, HLC, BLC, Defog |
| Intelligent Detection | Face, human, vehicle detection |
SKU  | ZN8-4D6DTMZ71 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Ganz |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 20 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-13.5mm |
| Mount Type | Pendant |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+, 12vDC |
| Dimensions (W x H) | Φ282 × 206.3 mm (φ11.1 × 8.12 inch) , (Bracket not included) |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
| Image Device | 4 × 1/2.8” Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F ) |
| Power Consumption | Max. 20 W |
| Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
| Weatherproof | IP67, IK10 |
| Digital Noise Reduction | 2D/3D DNR |
| Mirror | Support |
| Angle of View | H: 95.6° to 26.9°, V: 65.4° to 20.5° |
| Rotation Angle | 0˚ to 355˚ |
| Automatic White Balance | Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
