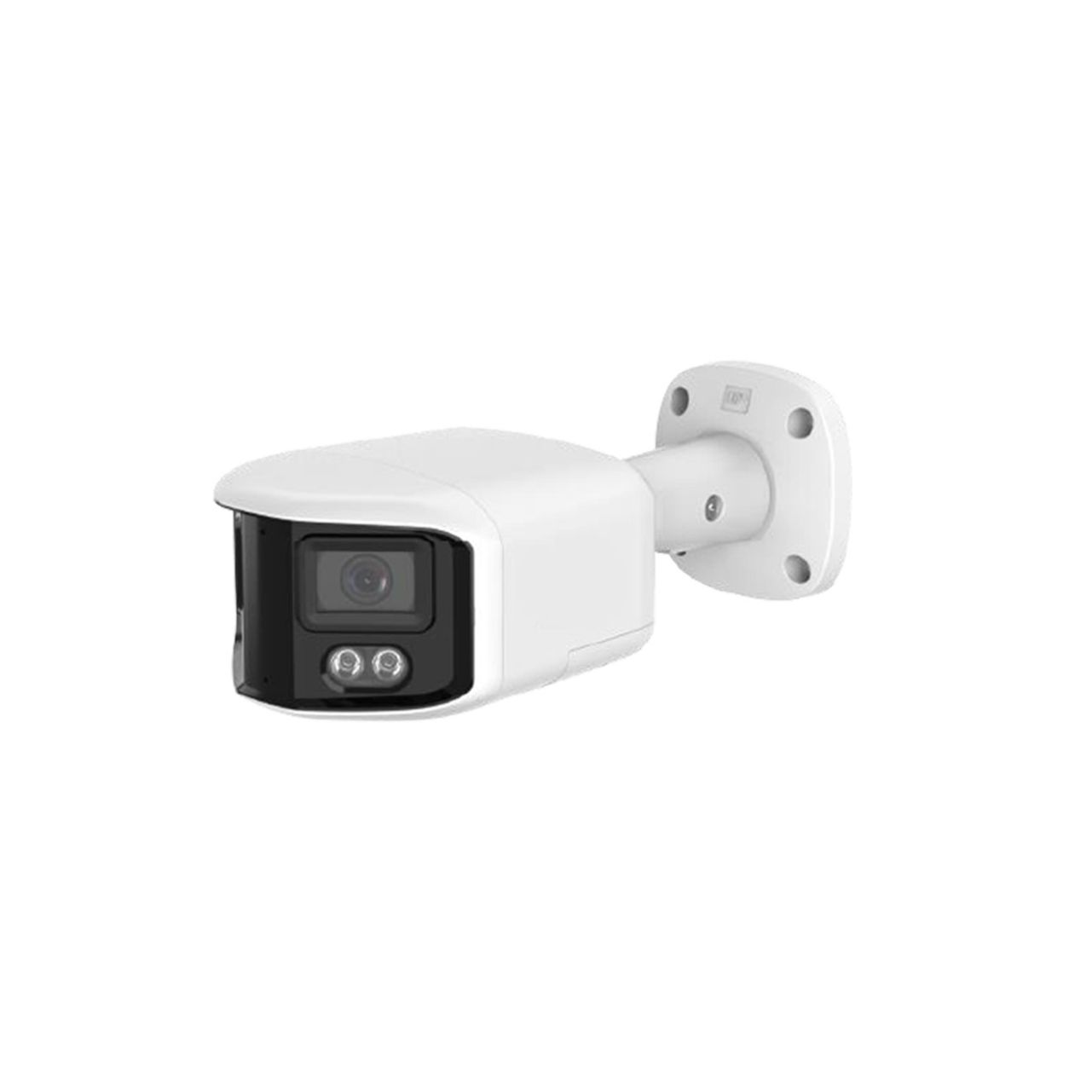

Ganz ZN8-2D8WTFN3 8 Megapixel Network IP 180° Panoramic Bullet Camera with 2.8mm Dual Lens
SKU
ZN8-2D8WTFN3
Model No
ZN8-2D8WTFN3
$900.00
Product Highlights
- Sensors 1/2.8” progressive scan CMOS
- 180° wide angle splicing image output
- 8MP (4608×1728)@15 fps, and supports 2592×1944 @15fps
- Support human and vehicle detection and capture
- Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, illegal parking and heat map
Speak to an expert
Ganz ZN8-2D8WTFN3 is a high-resolution 8-megapixel network IP panoramic bullet camera designed for wide-area surveillance. Featuring a dual 2.8mm lens system, it delivers a seamless 180° panoramic view, ensuring maximum coverage with fewer cameras required. This camera combines panoramic visibility, high-definition clarity, and rugged design, making it a powerful solution for organizations seeking efficient wide-area monitoring with reduced blind spots.
Features
- Sensors 1/2.8” progressive scan CMOS
- 180° wide angle splicing image output
- 8MP (4608×1728)@15 fps, and supports 2592×1944 @15fps
- Support human and vehicle detection and capture
- Intelligent analysis: intrusion, single line crossing, double line crossing, loitering, wrong-way, people counting, illegal parking and heat map
- True WDR, 3D DNR, ROI, Defog, HLC
- Built-in warm light and IR light, max. illumination distance up to 30 m (98.4 ft)
- Audio: 1ch in,1ch out; built-in Mic and speaker; support two-way talk
- Alarm: 1ch in,1ch out; built-in SD card slot, up to 256GB
- 12VDC, PoE
- IP66
- NDAA compliant
SKU  | ZN8-2D8WTFN3 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution |
| Manufacturer | Ganz |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 227.7 × 110 × 80 mm (8.96 × 4.33 × 3.15 inch) |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
| Image Device | Dual 1/2.8” Progressive Scan CMOS |
| IR LEDs | 2 |
| Minimum Scene Illumination | Color: 0.01 Lux @ (F1.6,AGC ON) , B/W: 0.001 Lux @ (F1.6,AGC ON) , 0 Lux with Illuminator on |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F ) |
| Power Consumption | Max 11.5 W |
| Protocols | IPv4/IPv6, TCP/IP, HTTP, HTTPS, UPnP, UDP/IP, RTSP/RTCP/RTP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1x, UDP, ICMP, ARP, TLS |
| S/N Ratio | 55dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D/3D DNR |
| Mirror | Support |
| Angle of View | H: 180°, V: 63° |
| Rotation Angle | 0°~360° |
| Motion Detection Tracking | Support |
| Automatic White Balance | Auto/Manual |
| IR Distance | 20m/65.6ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
