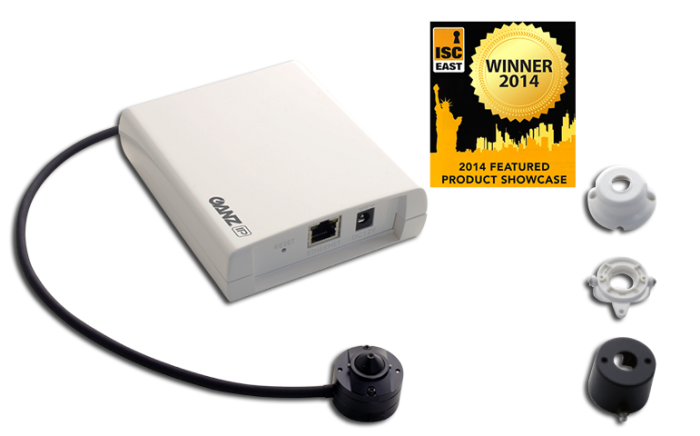

Ganz ZN1A-V4FN3 2 Megapixel Network Indoor Specialty Camera, 2.8mm Lens

SKU
ZN1A-V4FN3
Model No
ZN1A-V4FN3
$373.88
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Full HD 1080p @ 30fps
  • Imbedded Intelligence Technology
  • Image rotation for vertically oriented space
  • Digital Day/Night and WDR
  • SDXC Edge Recording (up to 32GB)

The ZN1A-V4FN3 from Ganz is a pinhole IP camera featuring GXi Technology, maximizing surveillance capabilities with advanced Imbedded Intelligence and SDXC Edge Recording. This full-featured series offers powerful video analysis for various applications including intrusion detection, people counting, and loitering detection, alongside camera tampering and failure detection.

Ganz ZN1A-V4FN3 Camera Features

  • Full HD Resolution: Provides stunning video quality at 1080p @ 30fps, ensuring clear and detailed images for effective surveillance.
  • Imbedded Intelligence Technology: Enhances security measures with sophisticated features such as intrusion detection, enabling proactive monitoring and response.
  • Image Rotation: Offers flexibility for vertically oriented installations, ensuring optimal views regardless of camera positioning.
  • Digital Day/Night with WDR: Delivers superior performance in varying light conditions, facilitating around-the-clock surveillance without compromise.
  • SDXC Edge Recording: Supports up to 32GB, allowing significant video storage directly on the device, reducing reliance on network bandwidth.
  • Power over Ethernet: IEEE 802.3af compliant, simplifying installation with a single cable for both power and connectivity.

Detailed Camera Specifications for Ganz ZN1A-V4FN3

Camera Type2 Megapixel Network Indoor Specialty Camera
Lens2.8mm
Video Resolution1080p @ 30fps
Imbedded Intelligence FeaturesIntrusion detection, People counting, Loitering detection, Tampering detection
Record StorageSDXC up to 32GB
Power SupplyPower over Ethernet (IEEE 802.3af)
Dynamic RangeDigital Day/Night and WDR
Installation FlexibilityImage rotation for vertical orientation
SKU  ZN1A-V4FN3
Features  Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    2.8mm
Mount Type  Bracket Required
Compression Method    M-JPEG
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  Camera Unit: 1.1" ø x 1" H / 28.1 ø x 25.0mm H, Main Unit: 4.2" W x 1.0" H x 4.9"D / 107.0 W x 36.0 H x 124.0 D
Electronic Shutter    2X ~ 16X
Image Device    1/3” 1080p CMOS
Image Pixels-Effective1920 x 1080
Minimum Scene Illumination  Color: 1.0 lux / BW: 0.007 lux (DSS ON)
Operating Humidity    up to 85% RH (non-condensing)
Operating Temperature    14°F ~ 122°F / -10°C ~ 50°C (short interval 131°F / 55°C)
Power Consumption  6W
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3 (MIBII), IGMP, ICMP, SSLv2/v3, TLSv1
Scanning System    Progressive scanning
Angle of View    Horizontal: Approx. 70°, Vertical: Approx. 36°
Back Light Compensation  On (possible to designate zone) / Off
Automatic White Balance    ATW / Manual
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
