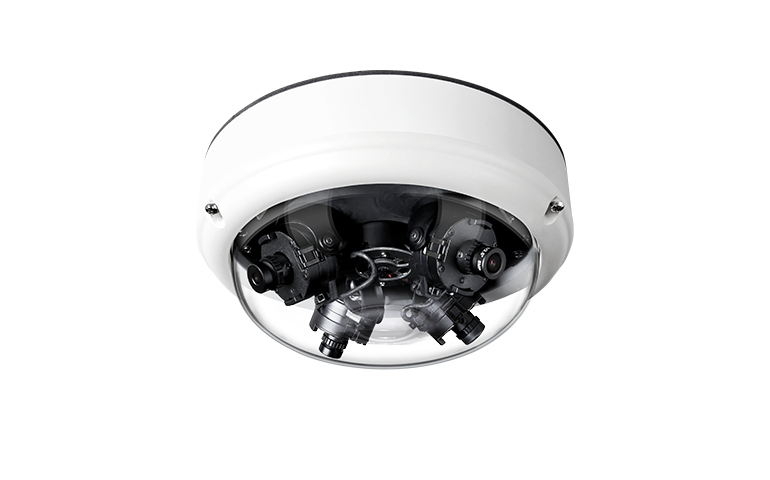

Ganz ZN1A-MS4E 16 Megapixel 360° Surround View Outdoor IP Camera, No Lens

SKU
ZN1A-MS4E
Model No
ZN1A-MS4E
$1,092.62
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 4x 4MP (16MP) 1/3″ Progressive scan sensor
  • 4MP at 30fps per sensor
  • 2.8mm, 4mm and 6mm lens options
  • Flexible positioning for four camera heads
  • Easy position setting by a magnet

The ZN1A-MS4E from Ganz is a state-of-the-art 16 megapixel 360° surround view outdoor IP camera designed to deliver exceptional performance and flexibility for all your surveillance needs.

Ganz ZN1A-MS4E Camera Features

  • 4x 4MP (16MP) 1/3” Progressive scan sensor: Provides high-resolution images that ensure every detail is captured for superior monitoring.
  • 4MP at 30fps per sensor: Offers smooth video recording, making it ideal for high-motion environments.
  • 2.8mm, 4mm and 6mm lens options: Gives users the flexibility to choose the right lens for various surveillance needs and viewing distances.
  • Flexible positioning for four camera heads: Allows for custom installation to cover multiple areas without the need for multiple cameras.
  • Easy position setting by a magnet: Simplifies installation and adjustments, saving time and effort while ensuring perfect camera positioning.
  • One IP address for four cameras: Reduces network complexity by managing multiple feeds under a single address, simplifying connectivity.
  • True Day/Night and True WDR: Ensures optimal image quality in varying light conditions, making it versatile for day and night use.
  • IP66 rated for outdoor performance: Guarantees durability and protection against harsh weather, making it suitable for all outdoor installations.

Detailed Specifications for Ganz ZN1A-MS4E

Megapixels16
Sensor Type1/3” Progressive scan
Frame Rate30fps per 4MP sensor
Lens Options2.8mm, 4mm, 6mm
Camera Heads4
Positioning MethodMagnet
IP AddressingSingle IP for four cameras
Day/Night FeaturesTrue Day/Night
WDR FeatureTrue WDR
Weather RatingIP66
SKU  ZN1A-MS4E
Features  Audio, Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    16 Megapixel
Lens Type    Not Included
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Weather Resistant
Voltage  12vDC, PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  7.5 ø x 3.5” (190mm ø x 90mm)
Electronic Shutter    Auto / Manual: 1/30 ~ 1/32,000, Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/10)
Image Device    4 x 4MP 1/3” Progressive scan sensor
Minimum Scene Illumination  0.41 Lux, F2.0
Operating Humidity    10 ~ 90% RH (non-condensing)
Operating Temperature    4°F ~ 12°F / -20°C ~ 50°C
OSD Menu    16 programmable zones per sensor
Power Consumption  max 18W at DC12V
Protocols  Zero configuration (Auto IP) ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2)
S/N Ratio  50 dB
Scanning System    Progressive
Weatherproof    IP66
Digital Noise Reduction    3D-DNR
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Flickerless    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
