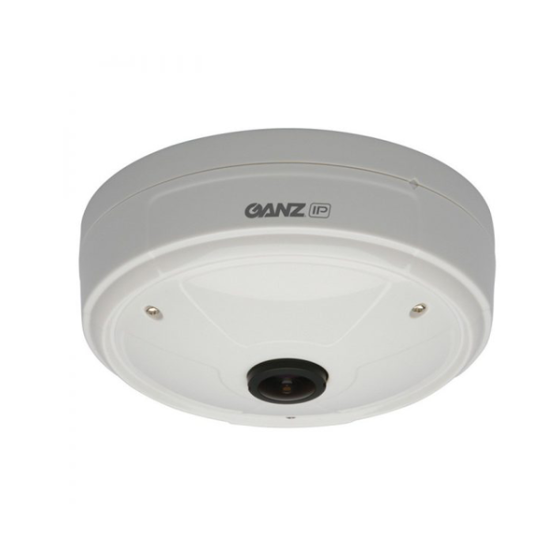

Ganz ZN1A-F5FN8I 3 Megapixel Indoor Network Fisheye Camera, 12mm Immervision Lens

SKU
ZN1A-F5FN8I
Model No
ZN1A-F5FN8I
$920.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 3 Megapixel @ 14fps
  • H.264, MJPEG
  • Extended viewing angle (360 °)
  • Supports Electronic PTZ
  • Memory slot microSD / SDHC

The ZN1A-F5FN8I from Ganz is designed to satisfy the demands of indoor applications, taking advantage of an extended viewing angle for the coverage of an area and a high optical certified for use of the SDK ImmerVision.

Ganz ZN1A-F5FN8I Camera Features

Features

  • 3 Megapixel @ 14fps: Delivers high-resolution imaging for clear and detailed video footage.
  • H.264, MJPEG: Supports advanced video compression formats allowing for efficient storage and bandwidth usage.
  • Extended viewing angle (360 °): Covers a wide area, reducing the need for multiple cameras.
  • Supports Electronic PTZ: Provides the capability to digitally pan, tilt, and zoom without moving the camera hardware.
  • Memory slot microSD / SDHC: Allows for local video storage, ensuring recordings can be easily accessed and managed.
  • Video Content Analysis: Enhances security by analyzing video data for specific events or patterns.
  • Text overlay: Enables the addition of relevant information, such as timestamps or camera identifiers, directly onto the video feed.
  • PoE (IEEE 802.3af): Simplifies installation by allowing power and data to be transmitted over the same Ethernet cable.
  • Supports protocol Onvif Profile S and G: Ensures interoperability with a wide range of surveillance equipment and software.

Detailed Camera Specifications for Ganz ZN1A-F5FN8I

Image Resolution3 Megapixel
Frame Rate14fps
Lens Type12mm Immervision Lens
Video CompressionH.264, MJPEG
Viewing Angle360 degrees
StoragemicroSD / SDHC
Power over EthernetYes, IEEE 802.3af
Video AnalysisYes
Text OverlayYes
Onvif SupportProfile S and G
SKU  ZN1A-F5FN8I
Features  Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    3 Megapixel
Lens Type    Fixed
Lens Size    12mm
Mount Type  Wall
Compression Method    M-JPEG
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Auto
Image Device    Sensor 1 / 2.5 "CMOS 5Megapixel
Image Pixels-Effective2048 x 1536
Minimum Scene Illumination  1 Lux, B / W: 0.001Lux (DSS ON)
Operating Humidity    <85% RH non-condensing
Operating Temperature    0 ° C ~ 50 ° C
Power Consumption  3.96W @ 12VDC
Privacy Zone    4 configurable areas
Protocols  QoS Layer 3 DiffServ, TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTCP, RTP / UDP, RTP / TCP, mDNS, UPnP ™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1 / v2c / v3 (MIB-II), IGMP, ICMP, SSLv2 / v3, TLSv1
Scanning System    Progressive scanning
Signal System    NTSC/PAL
Digital Noise Reduction    Supported (0 ~ 15)
Angle of View    Horizontal: Approx. 180 ° Vertical: Approx.180 °
Back Light Compensation  On (drawable areas) / Off
Automatic White Balance    ATW1 / ATW2 / Push / Manual
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
