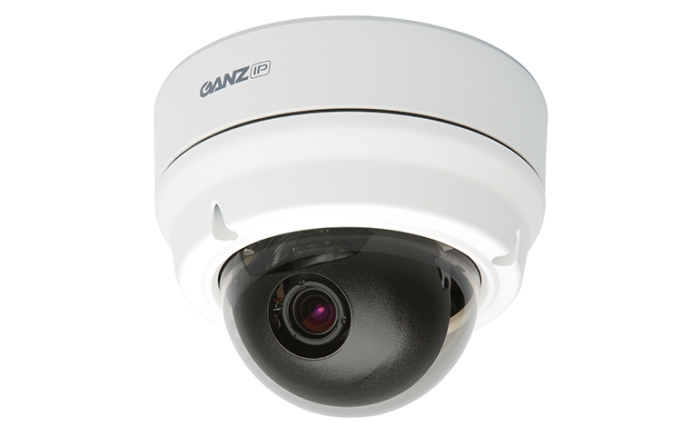

Ganz ZN1A-DNT352XE 2 Megapixel Network Outdoor Dome Camera, 3-9mm Lens

SKU
ZN1A-DNT352XE
Model No
ZN1A-DNT352XE
$805.36
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1080p HD resolution
  • Built-in 3-9mm lens
  • Imbedded Intelligence Technology
  • WDR and True Day/Night Performance
  • Text overlay for easy identification of video

The ZN1A-DNT352XE from Ganz is a feature-rich 2 Megapixel Network Outdoor Dome Camera designed to enhance your surveillance capabilities. With its advanced Imbedded Intelligence, Wide Dynamic Range (WDR) performance, and the ability to record video directly to an SD card, this camera stands out in terms of both functionality and reliability. Ideal for various applications such as intrusion detection, vehicle monitoring, and people counting, this camera ensures comprehensive coverage and analysis for your security needs.

Ganz ZN1A-DNT352XE Camera Features

  • 1080p HD Resolution: Provides high-quality video clarity for better image analysis and identification.
  • Built-in 3-9mm Lens: Offers versatile focal length, allowing for customized viewing angles to suit different monitoring scenarios.
  • Imbedded Intelligence Technology: Enables smart analysis for applications like intrusion detection and people counting, enhancing safety and efficiency.
  • WDR and True Day/Night Performance: Ensures clear imaging in varying light conditions, maintaining visibility round the clock.
  • Text Overlay: Simplifies video identification with clear labeling of key information.
  • Video Motion Detection: Provides proactive alerts for any detected movement, increasing security response efforts.
  • Dual-Streaming IP Video: Supports H.264 and MJPEG compression for flexible video management and storage options.
  • Full Video Recording to SD Cards: Allows easy storage and retrieval of footage (SD card not included), ensuring you have access to past records.
  • ONVIF Profile (S) Compliant: Ensures compatibility with a wide range of IP-based security systems for flexibility in deployment.
  • 12 VDC/PoE (IEEE 802.3af): Offers versatile powering options for easier installation and setup.
  • IP66 Rating: Guarantees protection against harsh weather conditions, making it suitable for outdoor installations.

Detailed Specifications for Ganz ZN1A-DNT352XE

Camera Type2 Megapixel Network Outdoor Dome
Lens3-9mm, Built-in
Video Resolution1080p HD
Imbedded IntelligenceYes
WDR PerformanceYes
Storage MediumSD Card (not included)
Video CompressionH.264, MJPEG
ONVIF ComplianceProfile (S)
Power Supply12 VDC/PoE (IEEE 802.3af)
Weather ResistanceIP66 Rated
SKU  ZN1A-DNT352XE
Features  Weather Resistant, Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3-9mm
Mount Type  Wall
Compression Method    M-JPEG
Durability    Weather Resistant
Voltage  PoE
Automatic Gain Control (AGC)    Auto
Electronic Shutter    1/5000s to 1/2s
Image Device    1/2.7” CMOS
Image Pixels-Effective1920 x 1080
Minimum Scene Illumination  Color: 0.5 Lux B/W, 0.001 Lux (DSS ON)
Operating Humidity    85% RH (non-condensing)
Operating Temperature    32°F ~ 122°F /0°C ~ 50°C -40°C ~ 50°C (-40°F ~ 122°F); [PoE] 0°C ~ 50°C, Heater: (32°F ~ 122°F);
Power Consumption  14.52W
Privacy Zone    4 configurable regions
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1
Scanning System    Progressive scanning
Signal System    NTSC , PAL
Weatherproof    IP66
Angle of View    Horizontal: Approx. 93°, Vertical: 68.4°
Back Light Compensation  On (possible to designate zone) / Off
Automatic White Balance    ATW1 / ATW2 / Push / Manual
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
