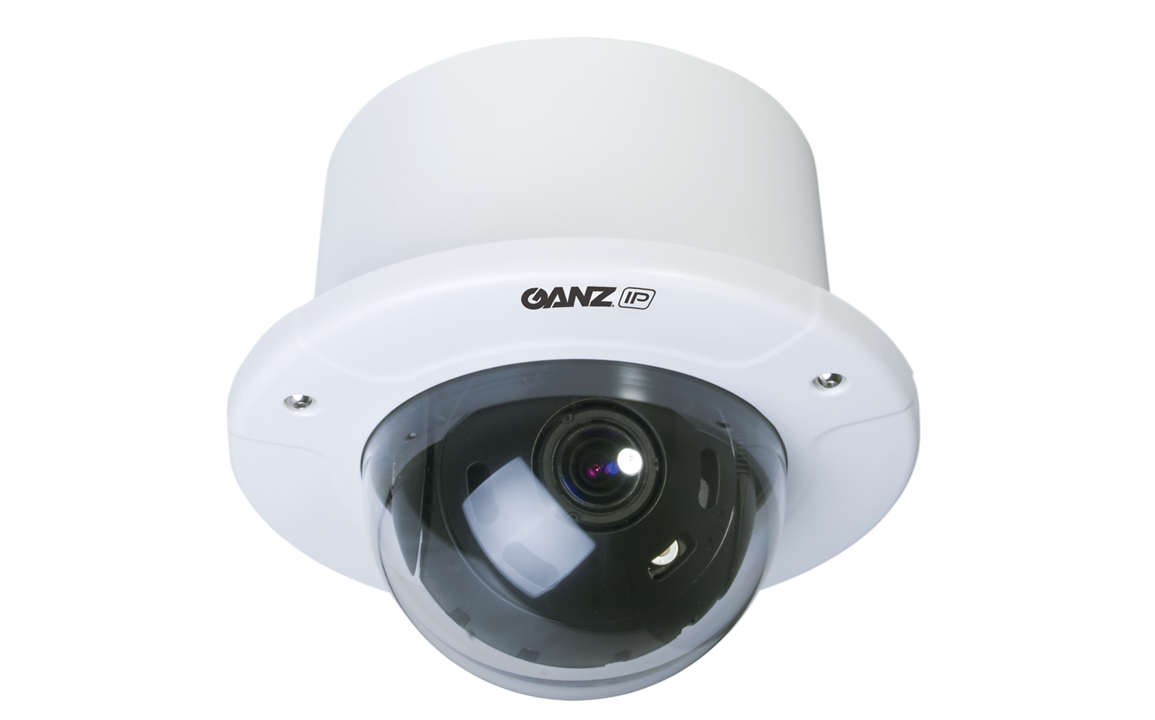

Ganz ZN1A-DN332XE-MPD 2 Megapixel Network Indoor Dome Camera, 3-9mm Lens

SKU
ZN1A-DN332XE-MPD
Model No
ZN1A-DN332XE-MPD
$1,005.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1080p HD resolution
  • Built-in 3-9mm Lens
  • Imbedded Intelligence Technology
  • Remote P/T & zoom (3x optical) control
  • Preset Positions

The ZN1A-DN332XE-MPD from Ganz is a pixelPro repositionable dome that boasts GXi Technology to enhance your surveillance experience. With features such as Imbedded Intelligence for advanced video analysis, WDR performance, and edge recording capabilities, this camera is designed to excel in various environments. Its high-definition resolution and versatile lens make it a standout choice for any indoor monitoring needs.

Ganz ZN1A-DN332XE-MPD Camera Features

  • Resolution: 1080p HD resolution for clear and detailed video, ensuring every detail is captured.
  • Lens: Built-in 3-9mm lens allows for versatile viewing angles, adapting to your specific monitoring requirements.
  • Intelligence: Imbedded Intelligence Technology includes advanced analytics for intrusion detection, vehicle monitoring, and more, enhancing security measures.
  • Control: Remote P/T & zoom (3x optical) control for convenient adjustments from afar, making it easier to focus on important areas.
  • Positions: Preset positions for quick access to commonly monitored areas, increasing efficiency during surveillance.
  • Performance: WDR and True Day/Night Performance for optimal video clarity in varying light conditions.
  • Management: ProSet system enables zoom and focus adjustments directly from your PC, simplifying camera management.
  • Detection: Video motion detection alerts for real-time monitoring and responsive actions.
  • Storage: Edge recording to SD cards (card not included) ensures data is stored securely and can be accessed easily.
  • Compatibility: ONVIF Profile (S) compliant for seamless integration with various surveillance systems.
  • Power: PoE (IEEE 802.3af) support for efficient power management and easy installation.

Ganz ZN1A-DN332XE-MPD Detailed Specifications

Camera ModelZN1A-DN332XE-MPD
Resolution1080p HD
Lens Type3-9mm
Imbedded IntelligenceYes
Optical Zoom3x
Day/Night FunctionalityTrue Day/Night
Recording TypeEdge recording to SD card
ONVIF ComplianceProfile S
Power SupplyPoE (IEEE 802.3af)
SKU  ZN1A-DN332XE-MPD
Features  Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3-9mm
Mount Type  Wall
Compression Method    M-JPEG
Durability    Indoor
Voltage  PoE
Automatic Gain Control (AGC)    Auto
Dimensions (W x H)  6.5”Ø x 5.3” H (165.3mm Ø x 134.7mm H)
Electronic Shutter    1/5000s to 1/2s
Image Device    1/2.7” 1080p CMOS
Image Pixels-Effective1920 x 1080
Minimum Scene Illumination  Color: 0.5 Lux / B/W : 0.001 Lux (DSS ON)
Operating Humidity    85% RH (non-condensing)
Operating Temperature    32°F ~ 122°F (0°C ~ 50°C)
Power Consumption  8.64W
Protocols  QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1
Scanning System    Progressive scanning
Signal System    NTSC , PAL
Angle of View    Horizontal: Approx. 93°, Vertical: 68.4°
Back Light Compensation  On (possible to designate zone) / Off
Automatic White Balance    ATW1 / ATW2 / Push / Manual
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
