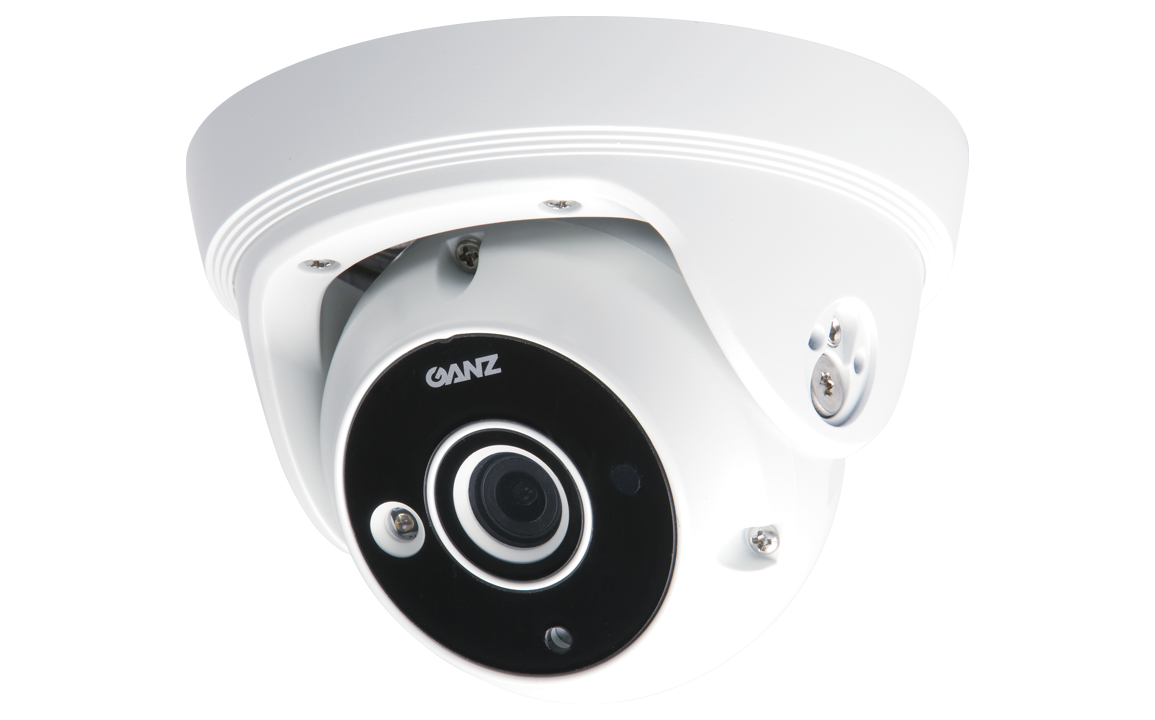

Ganz ZN-M4NTFN4L 2 Megapixel Outdoor IP Mini IR Dome Camera, 3.6mm Lens
SKU
ZN-M4NTFN4L
Model No
ZN-M4NTFN4L
$565.00
Product Highlights
- 1/2.8″ Sony ExmoR CMOS Sensor
- 1080p HD Resolution
- 3.6mm Fixed Lens)
- True Day/Night
- Privacy Masking
Speak to an expert
The ZN-M4NTFN4L from Ganz is a high-performance 1080p Outdoor IP Mini IR Dome Camera equipped with a 3.6mm Lens, providing exceptional video quality and reliability for outdoor surveillance. Its advanced features such as True Day/Night functionality, PoE supply, and IP66 weatherproof rating make it ideal for various security applications.
Ganz ZN-M4NTFN4L Camera Features
- 1/2.8” Sony ExmoR CMOS Sensor: Delivers superior low-light performance, ensuring clear images at night.
- 1080p HD Resolution: Offers high-definition video quality for detailed surveillance.
- 3.6mm Fixed Lens: Provides a versatile field of view suitable for various outdoor settings.
- True Day/Night: Automatically switches between day and night modes for optimal monitoring in all lighting conditions.
- Privacy Masking: Allows users to block specific areas in the video feed, ensuring privacy where needed.
- PoE Power Supply: Simplifies installation by allowing data and power to run through a single cable.
- Motion Triggered Alarm: Notifies users of activity, enhancing security through instant alerts.
- ONVIF Profile S Compliant: Ensures compatibility with a variety of surveillance systems and software.
- Dual Streaming Video: Supports simultaneous streaming of different quality videos, optimizing bandwidth usage.
- DPC (Defective Pixel Correction): Automatically corrects any defective pixels for clear imagery.
- 1 IR LED (16' range): Enables night vision capabilities, allowing effective monitoring in complete darkness.
- IP66 rated for all weather conditions: Ensures durability and operability in various environmental conditions.
Detailed Specifications for Ganz ZN-M4NTFN4L
| Sensor Type | 1/2.8” Sony ExmoR CMOS |
| Resolution | 1080p HD |
| Lens | 3.6mm Fixed |
| IR Capabilities | 1 IR LED (16' range) |
| Weatherproof Rating | IP66 |
| Power Supply | PoE |
| Video Streaming | Dual Streaming |
| Compliance | ONVIF Profile S |
| Privacy Masking | Yes |
| Motion Detection | Yes |
| Day/Night Functionality | True Day/Night |
| Defective Pixel Correction | DPC |
SKU  | ZN-M4NTFN4L |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | ø125(body)x76.7(H) max 87(H)mm ø83.3(dome), ø4.9(body) x 3(H) max 3.4(H) inch, ø3.3(dome) |
| Electronic Shutter | Manual: 1/4~1/2000, Auto: 1/25(30)~1/5000 |
| Image Device | 1/2.8" Sony Exmor CMOS |
| Image Pixels-Effective | 1984(H) x 1225(V) |
| IR LEDs | 1 IR LED |
| Minimum Scene Illumination | 0 lx with IR LED ON |
| Operating Humidity | less than 90%, Non-condensing |
| Operating Temperature | -10°C ~ 50°C (14°F~122°F) |
| Power Consumption | 430mA @ 12VDC, 5.2W130mA @ PoE, 6.2W |
| Privacy Zone | 4 area (8 color) |
| Protocols | IPv4, HTTP, SMTP, UPnP, DNS, RTSP, DDNS, RTP, TCP, UDP, RTCP, DHCP, ARP, FTP, IGMP, ICMP, NTP |
| S/N Ratio | 45 dB or more |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D Yes (Depends on Codec Configuration) |
| Angle of View | 86 / 46 / 100° |
| Motion Detection Tracking | User set 4 ROI(Region Of Interest), 30 Step Sensitivity |
| Automatic White Balance | ATW / MANUAL(PRESET) |
| IR Distance | 4.87m/16ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
