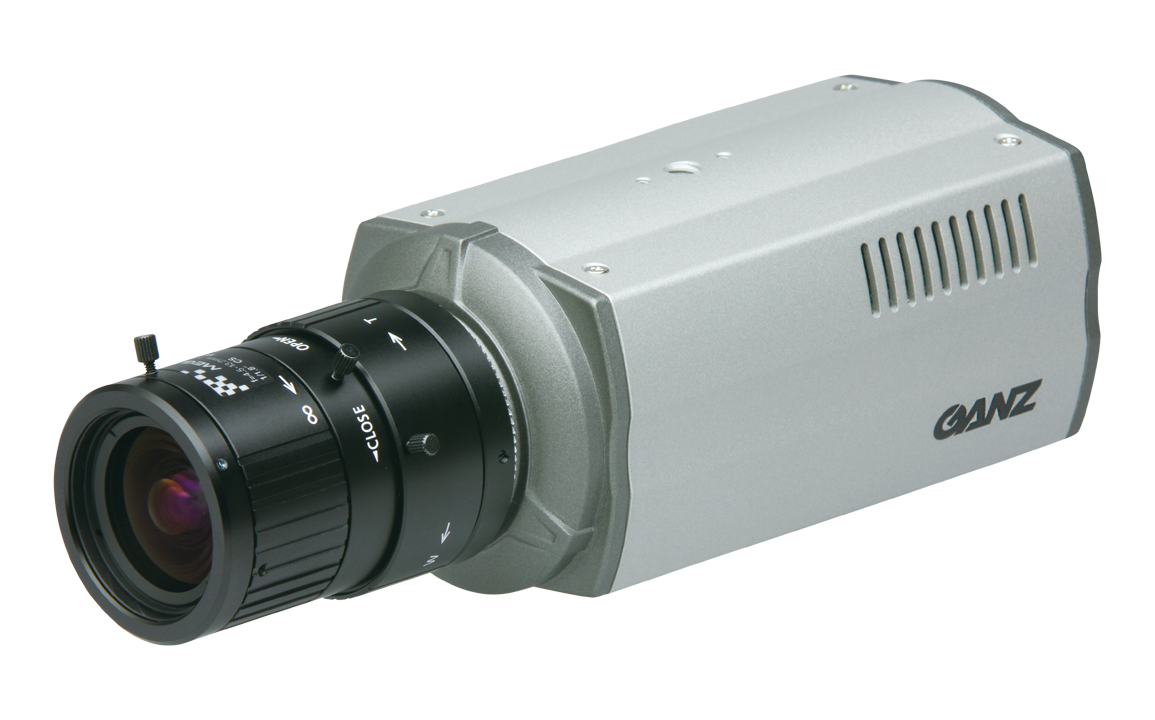

Ganz ZN-C6DHE 5 Megapixel Day/Night Box Camera
SKU
ZN-C6DHE
Model No
ZN-C6DHE
$405.49
Product Highlights
- 5 Megapixel
- 1/2.8″ Sony ExmoR CMOS Sensor
- True WDR and True Day/Night Performance
- C/CS Mount selectable
- Compatible with Computar Megapixel Lenses
Speak to an expert
The ZN-C6DHE from Ganz is a 5 megapixel day/night box camera designed for exceptional image quality and versatility in various lighting conditions. With advanced technologies and compatibility features, it provides reliable performance for surveillance applications.
Ganz ZN-C6DHE Camera Features
- 5 Megapixel: Offers high-resolution imaging for clear and detailed video surveillance.
- 1/2.8” Sony ExmoR CMOS Sensor: Ensures superior low-light performance and better image quality in challenging lighting conditions.
- True WDR and True Day/Night Performance: Delivers balanced exposure in scenes with varying light, enhancing visibility during day and night.
- C/CS Mount selectable: Allows flexibility in lens selection for tailored solutions based on specific monitoring needs.
- Compatible with Computar Megapixel Lenses: Expands lens options to optimize performance for specific applications.
- ONVIF Profile S Compliant: Ensures interoperability with a wide range of IP surveillance products.
- Dual-Streaming IP Video - H.264 and MJPEG Compression: Provides versatile streaming options for efficient bandwidth management without compromising quality.
Ganz ZN-C6DHE Detailed Specifications
| Model | ZN-C6DHE |
| Type | Day/Night Box Camera |
| Megapixels | 5 MP |
| Sensor | 1/2.8” Sony ExmoR CMOS |
| WDR | True WDR |
| Mount Type | C/CS Mount |
| Lens Compatibility | Computar Megapixel Lenses |
| Compliance | ONVIF Profile S |
| Video Compression | H.264, MJPEG |
| Streaming Options | Dual-Streaming |
SKU  | ZN-C6DHE |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Heater & Fan, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 64.6(W) x 60.3(D) x 122.4(L) mm 2.5(W) x 2.4(D) x 4.8(L) inch |
| Electronic Shutter | Manual: 1/4~1/2000, Auto: 1/25(30)~1/5000 |
| Image Device | 1/1.8" Sony ExmorR CMOS |
| Image Pixels-Effective | 2609 x 1960 (5.11M) |
| Minimum Scene Illumination | 0.06 lx (F1.2 / 30IRE) |
| Operating Humidity | less than 90%, Non-condensing |
| Operating Temperature | 0ºC ~ 40ºC (32ºF~104ºF) |
| Power Consumption | 372mA @ 12VDC, 4.5W, 196mA @ 24VAC, 4.7W, 94.4mA @ PoE, 4.5W |
| Privacy Zone | 4 area (8 color |
| Protocols | IPv4, HTTP, SMTP, UPnP, DNS, RTSP, DDNS, RTP, TCP, UDP, RTCP, DHCP, ARP, FTP, IGMP, ICMP, NTP |
| S/N Ratio | 48 dB or more |
| Digital Noise Reduction | 3D DNR, Yes (Depends on Codec Configuration) |
| Motion Detection Tracking | User set 4 ROI(Region Of Interest), 30 Step Sensitivity |
| Automatic White Balance | ATW / MANUAL(PRESET) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
