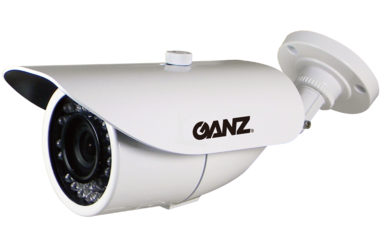

Ganz Z8-N4NVF56AN 1080p HD Outdoor IR Bullet Camera with 2.8-12mm Lens

SKU
Z8-N4NVF56AN
Model No
Z8-N4NVF56AN
$100.32
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1080p HD Resolution
  • 1/3" 1.3 Megapixel CMOS
  • HD-TVI Technology
  • 2.8-12mm Varifocal Lens
  • True Day/Night

The Z8-N4NVF56AN from Ganz is a 1080p HD outdoor IR bullet camera designed for superior surveillance performance. With its versatile 2.8-12mm lens, this camera ensures high-quality imagery in various lighting conditions, making it an ideal choice for both residential and commercial security needs.

Ganz Z8-N4NVF56AN Camera Features

  • 1080p HD Resolution: Provides crystal-clear video quality for uninhibited surveillance clarity.
  • 1/3" 1.3 Megapixel CMOS: Enhances low-light performance, delivering detailed images even in dim environments.
  • HD-TVI Technology: Supports high-definition video transmission over coaxial cable, maintaining quality at longer distances.
  • 2.8-12mm Varifocal Lens: Allows for adjustable focal lengths, giving the flexibility to capture wide-angle or close-up shots as needed.
  • True Day/Night: Automatically switches between day and night modes to optimize performance in varying light conditions.
  • 500 Meter Coaxial Cable Distance: Enables flexible installation options without compromising video quality.
  • Defog Digital WDR: Improves visibility in foggy or backlit conditions, ensuring clear images at all times.
  • 3D Digital Noise Reduction: Reduces video noise in low-light conditions, enhancing overall image clarity.
  • 36 IR LEDs: Provide excellent night vision capabilities, allowing the camera to capture clear footage in complete darkness.
  • 12VDC Power Supply: Easy to install and compatible with standard power sources.
  • IP66 Rating: Ensures durable, weather-resistant performance suitable for outdoor use.

Detailed Specifications for Ganz Z8-N4NVF56AN

Resolution1080p HD
Sensor Type1/3" 1.3 Megapixel CMOS
Lens Type2.8-12mm Varifocal
Night Vision36 IR LEDs
Power Supply12VDC
Weather ResistanceIP66 Rated
TechnologyHD-TVI
Coaxial Cable Distance500 Meters
Digital WDRDefog
Noise Reduction3D Digital Noise Reduction
SKU  Z8-N4NVF56AN
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Weather Resistant, Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     HD-AHD
Resolution    1080p
Sensor Option    1/3" CMOS
Lens Type    Varifocal
Lens Size    2.8-12mm
Infrared Distance    101 Feet +
Durability    Indoor, Weather Resistant
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    1/25s ~ 1/500,000s
Image Device    1/3" Sony CMOS
Image Pixels-Effective1920 (H) x 1080 (V)
IR Distance  35m/114.82 ft
Minimum Scene Illumination  0.001 Lux (Color, F1.2, AGC on), 0 Lux (IR on)
Operating Temperature    14° F - 131° F / -10° C - 55° C
Dimensions (W x H)  3.8 x 3.3 x 9.0 (in) / 97 x 84 x 228
Power Consumption  375mA max
S/N Ratio  More than 48db (AGC Off)
Scanning System    NTSC
Video Output    1 Ch HDVI HD
Weatherproof    IP66
Synchronization  Internal
Digital Noise Reduction    2/3DNR
Angle of View    89° - 35° FoV
Backlight Compensation    BLC/HLC/OFF
Automatic White Balance    ATW/AWC-SET/Indoor/Outdoor/MANUAL
IR LEDs  36
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Auto Gain Control    Yes
