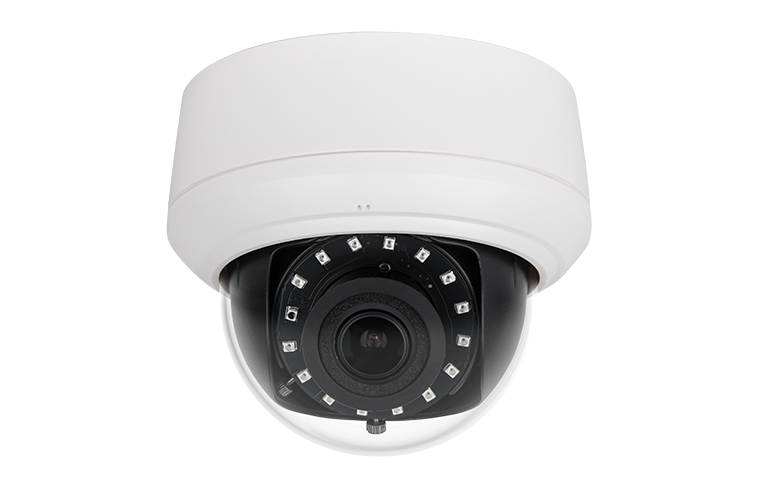

Ganz Z8-D2V-2 1080p AHD Indoor Hybrid IR Dome Camera with 2.8-12mm Lens

SKU
Z8-D2V-2
Model No
Z8-D2V-2
$116.16
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 1/2.8″ SONY Progressive Scan CMOS
  • 2.8-12mm Lens
  • Full HD 1080p @ 30fps
  • 4-in-one AHD/TVI/CVI/CVBS
  • True Day/Night

The Z8-D2V-2 from Ganz is a 1080p AHD indoor hybrid IR dome camera featuring a versatile 2.8-12mm lens, providing exceptional clarity and performance for monitoring indoor environments. This advanced camera supports multiple video output formats and delivers high-definition video with powerful night vision capabilities, making it an ideal choice for various security applications.

Ganz Z8-D2V-2 Camera Features

  • 1/2.8” SONY Progressive Scan CMOS: Enhanced image quality with excellent low-light performance ensures crisp visuals day and night.
  • 2.8-12mm Lens: Adjustable focal length allows you to capture a wide field of view or zoom in on specific areas, providing flexibility in monitoring.
  • Full HD 1080p @ 30fps: High-definition video recording at 30 frames per second delivers smooth motion and sharp images for better surveillance.
  • 4-in-one AHD/TVI/CVI/CVBS: Versatile compatibility with different video formats ensures easy integration into existing systems.
  • True Day/Night: Automatic switching between color and monochrome modes enhances visibility in varying lighting conditions.
  • 984’ (300m) Video Transmission: Extended transmission distance allows for flexible camera placement without sacrificing image quality.
  • IR Range 98’: Infrared night vision capability ensures reliable monitoring in complete darkness.
  • 3D DNR, WDR, ICR, BLC: Advanced noise reduction and dynamic range features improve image clarity and detail, even in challenging lighting situations.

Detailed Specifications for Ganz Z8-D2V-2

Image Sensor1/2.8” SONY Progressive Scan CMOS
Lens2.8-12mm
Video ResolutionFull HD 1080p @ 30fps
Video Output Format4-in-one AHD/TVI/CVI/CVBS
Day/Night FunctionalityTrue Day/Night
Transmission Distance984’ (300m)
IR Night Vision Range98’
Image Enhancements3D DNR, WDR, ICR, BLC
SKU  Z8-D2V-2
Features  Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Manufacturer  Ganz
Camera Signal     Analog, HD-AHD, HD-CVI, HD-TVI
Resolution    1080p
Sensor Option    1/2.8" CMOS
Lens Type    Varifocal
Lens Size    2.8-12mm
Infrared Distance    61~100 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC, 24vAC
Electronic Shutter    NTSC:1/30s-1/10000s
Image Device    1 / 2.8” Progressive Scan CMOS
IR Distance  29.87m/98ft
IR Wavelength  850nm
Minimum Scene Illumination  Color 0.001 Lux@ (F1.2,AGC ON) / B/W 0 LUX@ (IR LED ON)
Operating Humidity    0% - 85% RH
Operating Temperature    14°F ~ 131°F (-10°C ~ 55°C)
OSD Menu    5.1” (Ø) x 4.4” / 130mm (Ø) x 112mm
Power Consumption  4.5W (Max 12VDC, IR ON)
S/N Ratio  >50dB
Signal System    NTSC
Video Output    AHD / TVI / CVI / CVBS
Digital Noise Reduction    2D / 3D
Angle of View    H: 110°~39.3°, V: 60.5°~23.1°
IR LEDs  12
AudioYes
Back Light Compensation    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
