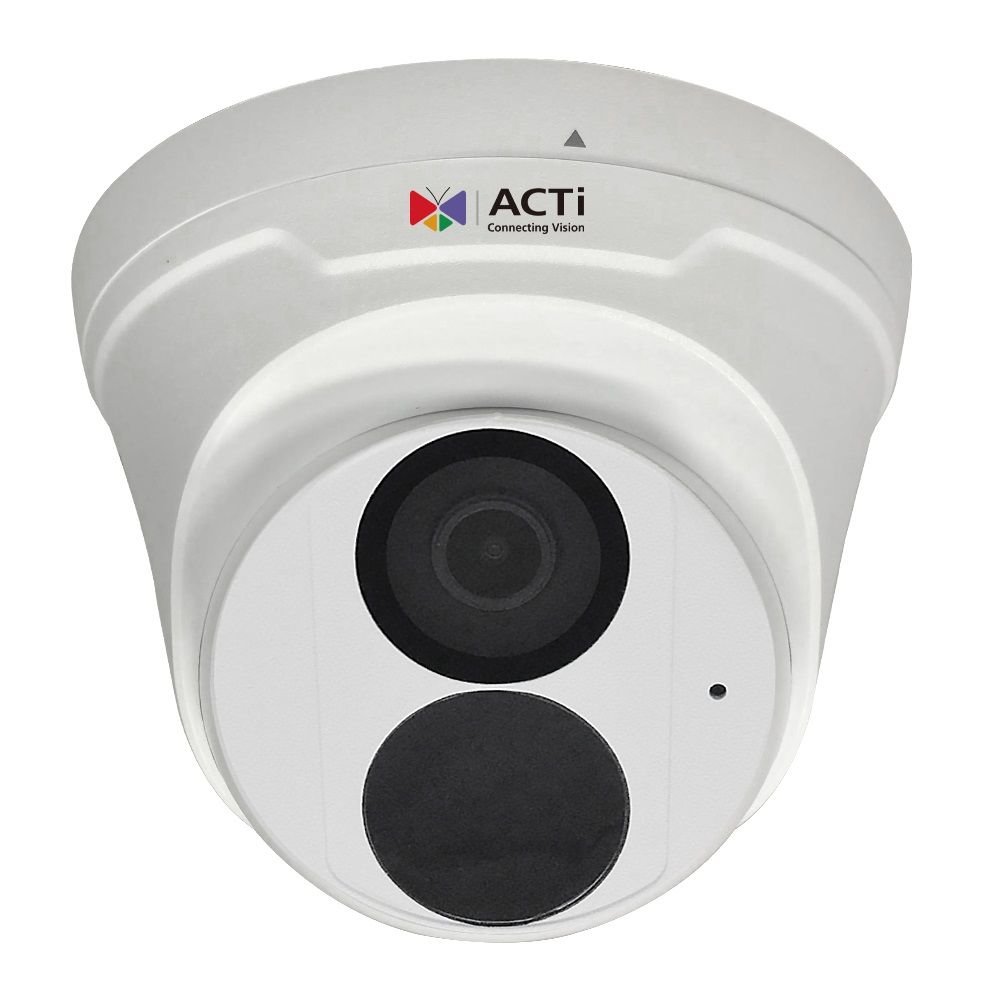

ACTi Z78 2 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
Model No
Z78
$283.50
Product Highlights
- 2 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
Speak to an expert
The Z78 from ACTi is a high-performance 2 megapixel network IR outdoor dome camera featuring a 2.8mm lens, designed to ensure security and surveillance in various lighting conditions. This advanced camera combines superior image quality with innovative technology, offering exceptional performance for both residential and commercial applications.
ACTi Z78 Camera Features
- 2 Megapixel: Captures high-resolution images ensuring clear and detailed footage for effective monitoring.
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED: Ensures dependable performance under all lighting conditions, enhancing visibility during night-time.
- Fixed Lens with f2.8mm/F2.0: Provides a wide field of view, making it suitable for various surveillance scenarios.
- Superior WDR: Maintains image clarity in challenging lighting situations, balancing bright and dark areas for better surveillance.
- H.265 Compression: Reduces bandwidth and storage requirements while maintaining high-quality video, optimizing efficiency.
- Super Wide Angle: Expands coverage area, eliminating blind spots for comprehensive surveillance.
ACTi Z78 Detailed Specifications
| Camera Type | 2 Megapixel Network IR Dome Camera |
| Lens | 2.8mm, F2.0 |
| Resolution | 1920 x 1080 (Full HD) |
| WDR | Superior Wide Dynamic Range |
| IR LED | Adaptive for enhanced low-light performance |
| Compression | H.265 |
| Field of View | Super wide angle for better coverage |
| Power Supply | PoE enabled for flexible installation |
SKU  | Z78 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC |
| Dimensions (W x H) | (Ø x H): 118mm x 96mm (4.6" x 3.8") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7" Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| Minimum Scene Illumination | Color: 0.01 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Privacy Zone | 4 configurable regions |
| S/N Ratio | 75Â dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2DÂ +Â 3DÂ DNR |
| Angle of View | Horizontal: 108.6°, Vertical: 62.7° |
| IR Distance | 30m/98.42ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
