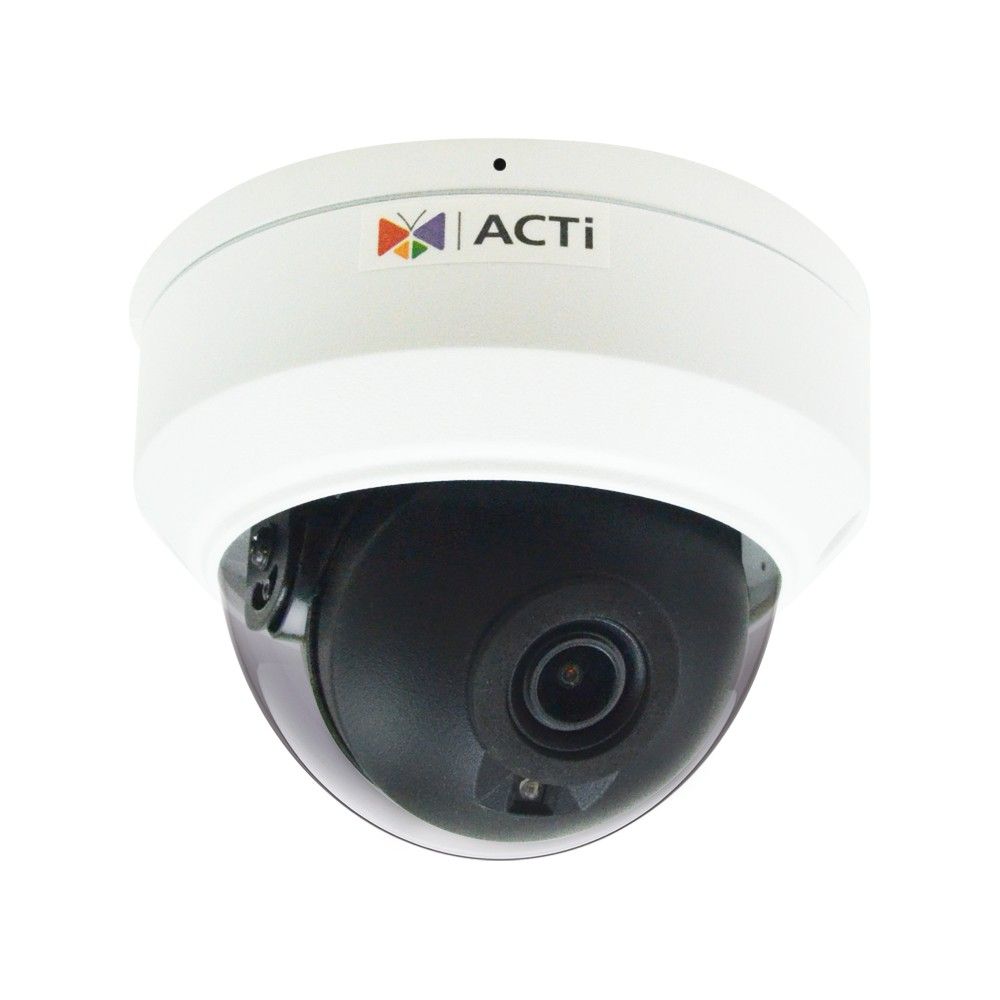

ACTi Z714 8 Megapixel Network IR Outdoor Dome Camera with 2.8mm Lens
SKU
Z714
Model No
Z714
$562.95
Product Highlights
- 8 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f2.8mm/F1.6
- Superior WDR
- H.265 Compression
Speak to an expert
The Z714 from ACTi is a cutting-edge 8-megapixel outdoor mini dome camera designed for high-performance surveillance in various lighting conditions. With its advanced features such as Day/Night functionality, superior Wide Dynamic Range (WDR), and built-in analytics, it offers exceptional image quality and reliability. Its compact design and high-resolution capabilities make it ideal for outdoor settings, providing clear and detailed footage no matter the time of day.
ACTi Z714 - Camera Features
- 8 Megapixel: Captures incredibly detailed images, ensuring high-quality surveillance for effective monitoring.
- Day & Night with Superior Low Light Sensitivity: Equipped with adaptive IR LEDs, it performs well in low-light conditions for 24/7 monitoring.
- Fixed Lens with f2.8mm/F1.6: Offers a wide field of view (99°), perfect for covering large areas with fewer cameras.
- Superior WDR: Balances lighting in complex scenes to ensure clear images in both bright and dark areas.
- H.265 Compression: Reduces bandwidth and storage requirements without compromising image quality, making it efficient for long-term use.
- Wide Angle: The camera's lens design delivers expansive coverage, minimizing blind spots in outdoor environments.
- Built-in Analytics: Provides advanced functions like motion detection and object counting, enhancing security protocols.
ACTi Z714 - Detailed Camera Specifications
| Camera Type | 8 Megapixel Outdoor Mini Dome |
| Lens | Fixed 2.8mm/F1.6 |
| Resolution | 1440p at 30fps |
| Day/Night Feature | Adaptive IR LED with superior low light sensitivity |
| WDR | Superior Wide Dynamic Range |
| Compression Format | H.265/H.264 |
| DNR | 2D+3D Dynamic Noise Reduction |
| Power Supply | PoE/DC 12V |
| Weather Resistance | IP67 Rating |
| Impact Resistance | IK10 Rating |
| Storage | MicroSD compatible |
| Microphone | Built-in |
SKU  | Z714 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 109mm x 83mm (4.3" x 3.3") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7" Progressive Scan CMOS |
| IR LEDs | 1 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.005 lux at F1.6 (AGC on); B/W: 0 (IR LED on) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | 4.5 W (PoE) |
| Privacy Zone | 4 configurable regions |
| Protocols | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, TLS 1.2 |
| S/N Ratio | 56 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle: 99°, Vertical Viewing Angle: 55.3° |
| IR Distance | 40m/131ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
