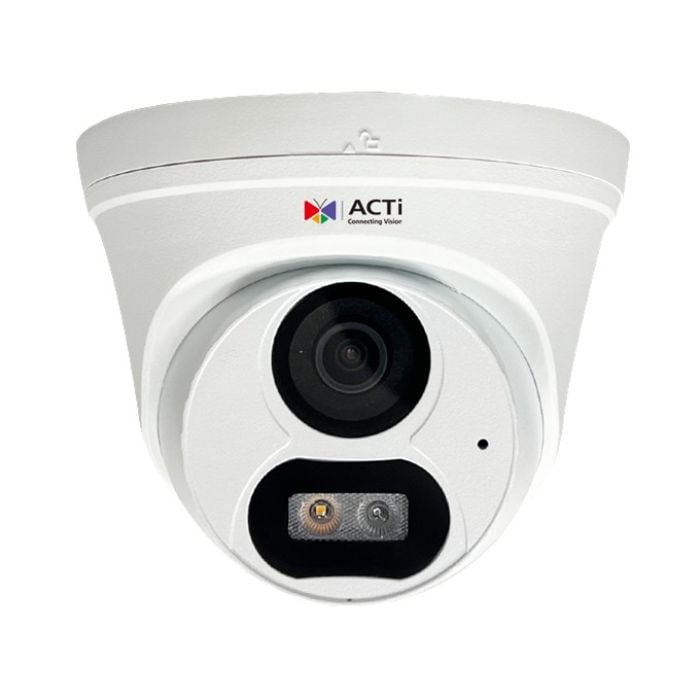

ACTi Z511 4 Megapixel Network IP Outdoor Deep Learning AI Turret Camera with 2.8mm Lens
SKU
Z511
Model No
Z511
$521.00
Product Highlights
- 4 Megapixel, f2.8mm, Fixed Turret
- Deep Learning AI, ColorGuard
- IR LED 50m, Superior WDR (120 dB)
- White LED 50m, Smart Dual Light, Color Min. Illumination 0.001 lux
- Smart Motion Detection
Speak to an expert
The ACTi Z511 4 Megapixel Network IP Outdoor Deep Learning AI Turret Camera is a state-of-the-art surveillance solution that leverages advanced technology for top-notch monitoring. With its impressive 4 Megapixel resolution and intelligent features like Deep Learning AI and Smart Motion Detection, this camera ensures high-quality images and reliable performance day and night, making it an ideal choice for safeguarding your property.
ACTi Z511 Camera Highlights
- Resolution: 4 Megapixel, f2.8mm, Fixed Turret - Captures crystal-clear images with fine detail for enhanced security monitoring.
- AI Technology: Deep Learning AI, ColorGuard - Utilizes advanced algorithms to improve detection accuracy and reduce false alarms.
- Night Vision: IR LED 50m, Superior WDR (120 dB) - Provides exceptional visibility in low light conditions, ensuring reliable performance at night.
- Lighting Capabilities: White LED 50m, Smart Dual Light, Color Min. Illumination 0.001 lux - Enhances night-time color imagery and allows for clear monitoring in complete darkness.
- Detection: Smart Motion Detection - Offers intelligent motion detection that minimizes false alerts and focuses on actual activity.
ACTi Z511 Detailed Specifications
| Camera Type | IP Turret |
| Resolution | 4 Megapixel |
| Lens | 2.8mm |
| Night Vision | IR LED 50m, White LED 50m |
| Wide Dynamic Range | 120 dB Superior WDR |
| Color Minimum Illumination | 0.001 Lux |
| Smart Features | Deep Learning AI, Smart Motion Detection |
SKU  | Z511 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 117.8mm x 100.3mm (4.6" x 3.9") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7" Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.001 lux at F1.6 (AGC on); B/W: 0 lux (Light on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 3.9 W (PoE) |
| Protocols | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, IGMP, ICMP, ARP, UPnP, SNMP, SSL/TLS, TLS 1.2, QoS, NFS |
| S/N Ratio | 75 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 100.7°, Vertical Viewing Angle 51.5° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
