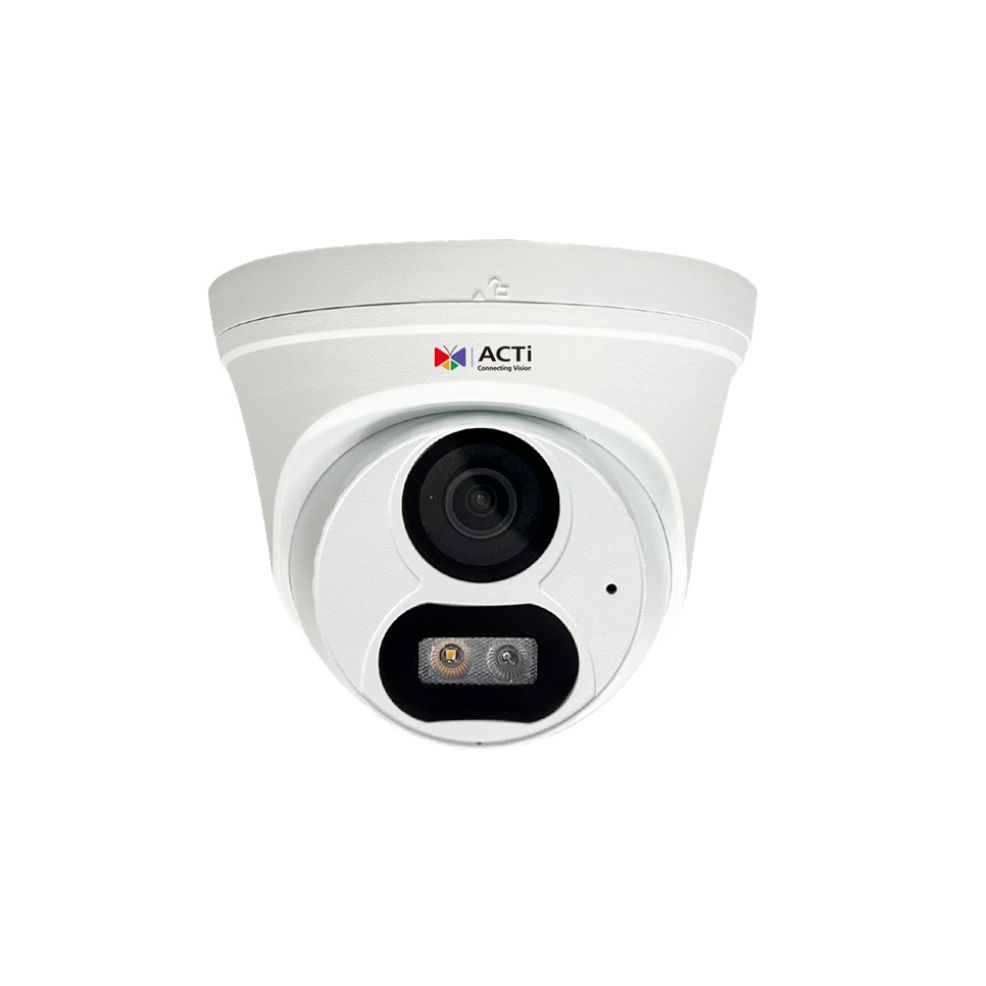

ACTi Z510 2 Megapixel Network IP Deep Learning AI Outdoor Turret Camera with 2.8mm Lens
SKU
Z510
Model No
Z510
$286.20
Product Highlights
- 2 Megapixel, f2.8mm, Fixed Turret
- Deep Learning AI
- IR LED 50m, Superior WDR (120 dB)
- White LED 50m, Smart Dual Light, Color Min. Illumination 0.003 lux
- Smart Motion Detection
Speak to an expert
The ACTi Z510 is a compact outdoor turret camera that brings Deep Learning AI and Smart Dual Light full-color technology into a low-profile, vandal-resistant turret form factor — ideal for discreet outdoor installations on walls and overhangs.
Features
- 2 Megapixel, f2.8mm, Fixed Turret
- Deep Learning AI
- IR LED 50m, Superior WDR (120 dB)
- White LED 50m, Smart Dual Light, Color Min. Illumination 0.003 lux
- Smart Motion Detection
- DORI (46.7 / 18.7 / 9.3 / 4.7m)
- Weatherproof (IP68), UL Listed
SKU  | Z510 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, H.265 |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 117.8mm x 100.3mm (4.6" x 3.9") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (Light on) |
| Operating Humidity | ≤85% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 3.9 W (PoE) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, IGMP, ICMP, ARP, UPnP, QoS, SSL, TLS 1.2, SNMP |
| S/N Ratio | 75 dB |
| Weatherproof | IP68 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 92.6° Vertical Viewing Angle 51.1° |
| Rotation Angle | 0°-360° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
