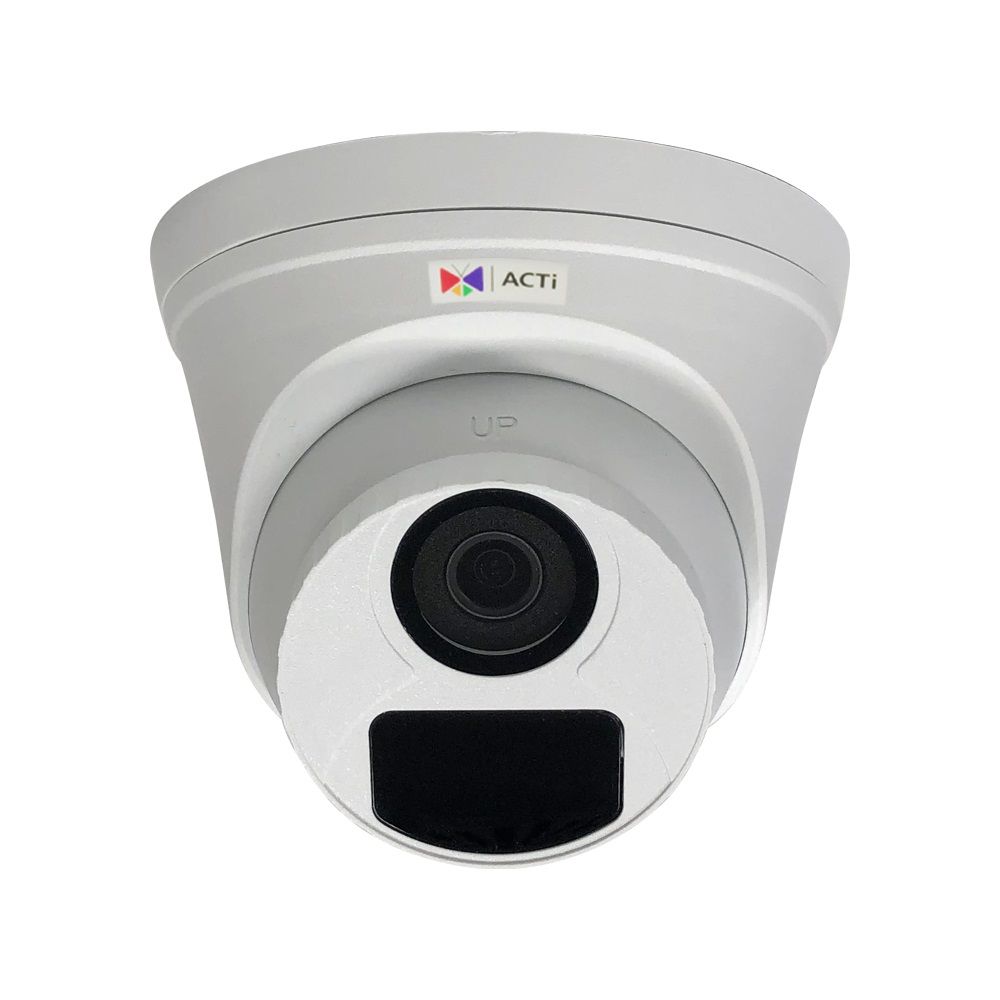

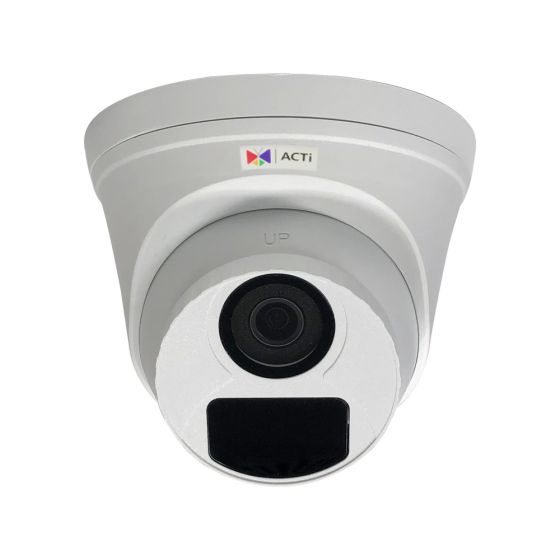

ACTi Y71 2 Megapixel Outdoor Analog Dome Camera with 2.8mm Lens
Model No
Y31
$103.95
Product Highlights
- 2 Megapixel
- Fixed Lens with f2.8mm/F2.0
- Extreme WDR
- Wide Angle
Speak to an expert
The Y71 from ACTi is a 2 megapixel outdoor analog dome camera that delivers high-quality images with its 2.8mm lens, making it ideal for surveillance in various environments. With advanced features like Extreme WDR and a wide-angle view, this camera ensures clear visibility even in challenging lighting conditions.
ACTi Y71 Camera Features
- 2 Megapixel: Provides high-resolution images, ensuring details are captured clearly for reliable surveillance.
- Fixed Lens with f2.8mm/F2.0: The 2.8mm fixed lens offers a suitable field of view for monitoring wide areas, perfect for outdoor security applications.
- Extreme WDR: The Wide Dynamic Range technology delivers clear images even in harsh lighting, enhancing visibility in both bright and dark areas.
- Wide Angle: The wide-angle capability allows for larger monitoring areas with fewer cameras needed, maximizing coverage and efficiency.
ACTi Y71 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Model | ACTi Y71 |
| Resolution | 2 Megapixel |
| Lens Type | Fixed Lens |
| Lens Focal Length | 2.8mm/F2.0 |
| WDR Technology | Extreme WDR |
| Field of View | Wide Angle |
| Outdoor Use | Yes |
SKU  | Y71 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
| Image Device | 1/3" Progressive Scan CMOS |
| IR Distance | 30m/98.42ft |
| Minimum Scene Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤90% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Dimensions (W x H) | (Ø x H): 118mm x 96mm (4.65" x 3.78") |
| Video Output | 1 x BNC connector, supports TVI/AHD/CVI/CVBS |
| Weatherproof | IP67 |
| Digital Noise Reduction | DNR |
| Angle of View | Horizontal: 90.5°, Vertical: 49.6° |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
