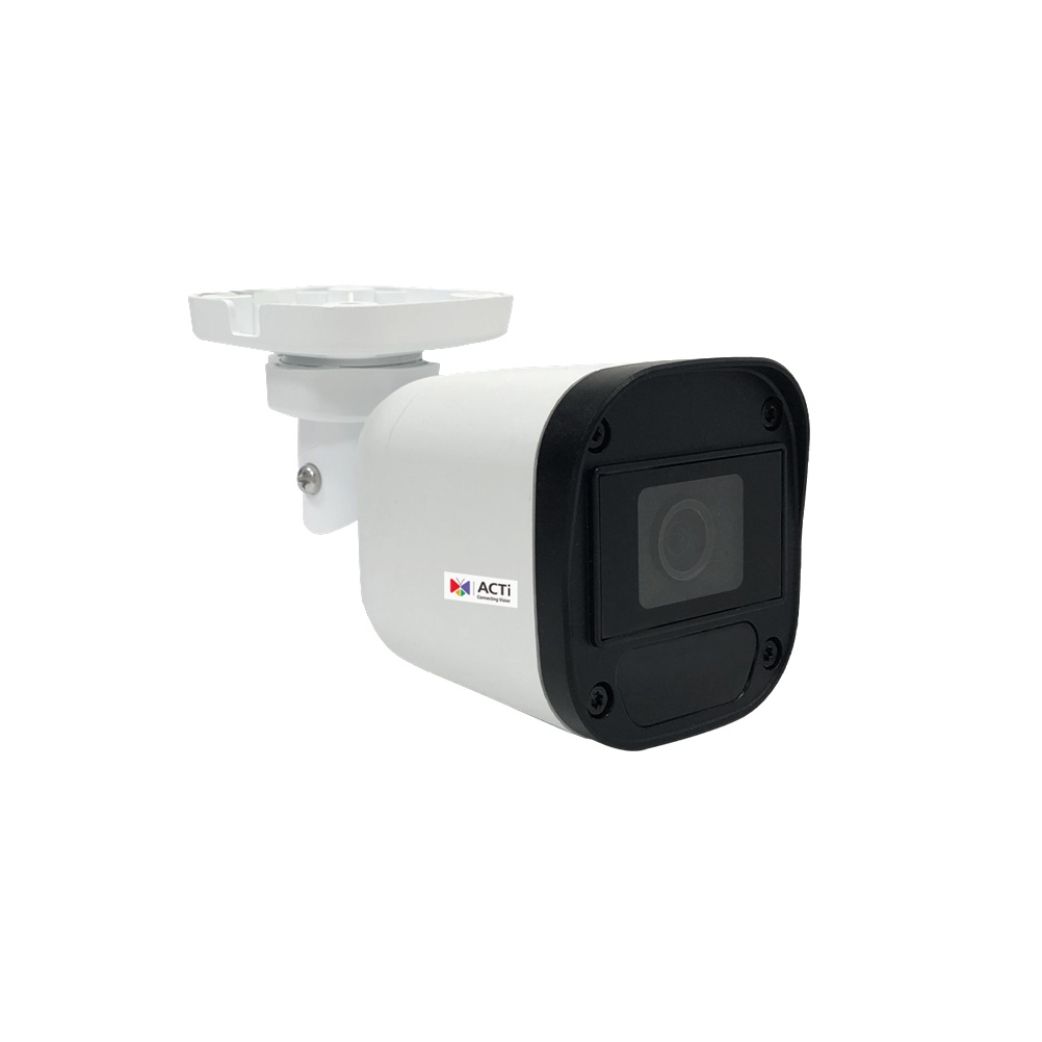

ACTi Y35 2 Megapixel Analog Bullet Camera with 2.8mm Lens
Model No
Y35
$135.00
Product Highlights
- 2 Megapixel, f2.8mm, Analog Bullet
- IR LED 30m, Extreme WDR (130 dB)
- Weatherproof (IP67)
Speak to an expert
The ACTi Y35 is a cost-effective 2MP analog bullet camera designed for installations requiring high-definition video output over existing analog coaxial cabling infrastructure. It delivers reliable day and night performance in a weatherproof housing.
Features
- 2 Megapixel, f2.8mm, Analog Bullet
- IR LED 30m, Extreme WDR (130 dB)
- Weatherproof (IP67)
SKU  | Y35 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Analog, HD-AHD, HD-CVI, HD-TVI |
| Resolution | 2 Megapixel |
| Sensor Option | 1/3" CMOS |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Infrared Distance | 61~100 Feet |
| Durability | Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
| Image Device | 1/3 " Progressive Scan CMOS |
| IR Distance | 30m/98ft |
| Minimum Scene Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤90% RH, non-condensing |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Dimensions (W x H) | (L x W x H): 142mm x 63mm x 65mm (5.59" x 2.48" x 2.56") |
| Power Consumption | 2 W (DC) |
| Video Output | 1 x BNC connector, TVI/AHD/CVI/CVBS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 90.5° Vertical Viewing Angle 49.6° |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
