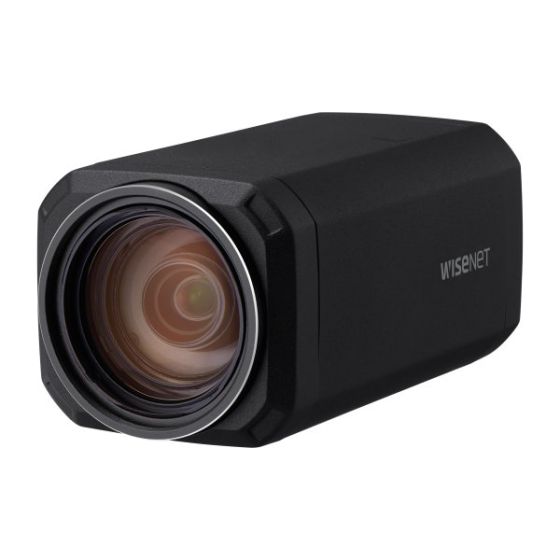

Hanwha Vision XNZ-L6320A 2 Megapixel Indoor Box Camera with 4.44-142.6mm Lens
SKU
XNZ-L6320A
Model No
XNZ-L6320A
$899.95
Product Highlights
- 2 Megapixel (1920 x 1080) resolution
- 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom
- 60fps@all resolutions (H.265 / H.264)
- H.265, H.264, MJPEG Codec, Multiple streaming
- Day & Night (ICR), WDR (120dB), Defog
Speak to an expert
2 Megapixel Indoor Box Camera with 4.44-142.6mm Lens
- The XNZ-L6320A from Hanwha Vision is a high-performance 2 megapixel indoor box camera designed for versatile surveillance applications. With its powerful 4.44-142.6mm lens, this camera offers exceptional zoom capabilities and delivers sharp, clear images even in challenging lighting conditions.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Flickerless
Mirror
Motion Detection
ONVIF
Privacy Masking
Camera Features
| Maximum 2MP (1920 x 1080) resolution | Day & Night (ICR), WDR (120dB), Defog |
| 4.44 ~ 142.6mm Optical 32x zoom, Digital 32x zoom | Video & Audio Analytics |
| Maximum 60fps@all resolutions (H.265 / H.264) | PoE, 12VDC, Micro SD/SDHC/SDXC 1slot 256GB |
| H.265, H.264, MJPEG Codec, Multiple streaming |
Additional Hanwha Vision Products
SKU  | XNZ-L6320A |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 4.44-142.6mm |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | OFF/ LOW/ MID/ HIGH |
| Dimensions (W x H) | 72x63.9 x 135.4mm (2.83x2.52x5.33") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Image Device | 1/2.8" 2MP CMOS |
| Minimum Scene Illumination | Color: 0.05Lux (1/30sec, F1.6) B/W: 0.005Lux (1/30sec, F1.6) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -10°C ~ +55°C(-14°F ~ +131°F) |
| Power Consumption | PoE: Max 7.5W, Typ 5.0W 12VDC: Max 5.7W, Typ 3.7W |
| Privacy Zone | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Zoom Ratio | 32X |
| Digital Noise Reduction | SSNRâ…¤ |
| Angle of View | H: 64.66°(Wide)~2.29°(Tele) / V: 38.08°(Wide)~1.30°(Tele) |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
