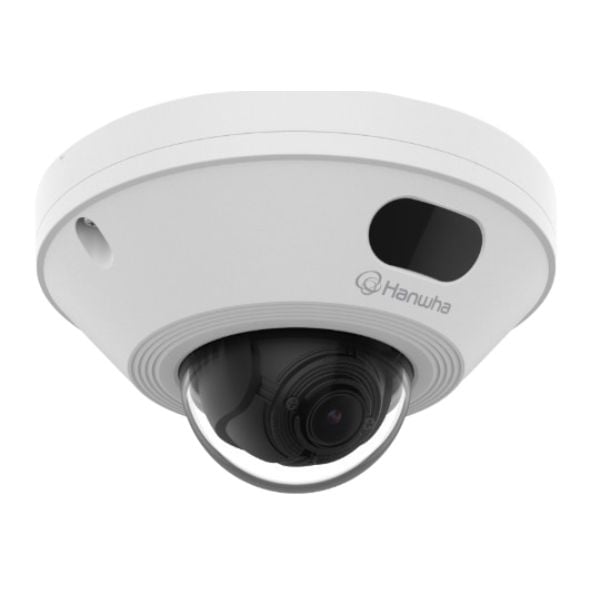

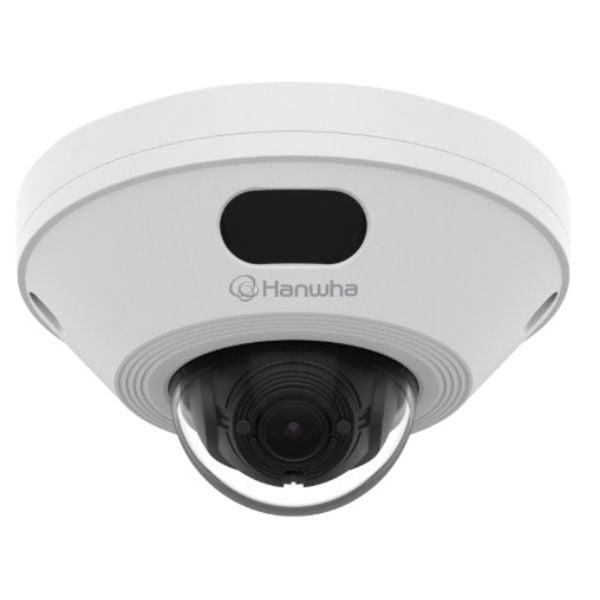

Hanwha Vision XNV-A6016R 2 Megapixel Network IR Compact Outdoor AI Vandal Dome Camera with 3mm Lens
- Compact size (ø120x65.5mm) for easy installation and discreet design
- Analytics events, Business Intelligence based on AI engine
- DPM(Dynamic Privacy Masking) for privacy protection
Powered by WN9, Outdoor Network AI IR Dome Compact Camera, 2MP resolution @ 60FPS, 3mm fixed lens, FoV (H:108°, V:59°), H.265/H.264/MJPEG codec, IR viewable length 25m (82ft), USB-C port for easy installation, Day & Night (ICR), extremeWDR (150dB), Hard-coated dome bubble, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine (Motion & Object detection, Line crossing, IVA area, Slip & Fall), Classified object types (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: Type/Color), BestShot, Analytics events (Defocus, Motion, Tampering, Audio), AI-based business intelligence (People/Vehicle/Crowd counting, Queue management, Heatmap), Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66, NEMA4X, IK10, Operating temperature: -40°C~+55°C(-40°F~+131°F), Power: PoE, Metal shielded RJ-45. OnCloud Compatible.
Features
- Compact size (ø120x65.5mm) for easy installation and discreet design
- Analytics events, Business Intelligence based on AI engine
- DPM(Dynamic Privacy Masking) for privacy protection
SKU  | XNV-A6016R |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | ø120x65.5mm(ø4.72x2.58") |
| Electronic Shutter | 2~1/30,000sec |
| Image Device | 1/2.8" CMOS |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | Color(1/30sec, 30IRE): 0.027, BW(1/30sec, 30IRE): 0.0027 |
| Operating Humidity | 0~100% RH(condensing) |
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) |
| Privacy Zone | Max. 6.6W, typical 4.8W |
| S/N Ratio | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM, SMTP(StartTLS), Syslog |
| Zoom Ratio | IP66 |
| Mirror | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Rotation Angle | BLC, HLC, WDR, SSDR |
| Motion Detection Tracking | Flip, Mirror, Hallway view(90°/270°) |
| IR Distance | 25m/82.02ft |
| Audio | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Heater & Fan | Yes |
| Intelligent Infrared | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
