Hanwha Vision XNV-8040R 5 Megapixel Outdoor Vandal-Resistant Network IR Dome Camera, 7mm Lens

Name: Hanwha Vision XNV-8040R 5 Megapixel Outdoor Vandal-Resistant Network IR Dome Camera, 7mm Lens
Brand: Hanwha Vision
SKU: XNV-8040R
Price: 579.00 USD
Availability: InStock

SKU

XNV-8040R

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Hanwha Vision XNV-8040R 5 Megapixel Outdoor Vandal-Resistant Network IR Dome Camera, 7mm Lens XNV-8040R by Hanwha Vision

Model No

XNV-8040R

$579.00

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Max. 5 megapixel (2560 x 1920) resolution
Max. 30fps@all resolutions (H.265/H.264)
H.265, H.264, MJPEG codec supported, Multiple streaming
Day & Night (ICR), WDR (120dB), Defog
Motion detection, Handover

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

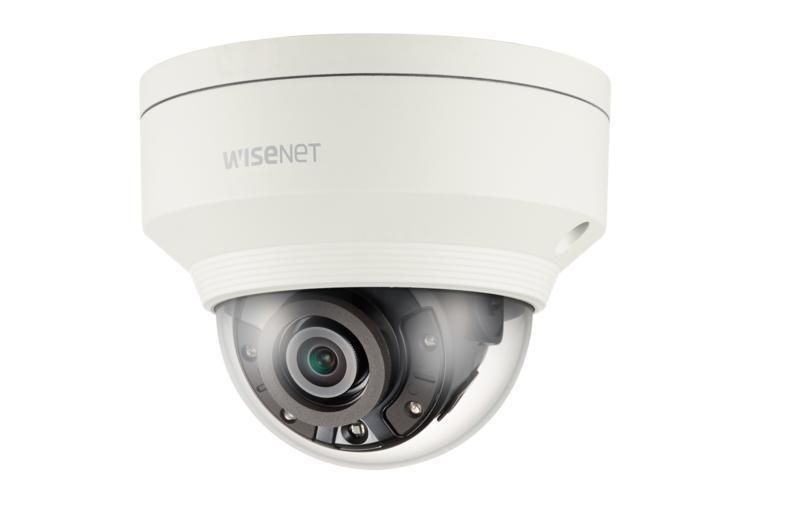

5 Megapixel Outdoor Vandal-Resistant Network IR Dome Camera, 7mm Lens

The XNV-8040R from Hanwha Vision is a cutting-edge 5 megapixel outdoor vandal-resistant network IR dome camera that offers high-resolution imaging and advanced features for enhanced security monitoring. With its durable construction and intelligent analytics, it ensures reliable performance in various environments.

Camera Functions

Audio

Auto Gain Control

Auto White Balance

BLC

Day/Night Vision

3D DNR

Mirror

Motion Detection

On Screen Display Menu

Onvif

Privacy Masking

Vandal Resistant

Weather Resistant

WDR

Camera Features


Built-in 7mm fixed lens	Motion detection, Handover
Max. 30fps@all resolutions (H.265/H.264)	Hallway view, WiseStreamII support
Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering	IR viewable length 30m, IP67/IP66, IK10

Specifications

SKU	XNV-8040R
Features	Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer	Hanwha Vision
NDAA	Compliant
Camera Signal	Network IP
Connection Type	Wired
Infrared Distance	61~100 Feet
Resolution	5 Megapixel
Lens Type	Fixed
Lens Size	7mm
Mount Type	Ceiling, Wall
Compression Method	H.265
Durability	Vandal Resistant, Weather Resistant
Voltage	PoE
Automatic Gain Control (AGC)	Off / Low / Middle / High
Dimensions (W x H)	Ø120.0 x 97.5mm (Ø4.72" x 3.84")
Electronic Shutter	Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Image Device	1/1.8" 6M CMOS
Image Pixels Total	3,096(H) x 2,094(V)
Image Pixels-Effective	2,616(H) x 1,976(V)
Minimum Scene Illumination	Color : 0.16Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
Operating Humidity	Less than 90% RH
Operating Temperature	-30°C ~ +55°C (-22°F ~ +131°F)
OSD Menu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Power Consumption	Max. 8W (12VDC), Max. 9W (PoE)
Privacy Zone	Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Protocols	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
S/N Ratio	50dB
Scanning System	Progressive scan
Video Output	CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation
Weatherproof	IP67, IP66
Digital Noise Reduction	SSNRV (2D+3D noise filter) (Off / On)
Mirror	Off / On, Hallway view : 90˚/270˚
Angle of View	H : 50.7˚ / V : 37.8˚ / D : 63.8˚
Rotation Angle	0° ~ 355°
Motion Detection Tracking	Off / On (8ea, 8point polygonal zones), Handover
Back Light Compensation	Off / BLC / HLC (Masking / Dimming), WDR
Automatic White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
IR Distance	30m/98.42 ft
Audio	Yes
Auto Gain Control	Yes
Day/Night	Yes
Digital Noise Reduction	Yes
Automatic White Balance	Yes
Back Light Compensation	Yes
Motion Detection Tracking	Yes
On Screen Display Menu	Yes
Privacy Masking	Yes
Wide Dynamic Range	Yes
Mirror	Yes
ONVIF	Yes
