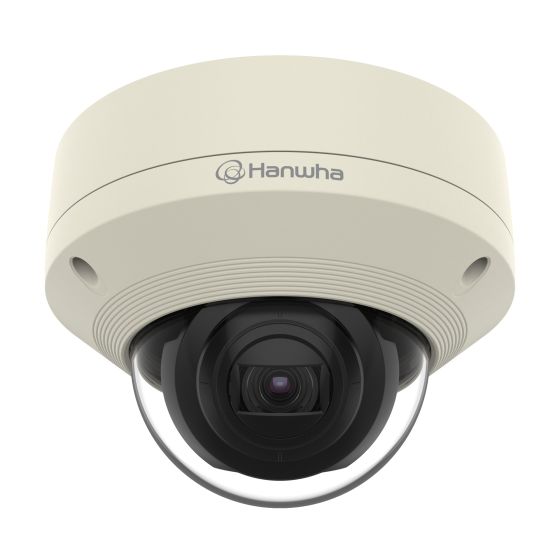

Hanwha Vision XNV-6080-KUS 2 Megapixel Network IP Dome Camera with 2.8-12mm Lens, TAA Compliant
SKU
XNV-6080-KUS
Model No
XNV-6080-KUS
$615.09
Product Highlights
- 2 megapixel (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
Speak to an expert
2 Megapixel Network IP Dome Camera with 2.8-12mm Lens, TAA Compliant
- Discover the Hanwha Vision WiseNet X XNV-6080-KUS, a network surveillance camera designed for performance in outdoor environments. Engineered to operate in conditions, this camera withstands temperatures ranging from -40°C to 55°C and humidity levels up to 90%, certified by IK10, IP66, IP67, and NEMA Type 4X standards for its robustness against weather and impact.
Featuring a motorized zoom lens with auto iris control, the XNV-6080-KUS captures wide-angle views to detailed close-ups without sacrificing image clarity, thanks to its 1/2.8" CMOS sensor that delivers 1920 x 1080 resolution at a smooth 60 fps. Advanced imaging technologies, including Wide Dynamic Range and Hanwha Vision Super Noise Reduction, ensure high video quality in any lighting.
Beyond its physical capabilities, the XNV-6080-KUS is equipped with intelligent features such as motion and face detection, defog, and tamper-detection, enhancing its security potential. Two-way audio support and compatibility with a wide range of network protocols and video formats make it a versatile choice for comprehensive surveillance solutions.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Facial Recognition
Camera Features
| 2 megapixel (1920 x 1080) resolution | Motion detection, Handover |
| 2.8 ~ 12mm (4.3x) motorized varifocal lens | SD/SDHC/SDXC memory slot (Max. 512GB) |
| Max. 60fps@all resolutions (H.265/H.264) | Hallway view, WiseStream II support, IP67/IP66, NEMA 4X, IK10 |
| H.265, H.264, MJPEG codec supported, multiple streaming | LDC support (Lens Distortion Correction) |
| Day & Night (ICR), WDR (150dB), Defog | PoE / 24V AC, 12V DC, Bi-directional audio support |
| Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Tampering |
Additional Hanwha Vision Products
SKU  | XNV-6080-KUS |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | Ø160xH118.5mm (Ø6.3x4.67") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Image Device | 1/2.8" 2MP CMOS |
| Image Pixels-Effective | 1945(H)x1109(V) |
| Minimum Scene Illumination | Color: 0.015 lux(F1.4, 1./30sec) B/W: 0.015 lux(F1.4, 1./30sec) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -40°C ~ +55°C(-40°F ~ +131°F) |
| Power Consumption | PoE: Max 7.8W 12VDC: Max 7W 24VAC: Max 8.2W |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP(Unicast) |
| Weatherproof | IP66/IP67 , IK10 |
| Digital Noise Reduction | SSNRⅤ |
| Angle of View | H: 119.5°(Wide)~27.9°(Tele), V: 62.8°(Wide)~15.7°(Tele), T: 142.1°(Wide)~32.0°(Tele) |
| Rotation Angle | 0°~355° |
| Motion Detection Tracking | 8ea, 8point polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
