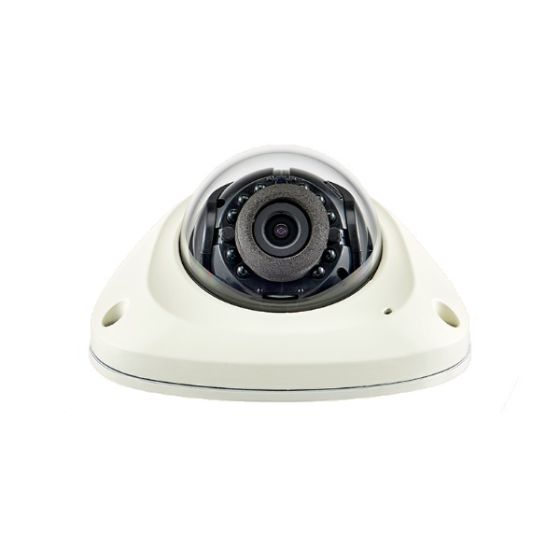

Hanwha Vision XNV-6022R 2 Megapixel Network IR Outdoor Corner/Wedge Camera, 3.6mm Lens
SKU
XNV-6022R
Model No
XNV-6022R
$469.50
Product Highlights
- Max. 2Megapixel (1920 x 1080) resolution
- Built-in 3.6mm fixed lens
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (150dB)
- IR viewable length 15m, IP66, IK10, NEMA4X
Speak to an expert
2 Megapixel Network IR Outdoor Corner/Wedge Camera, 3.6mm Lens
- The XNV-6022R from Hanwha Vision is a versatile 2 megapixel network outdoor corner/wedge camera equipped with a 3.6mm lens, designed for superior surveillance in diverse environments. Its high-resolution imaging, advanced detection capabilities, and robust weatherproofing make it an ideal choice for security professionals seeking reliable performance and exceptional image quality.
Camera Functions
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
On Screen Display Menu
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
Camera Features
| Max. 2Megapixel (1920 x 1080) resolution | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter/Exit, (Dis) Appear, Audio detection, Face detection, Digital auto tracking, Sound classification |
| Max. 60fps@all resolutions (H.265 / H.264) | Motion detection, Handover |
| [email protected] (Color), 0Lux (B/W: IR LED On) | SD/SDHC/SDCX memory slot (Max. 256GB) |
| Built-in 3.6mm fixed lens | IR viewable length 15m, IP66, IK10, NEMA4X |
| H.265, H.264, MJPEG codec supported, Multiple streaming | Hallway view, PoE, LDC support |
| Day & Night (ICR), WDR (150dB) |
Additional Hanwha Vision Products
SKU  | XNV-6022R |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Automatic Gain Control (AGC) | Off / Low / Middle / High |
| Dimensions (W x H) | 98.9 x 52.0 x 100.0mm (3.89" x 2.05" x 3.94") |
| Electronic Shutter | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Image Device | 1/2.8" 2M CMOS |
| Image Pixels Total | 1,945(H) x 1,109(V) 2.16M |
| Minimum Scene Illumination | Color : 0.04Lux (F2.0), B/W : 0Lux (IR LED On) |
| Operating Humidity | Less than 90% RH |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) |
| OSD Menu | Off / On (32ea, polygonal zones) |
| Power Consumption | Max. 6.7W |
| Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
| S/N Ratio | 50dB |
| Scanning System | Progressive Scan |
| Weatherproof | IP66 |
| Digital Noise Reduction | SSNRV (2D + 3D noise filter) (Off / On) |
| Mirror | Off / On, Hallway view : 90Ëš/270Ëš |
| Angle of View | H : 94.8° / V : 49.3° / D : 114.3° |
| Back Light Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Automatic White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| IR Distance | 15m/49.21ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
