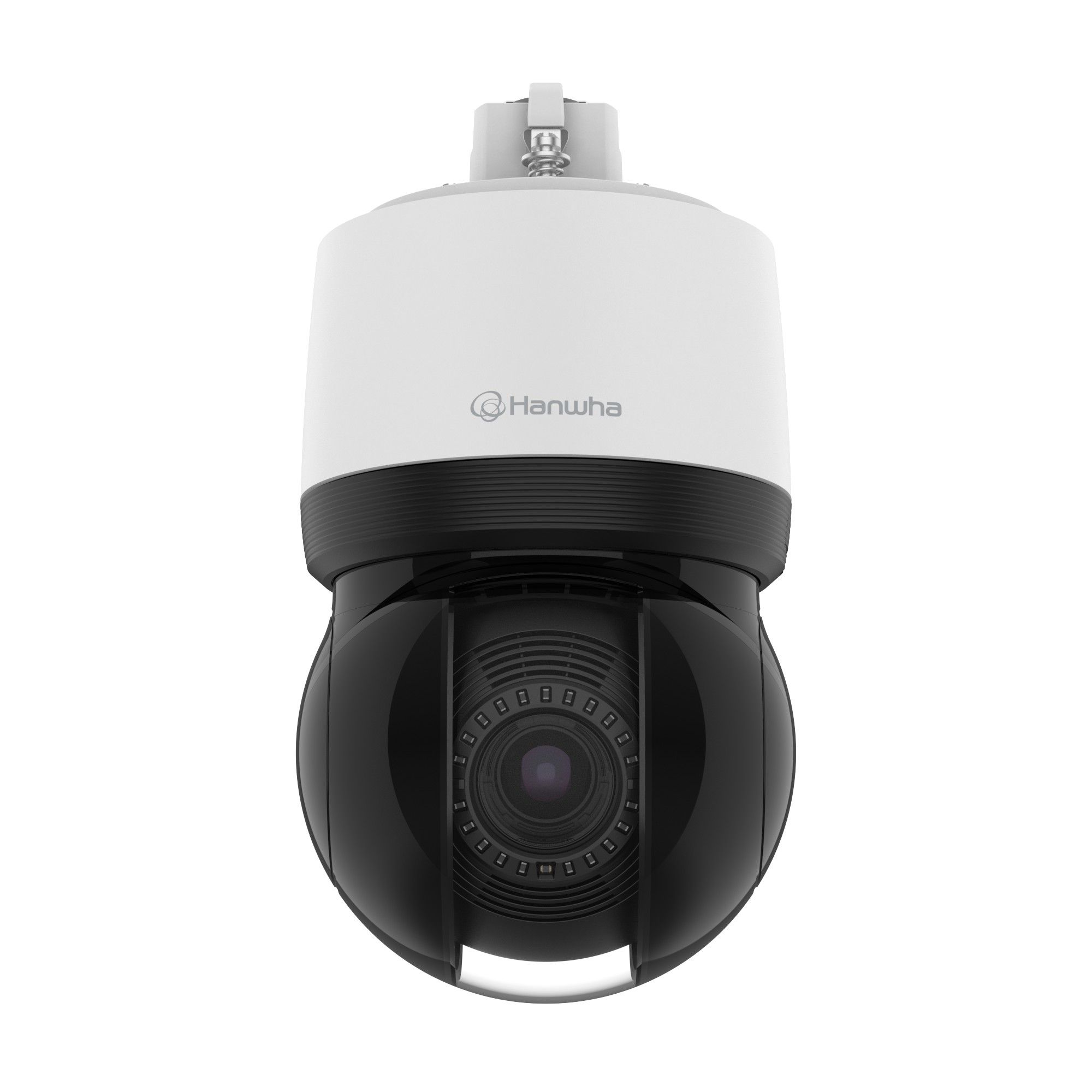

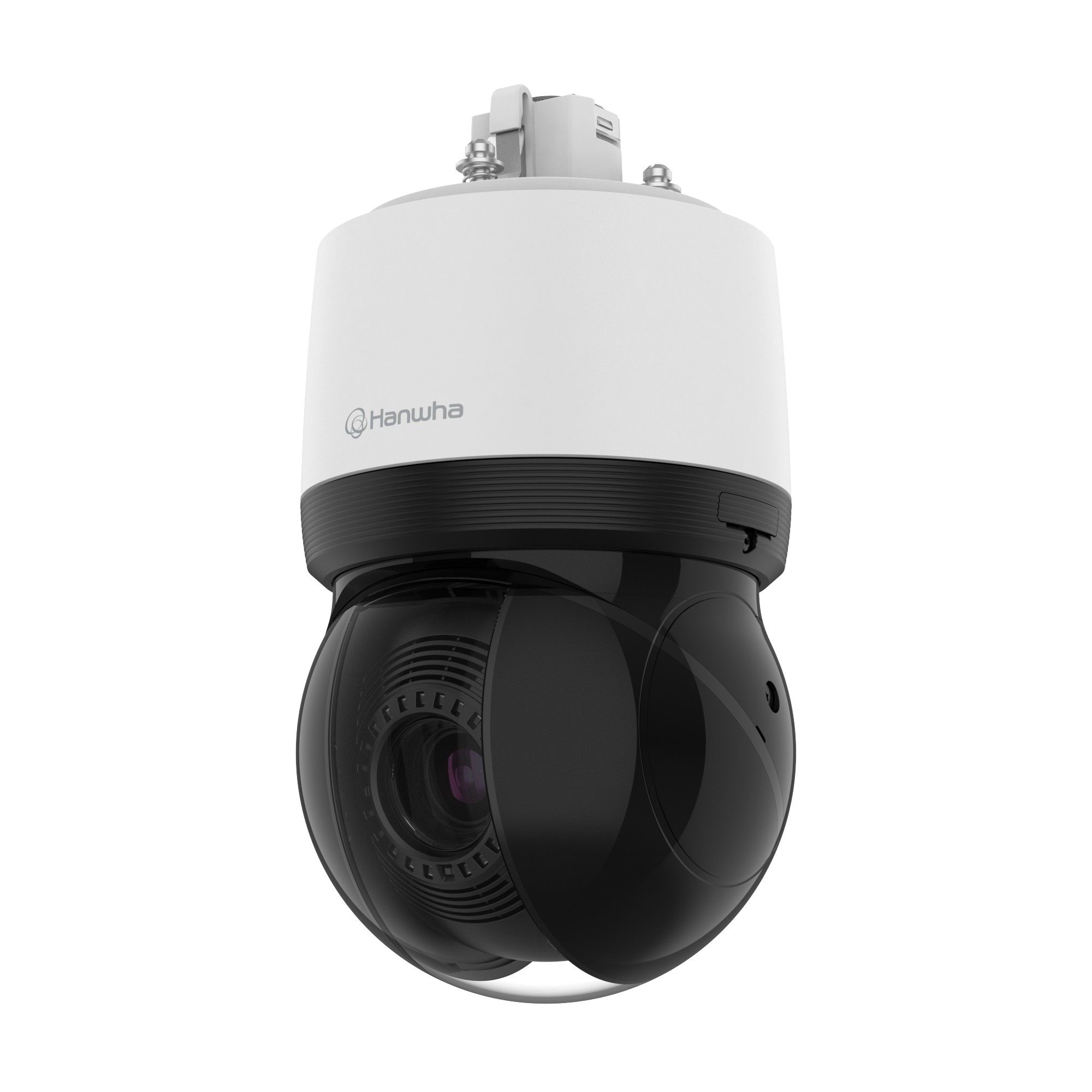

Hanwha Vision XNP-C9253-KDO 4K Network IP AI PTZ Plus Camera with 25X Lens
SKU
XNP-C9253-KDO
Model No
XNP-C9253-KDO
$4,500.00
Product Highlights
- CloudConnector Compatible – Connects easily with HealthPro, OnCloud
- 4K resolution
- 25X optical zoom 5mm ~ 125mm
- -20° tilt look-up capability to see above the horizon
- Spin dry for water removal
Speak to an expert
4K Network IP AI PTZ Plus Camera with 25X Lens
- Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.
Camera Functions
Audio
Auto Gain Control
Auto White Balance
BLC
Day/Night Vision
3D DNR
Mirror
Motion Detection
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
WDR
4K Resolution
Facial Recognition
Camera Features
| CloudConnector Compatible - Connects easily with HealthPro, OnCloud | AI-based Object Auto tracking (Person, Vehicle) , target lock tracking, Intelligent video analytics |
| 4K resolution | Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate) , IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion) , Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box) , Object auto-tracking (Person/Vehicle) , Target lock track |
| 25X optical zoom 5mm ~ 125mm | Ture D/N |
| -20° tilt look-up capability to see above the horizon | Dual SD card slots |
| Spin dry for water removal | DIS with Built-in Gyro sensor |
| 360° endless pan | PoE+ |
| Triple codec H.265/H.264/MJPEG | IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock) |
| WiseStream III technology | Optional SPM-4210 Network I/O box for alarm & audio I/O |
| Extreme WDR | Operating Temperature -40°C~+55°C (-40°F ~ +131°F) |
| Azimuth display (Cardinal & intermediate directions) | TPM 2.0 with FIPS 140-2 level 2 |
AI PTZ Plus Surveillance Cameras | Intelligent. Focused. Efficient.
Hanwha Vision's AI PTZ Plus cameras provide AI-based object detection and auto-tracking with advanced analytics. Trigger events, while reducing false alarms. Identify people, faces, vehicles, license plates, and more.
Additional Hanwha Vision Products
SKU  | XNP-C9253-KDO |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range, 4K Resolution, Facial Recognition |
| Manufacturer | Hanwha Vision |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 25X |
| Mount Type | Pendant |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Automatic Gain Control (AGC) | Off, Max gain, Manual |
| Dimensions (W x H) | ø158x293.3mm(6.22x11.55") |
| Electronic Shutter | 2~1/12,000sec |
| Image Device | 1/2.8" CMOS |
| Minimum Scene Illumination | Color: 0.1Lux(F1.6, 1/30sec) BW: 0.01Lux(F1.6, 1/30sec) |
| Operating Humidity | 0~100% RH(condensing) |
| Operating Temperature | -40°C~+55°C(-40°F~+131°F) |
| Power Consumption | Typical 24W, Max 25.5W |
| Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT |
| Weatherproof | IP66, IK10 |
| Zoom Ratio | 25x |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Angle of View | H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele) |
| Motion Detection Tracking | 8ea, 8point Polygonal zones |
| Back Light Compensation | BLC, HLC, WDR, SSDR |
| Automatic White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
